Wire Feeder MIG Welder Single Phase Input Power Constant Voltage MIG Welder DC Output CSA Approval

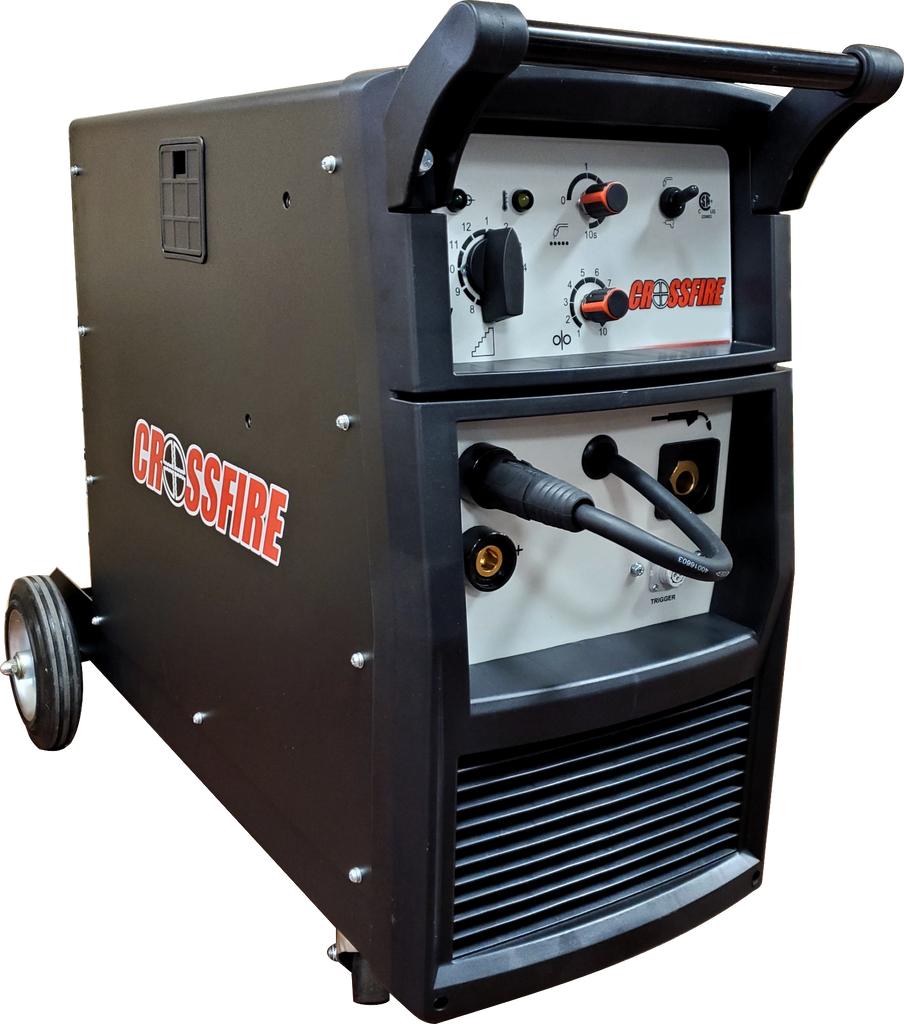

HG252A MIG Welder

  • Sale
  • Regular price


Best in class and built to last. Designed for outstanding arc performance and unequaled reliability, the Crossfire 252A comes ready to tackle your most demanding MIG welding requirements. The stepped voltage output design delivers a very precise, driving arc that many professional welders truly prefer. It is capable of running .024 thru .045 solid and flux core wires. A heavy duty 4 drive roll wire feed system assures many hours of smooth, tangle free feeding performance. If you are looking for a serious welding machine and exceptional value, look no further than the CROSSFIRE HG 252A MIG WELDER.

Need Consumables?

CLICK HERE

Features

  • Heavy Duty 4 Drive Roll Feeder System
  • Power light Indicator
  • 12 Step Voltage Switch
  • Spot/Stitch Weld Control
  • Spoolgun Switch ON/OFF
  • Thermal Overload
  • Welds From 22 Gauge to 3/8”
  • MIG (GMAW)
  • Flux Cored (FCAW)
  • Burn-back Control

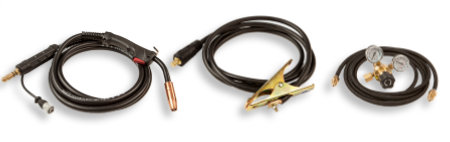

Accessories Include

  • 12 ft. Tregaskiss Style MIG Torch
  • 10 ft. Ground Cable & Clamp
  • Flow Gauge CGA 580
  • 10 ft. Gas Hose
  • Drive Rolls 023-035
  • Running Gear/Cylinder Rack
  • 8 ft. Input Power Cord

Rated Input

Volts
Single Phase
575V
60 Hz

AMPS
30



Part Number

CF-99330

Rated Output



Rated DC Amps
250A/25 V @ 30% Duty Cycle

Range
30-250A
DC

Dimensions

H. 28.3” (718.82 mm) W. 17.7” (449.58 mm) L. 37.4” (949.96 mm)

Weight

Net: 187 lb (84.5 kg)
