Hougen | SKU: 0130101

HMD130 Ultra Low Profile Magnetic Drill

$2,125.95 CAD

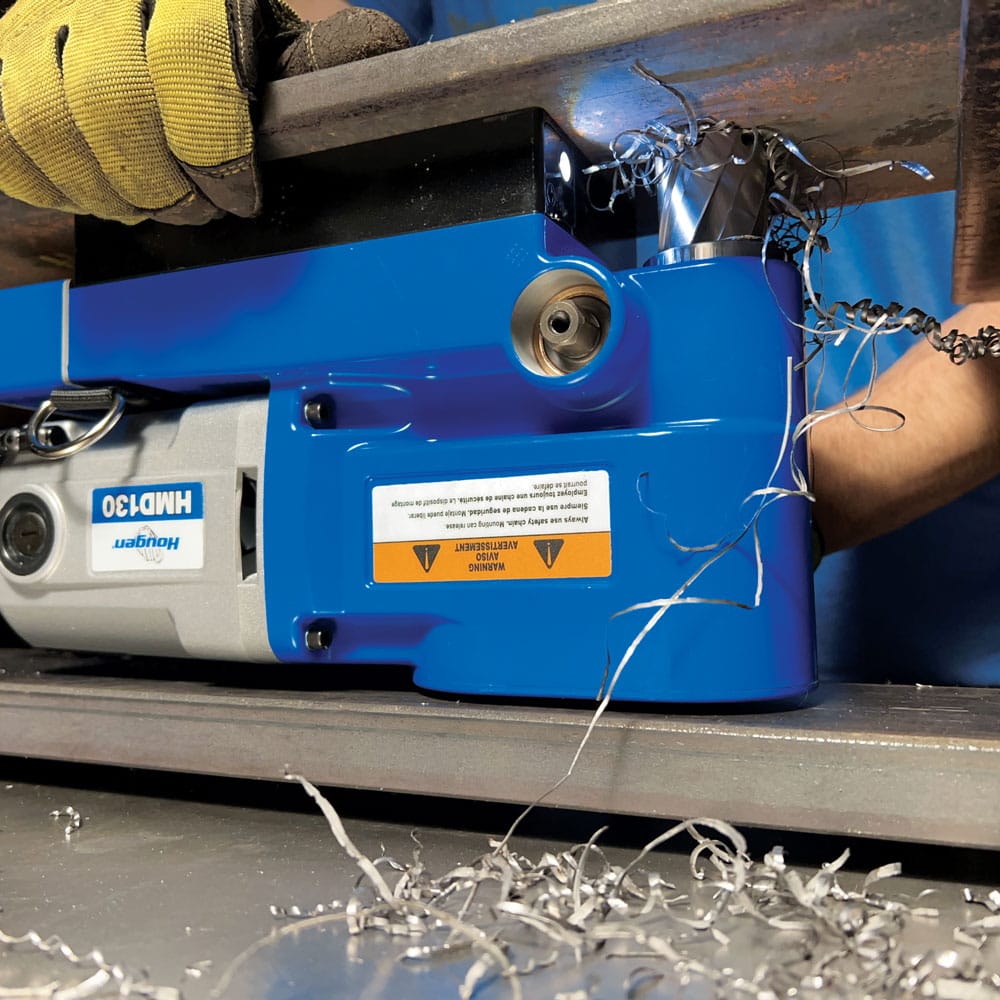

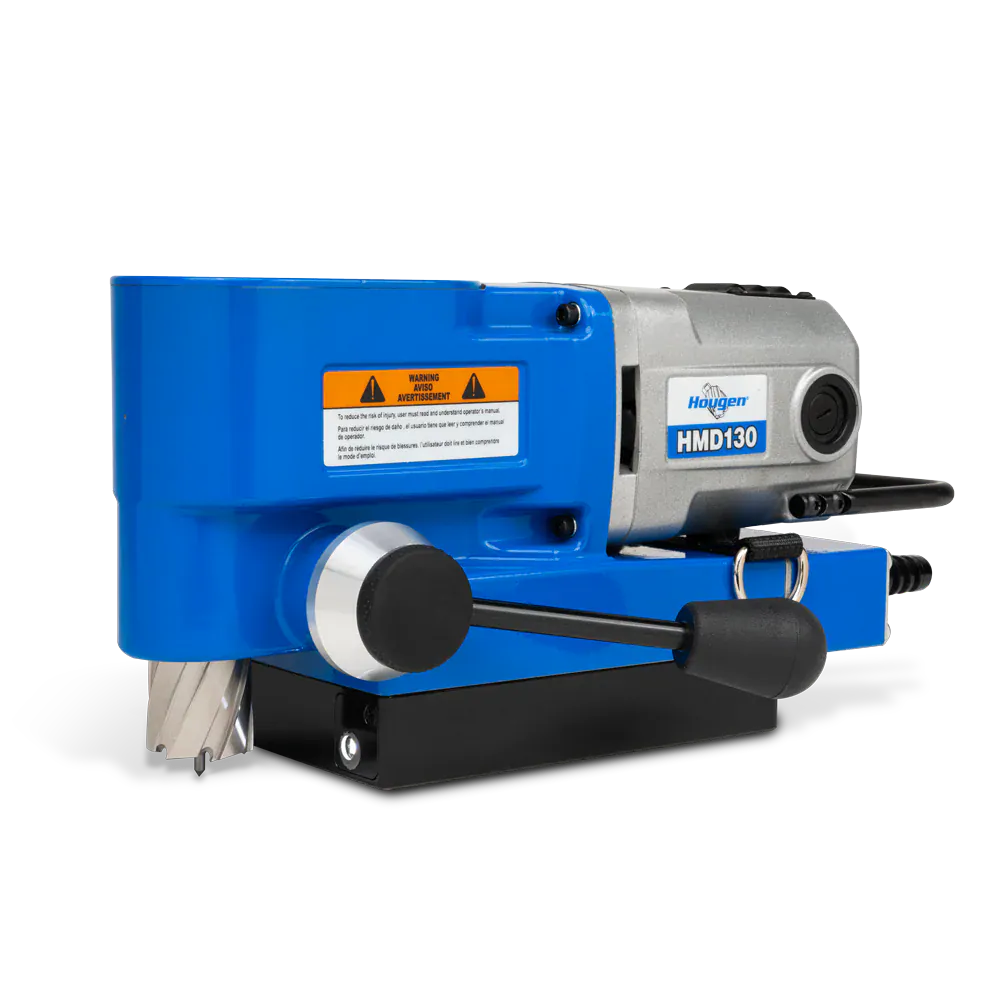

Hougen HMD130 Ultra-Low Profile Magnetic Drill

Dia. Range: 7/16" – 1-3/8" (12mm – 35mm)
Max. Depth: 1"
Cutter Type: RotaLoc Plus™ Annular Cutters
Shank: RotaLoc Plus™ (Push & Turn)
Low-Profile Design for Restricted Clearance Applications

Delivery and Shipping

Standard shipping rates apply.

Description

HMD130 Ultra Low Profile Magnetic Drill

Ultra Low Profile lightweight right angle drill with large capacity.

Lightweight at only 23.8 lbs (10.8kg)
Patented quill feed arbor for smooth cuts and minimal maintenance
Uses RotaLoc Plus™ annular cutters which requires no tools for installation or removal
Pilot light
Positive slug ejection
High torque gearing
Lift detector safety system
Feed handle switches easily from side to side
Ratchet can be used in place of feed handle
Rear mounted controls
Carrying handle
Carrying Case included
Two year warranty

Specifications

Power Supply Voltage

115V, 50/60 Hz - 9A, 1035W
Motor

8A (120V), 4A (240V) 450 RPM
Diameter

7/16"- 1-3/8" (12mm - 35mm)
Depth

1" (25mm)
Cutter

RotaLoc Plus™ Cutters with push & turn style shank
Dimensions

6-15/32" H x 6-3/4" W x 14-11/16" L
Magnet

BASE: 4" W x 9" L (102mm W x 229mm L)
Weight

23.8 lb. (10.8 kg)
Shipping Weight

31.7 lb (14.4 kg)
