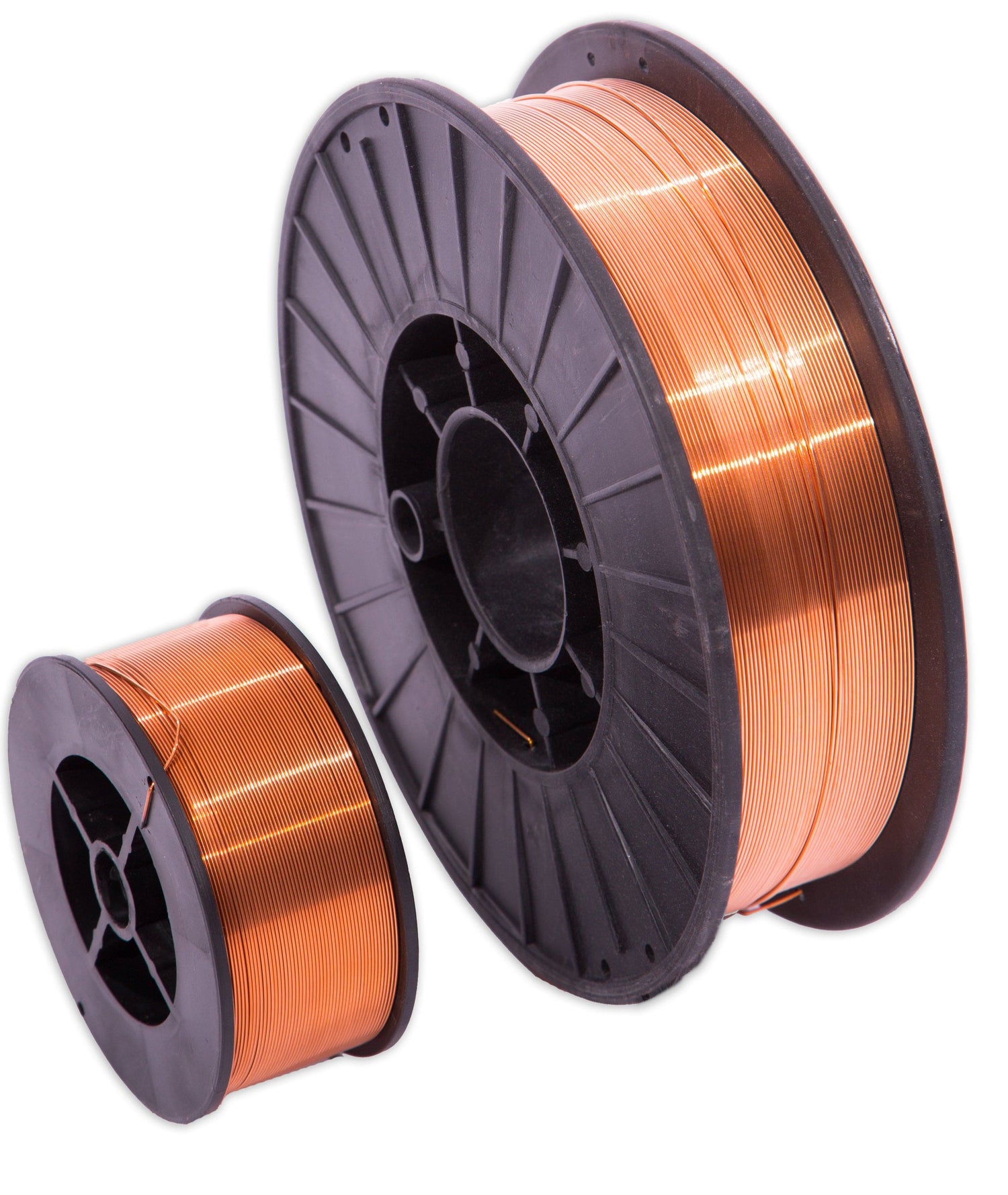

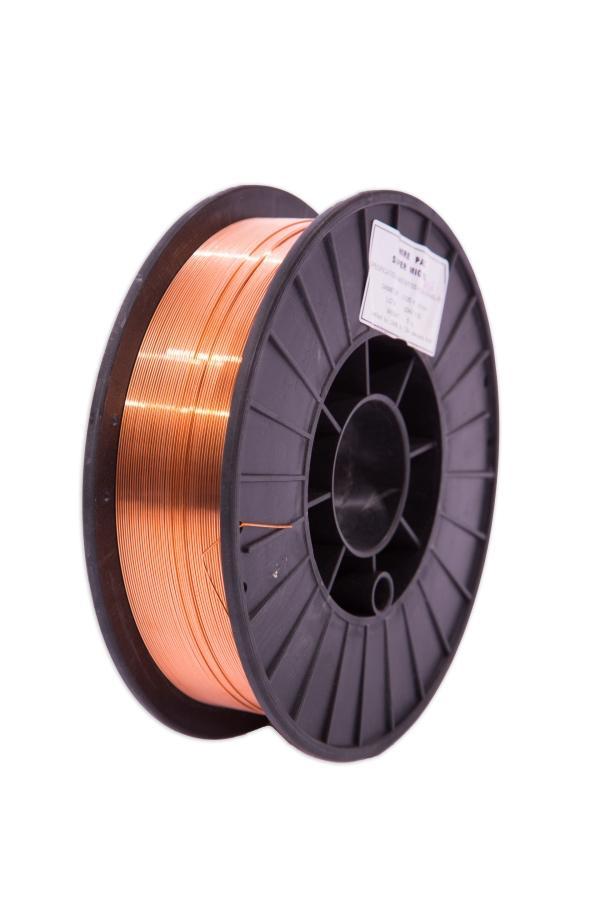

ER 70S-6 Copper Coated Mig Wire (5kg / 11lbs)

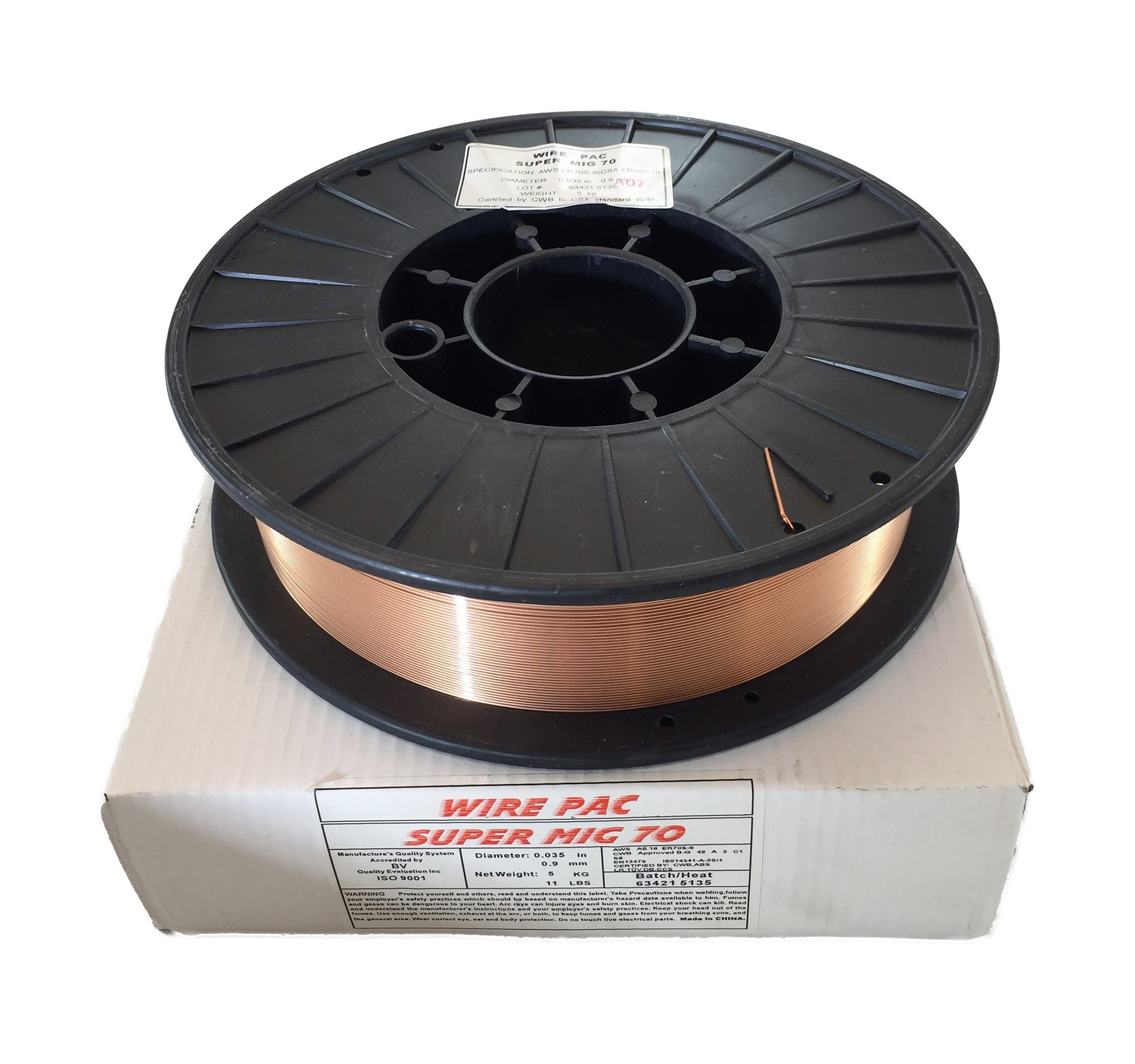

ER70S-6 Copper Coated Mig Wire - 8in. Spool ISO 14341 -A- : 3Si1, DIN 8558 SG2, AWS A5.18 ER70S-6 Super MIG 70 is a premium welding wire containing higher levels of manganese and silicon then other standard grades of MIG wire. These features enable the wire to have excellent wetting ability with high weld deposits and excellent tolerance to rust and scale. Available Sizes: Spools 1kg, 5kg, *20kg, Drums: *250kg, *410kg *Please contact for skid lot pricing. Dia. Available: .023, .030, .035, .040, .045 Approvals AWS 5.18, ASME SFA 5.18 CWB-CSA W48-06 ISO-9002 ABS Quality Evaluations Lloyds Register TUV & DB Typical Chemical Analysis C Mn Si P S Cu 0.07-0.15 1.40-1.85 0.80-1.15 0.025 Max 0.035 Max 0.50 Max Chemical and Mechanical Properties in the Metal Deposited, in accordance with AWS AWS Classification Gas Yield Strength Tensile Strength Elongation % Min. 2" PSI MPA PSI MPA ER70S-6 CO2 68,000 (470) 81,000 (561) 29% 75-25 72,000 (500) 86,000 (590) 27%
