Crossfire Welders | SKU: SM7020-035

ER70S-6 Copper Coated Mig Wire (20kg / 44lbs)

$84.00 CAD

Shipping calculated at checkout.

Size

.035" / 0.9mm .045 / 1.2mm

Product variants

Delivery and Shipping

Standard shipping rates apply, does not qualify for free shipping offers.

Description

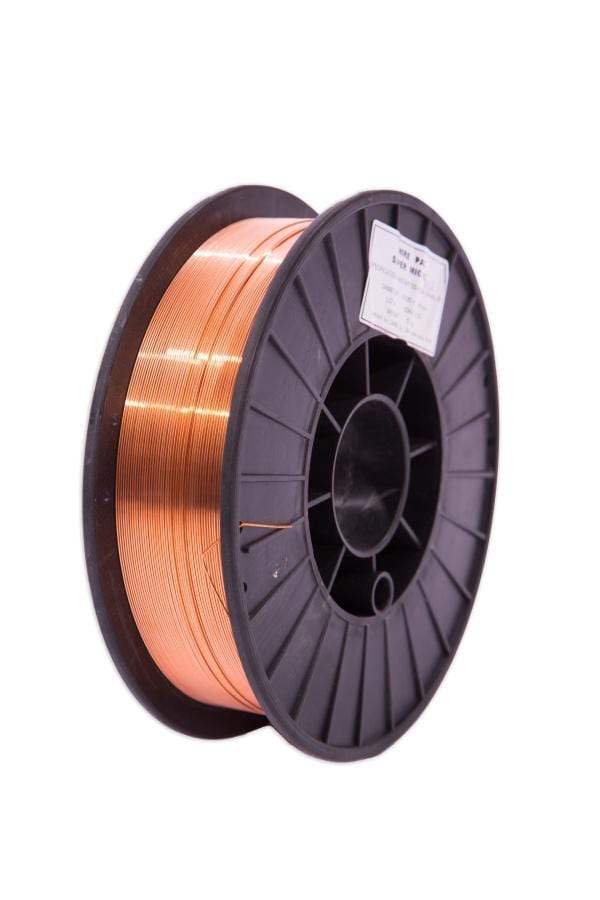

ER70S-6 Copper Coated Mig Wire - 12in. Spool

ISO 14341 -A- : 3Si1, DIN 8558 SG2, AWS A5.18 ER70S-6

Super MIG 70 is a premium welding wire containing higher levels of manganese and silicon then other standard grades of MIG wire. These features enable the wire to have excellent wetting ability with high weld deposits and excellent tolerance to rust and scale.

Available Sizes: Spools 1kg, 5kg, *20kg,

Drums: *250kg, *410kg *Please contact for skid lot pricing.

Dia. Available: .023, .030, .035, .040, .045

Approvals

AWS 5.18, ASME SFA 5.18
CWB-CSA W48-06
ISO-9002
ABS Quality Evaluations
Lloyds Register
TUV & DB

Typical Chemical Analysis
C	Mn	Si	P	S	Cu
0.07-0.15	1.40-1.85	0.80-1.15	0.025 Max	0.035 Max	0.50 Max

Chemical and Mechanical Properties in the Metal Deposited, in accordance with AWS

AWS Classification	Gas	Yield Strength		Tensile Strength		Elongation % Min. 2"
		PSI	MPA	PSI	MPA
ER70S-6	CO2	68,000	(470)	81,000	(561)	29%
	75-25	72,000	(500)	86,000	(590)	27%

Purchasing details

Consumable specifications

Classification: ER70S-6
Material / application: Mild Steel, Carbon Steel
Available diameters: .035" / 0.9mm, .045 / 1.2mm
Package size: 20 kg / 44 lb
