Crossfire ETIG 200HF DC TIG & Stick Welder | Dual Voltage 115/230V
$995.00 CAD
Loading...
Crossfire Welders | SKU:
CF-99220
Crossfire ETIG 200HF DC TIG & Stick Welder | Dual Voltage 115/230V
$995.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Machine snapshot
Full specs ↓
ProcessesDC Stick · DC TIG
Input power115V / 230V · Single Phase
AluminumNo – DC TIG only
Warranty3 Year Limited
Crossfire ETIG 200HF DC TIG & Stick Welder | Dual Voltage 115/230V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
$995.00 CAD
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
Crossfire ETIG 200HF DC TIG & Stick Welder | Dual Voltage 115/230V
$995.00 CAD
Unit price
/
Unavailable
One-click welding setup
Complete the Welding Package
Add the machine and the recommended supporting equipment or consumables together in one click.
5 items ready now
$1,051.55 CAD
Description
Description

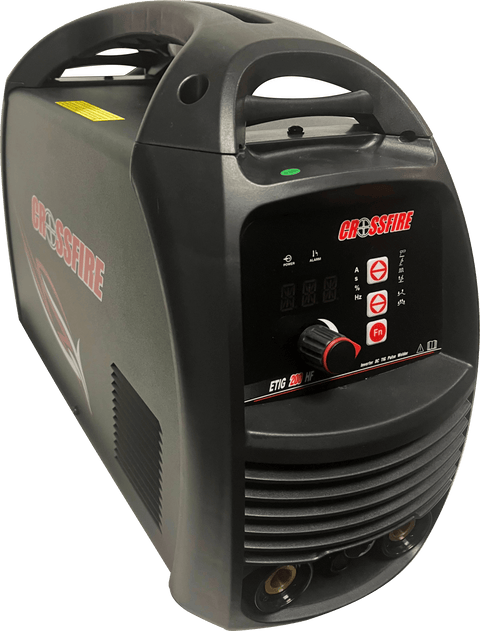

Crossfire ETIG 200HF DC TIG & Stick Welder | Dual Voltage 115/230V
CF-99220
The Crossfire ETIG 200HF is a compact, dual-voltage DC TIG and Stick (SMAW) inverter welder designed for fabrication, repair, maintenance, and mobile welding applications. Combining professional welding performance with exceptional portability, the ETIG 200HF is an excellent choice for welders who need reliable performance both in the shop and in the field.
Operating from either 115V or 230V single-phase power, the ETIG 200HF delivers up to 200 amps of welding power while weighing only 24 lb (10.9 kg). Its High Frequency (HF) TIG start provides smooth, non-contact arc initiation, reducing tungsten contamination and producing cleaner starts for professional-quality welds.
The machine also features infinite amperage adjustment, a digital amperage display, built-in thermal overload protection, and excellent Stick welding performance, making it suitable for everything from light fabrication to repair work and maintenance welding.
Whether you're working with mild steel, stainless steel, or chromoly, the ETIG 200HF delivers dependable DC welding performance in an easy-to-transport package.
Features
- DC TIG (GTAW) welding with High Frequency arc start
- Stick (SMAW) welding capability
- Dual Voltage 115V / 230V operation
- High Frequency (HF) TIG arc initiation
- Infinite amperage adjustment
- Digital amperage display
- Thermal overload protection
- Compact inverter technology
- Lightweight portable design
- Includes 115V/230V adapter plug
- Limited 3-Year Warranty
Package Includes
- ETIG 200HF Power Source
- WP17V TIG Torch
- 8 ft Electrode Holder & Cable
- 10 ft Ground Cable & Clamp
- Foot Pedal
- Gas Regulator / Flow Gauge
- Gas Hose
- 8 ft Power Input Cord
- 115V / 230V Adapter Plug
- Owner's Documentation
| Specification | Value |
|---|---|
| Model | Crossfire ETIG 200HF |
| Part Number | CF-99220 |
| Welding Processes | DC TIG (GTAW) / Stick (SMAW) |
| Input Power | 115/230V Single Phase, 50/60Hz |
| Input Current | 20A @ 120V / 26A @ 230V |
| TIG Output (115V) | 120A @ 25% Duty Cycle |
| TIG Output (230V) | 180A @ 30% Duty Cycle |
| Stick Output (115V) | 120A @ 25% Duty Cycle |
| Stick Output (230V) | 200A @ 30% Duty Cycle |
| TIG Start | High Frequency (HF) |
| Amperage Control | Infinite Adjustment |
| Digital Display | Yes |
| Thermal Overload Protection | Yes |
| Dimensions | 11" W × 20.5" L × 15" H (279 × 525 × 385 mm) |
| Weight | 24 lb (10.9 kg) |
| Warranty | Limited 3-Year |
Need help with the complete welding setup?
Crossfire can help specify more than the machine.
Backed by more than 25 years of welding and application experience through MAP Canada, Crossfire can help with machine selection, process fit, guns, torches, feeders, consumables, filler metal and full equipment changeovers.
