Siegmund | SKU:
2-160630
Siegmund System 16 Professional Screw Clamp 45°/90° – 2-160630
$58.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Siegmund System 16 Professional Screw Clamp 45°/90° – 2-160630 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
$58.00 CAD
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
Siegmund System 16 Professional Screw Clamp 45°/90° – 2-160630
$58.00 CAD
Unit price
/
Unavailable
Description
Description

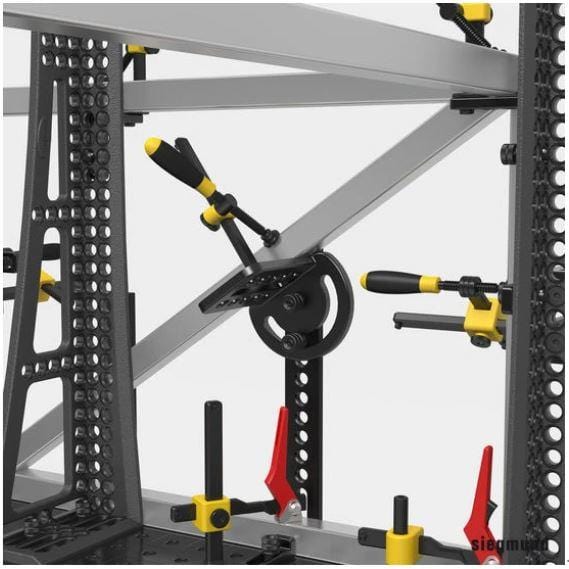

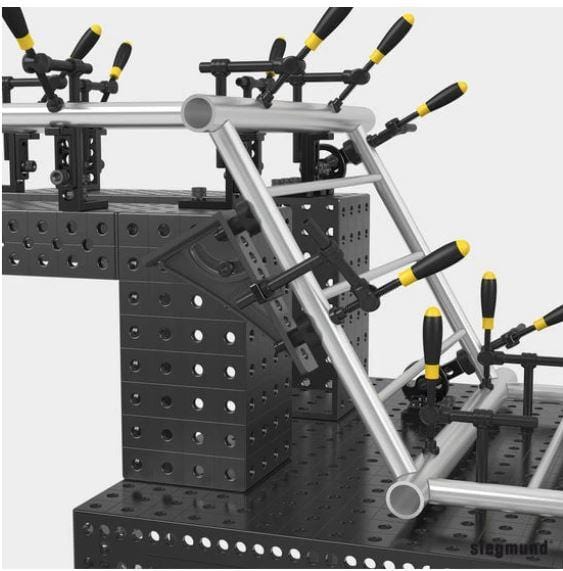

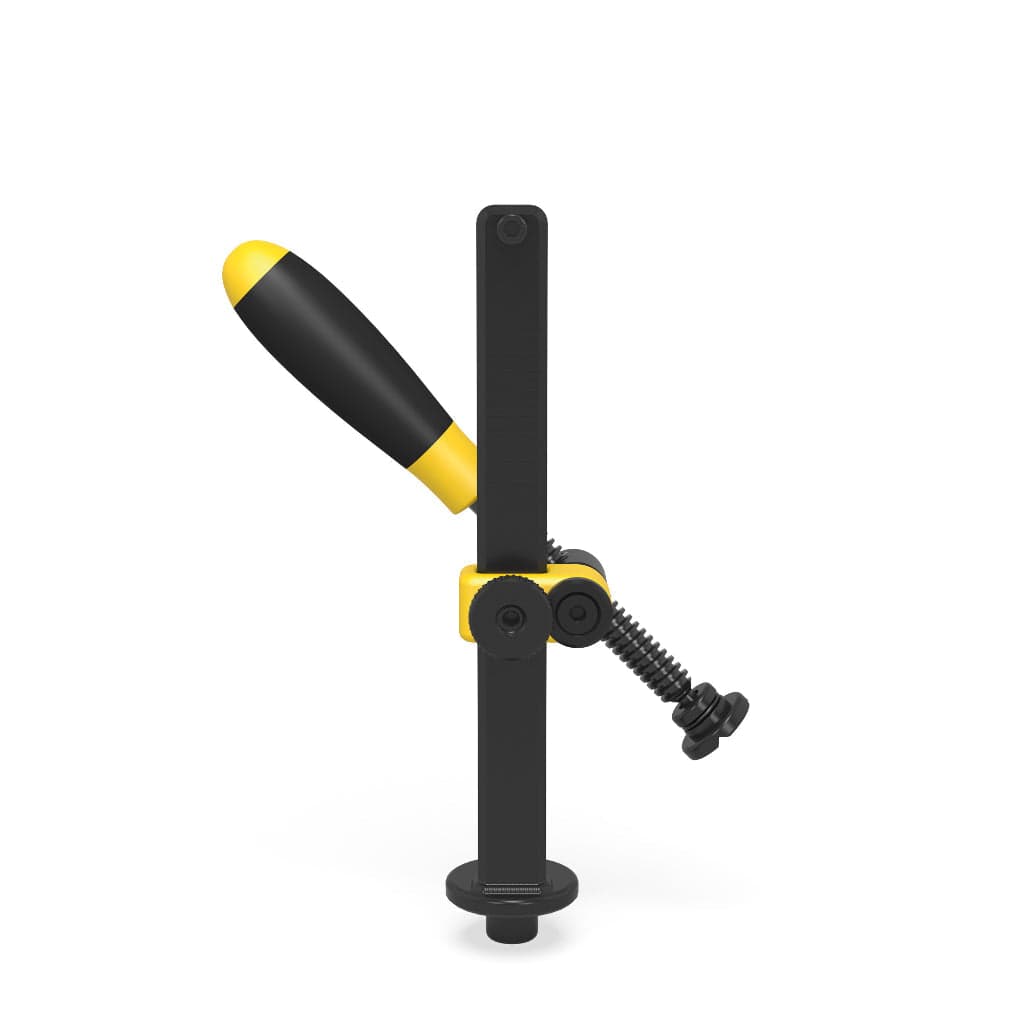

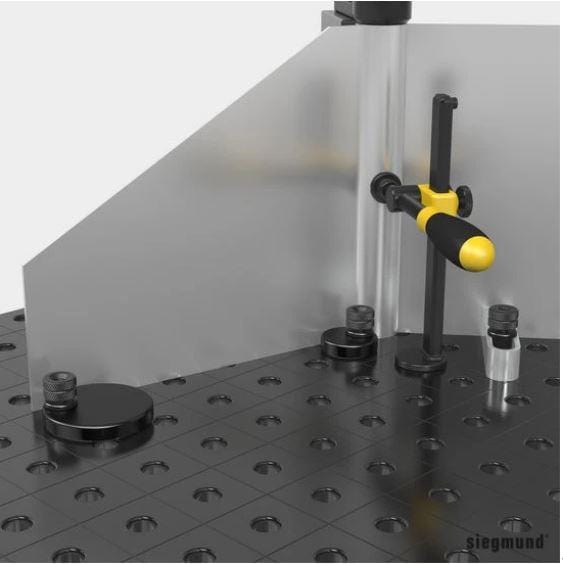

Professional System 16 45°/90° screw clamp with continuous rotational adjustment for angled fixturing.
- Item number: 2-160630
- Height: 200 mm
- Weight: 0.75 kg
- Maximum clamping force: 2.5 kN
- Adjustment range: 0°–360°
- Burnished finish
- Interchangeable prism
- 8 mm spindle ball diameter
- 12 × 3 mm trapezoidal spindle thread
Siegmund system data
Siegmund specifications & compatibility
Use the system and dimensional data below to confirm table and tooling compatibility before ordering.
System 16
Clamp
- Siegmund item no.
- 2-160630
- Height
- 200.0 mm
- Max. clamping force
- 2.5 kN
- Adjustment / angle
- 0°–360°
- Material / finish
- Burnished
- Approx. weight
- 0.75 kg
Compatibility
- Siegmund System 16 tables and tooling
