Siegmund System 16 Professional Fast Tension Clamp – 2-160606
Description
Description

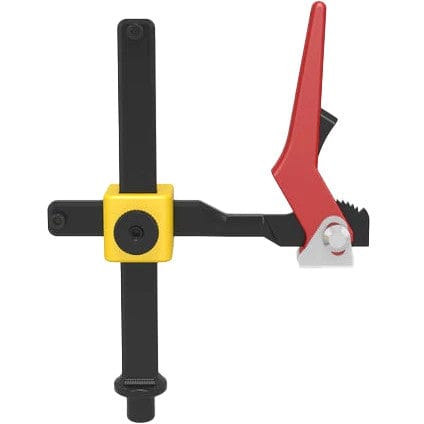

Fast-action professional clamp for production fixturing on Siegmund System 16 tables. The clamping force can be adjusted and the cast-iron cross uses a handwheel for quick height positioning.

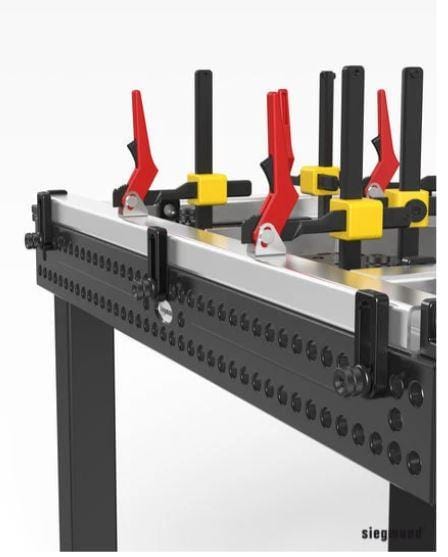

The reinforced vertical bar and fast-tension mechanism make this clamp useful where workpieces are loaded and released repeatedly.
Technical Data
- Item number: 2-160606
- System: 16
- Finish: Burnished
- Width: 132 mm
- Height: 150 mm
- Maximum clamping force: 2.5 kN
- Weight: 0.9 kg
Compatibility Note
Manufacturer guidance recommends this fast-tension clamp for plasma-nitrided System 16 tables.
Siegmund system data
Siegmund specifications & compatibility
Use the system and dimensional data below to confirm table and tooling compatibility before ordering.
- Siegmund item no.
- 2-160606
- Width
- 132.0 mm
- Height
- 150.0 mm
- Max. clamping force
- 2.5 kN
- Material / finish
- Burnished
- Approx. weight
- 0.9 kg
- Siegmund System 16 tables and tooling
