Siegmund | SKU: 2-160610

Siegmund System 16 Professional Screw Clamp – 2-160610

$140.00 CAD

Shipping calculated at checkout.

Delivery and Shipping

Standard shipping rates apply, does not qualify for free shipping offers.

Description

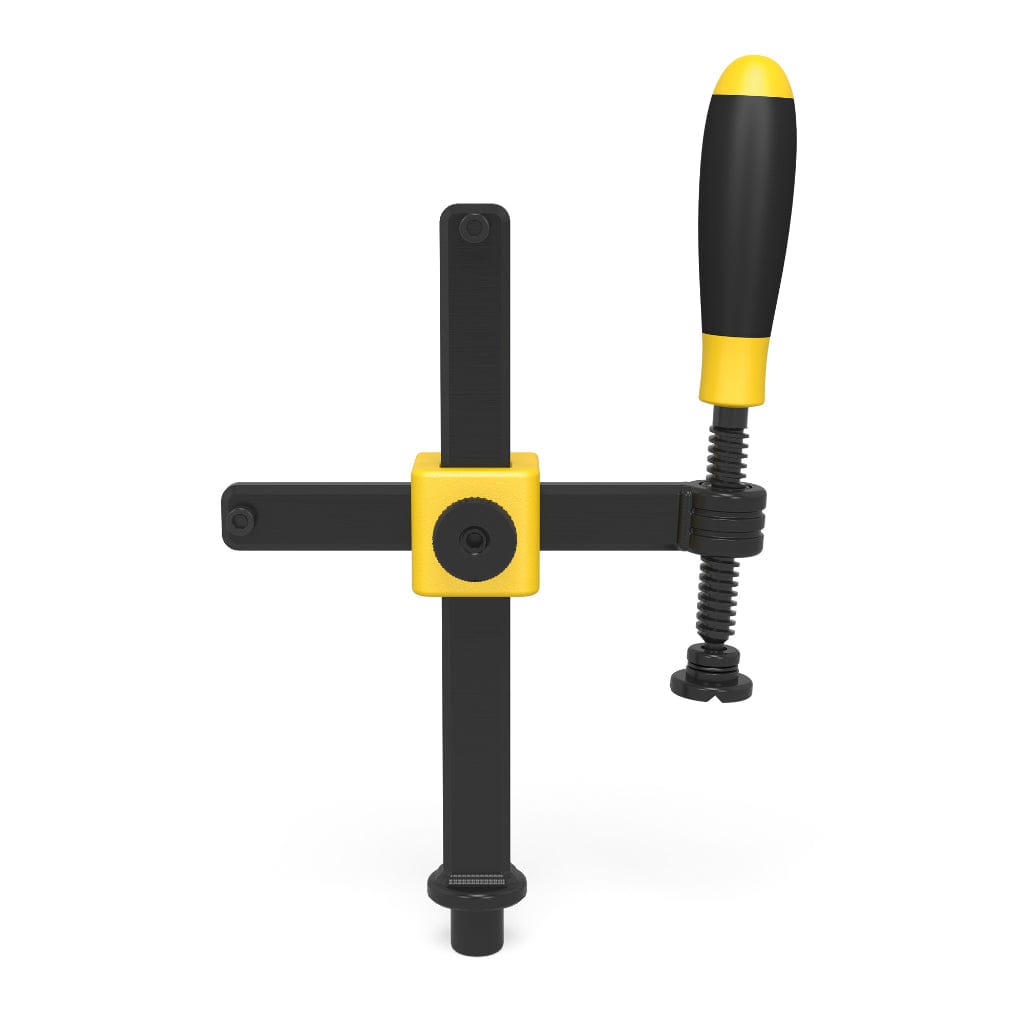

Professional System 16 screw clamp for fast, precise fixturing on 16 mm Siegmund tables.

Item number: 2-160610
Width: 163 mm
Height: 200 mm
Weight: 1.2 kg
Maximum clamping force: 2.5 kN
Burnished / nitrided construction
Reinforced vertical bar
Interchangeable prism
8 mm spindle ball diameter
12 × 3 mm trapezoidal spindle thread

Siegmund system data

Siegmund specifications & compatibility

Use the system and dimensional data below to confirm table and tooling compatibility before ordering.

System 16 Clamp

Siegmund item no.: 2-160610
Width: 163.0 mm
Height: 200.0 mm
Max. clamping force: 2.5 kN
Material / finish: Burnished / nitrided
Approx. weight: 1.2 kg

Compatibility

Siegmund System 16 tables and tooling
