Siegmund | SKU:
2-160601

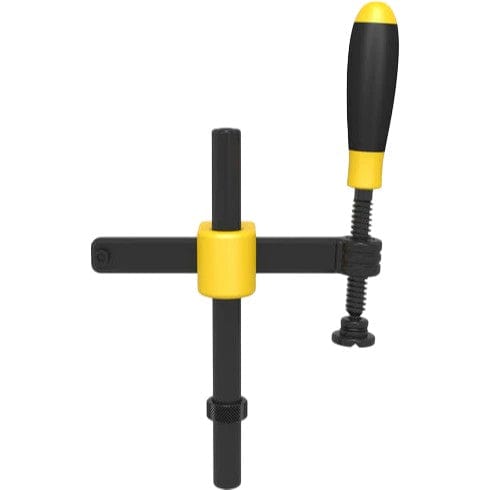

Siegmund System 16 Screw Clamp with Round Pipe – 2-160601
$140.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Siegmund System 16 Screw Clamp with Round Pipe – 2-160601 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
$140.00 CAD
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
Siegmund System 16 Screw Clamp with Round Pipe – 2-160601
$140.00 CAD
Unit price
/
Unavailable
Description
Description
System 16 screw clamp with round-pipe construction for general fixturing and adjustable positioning.
- Item number: 2-160601
- Width: 163 mm
- Height: 200 mm
- Weight: 1.0 kg
- Maximum clamping force: 1.5 kN
- Burnished finish
- Interchangeable prism
- 8 mm spindle ball diameter
- 12 × 3 mm trapezoidal spindle thread
- Fastens with an adjusting ring
Siegmund system data
Siegmund specifications & compatibility
Use the system and dimensional data below to confirm table and tooling compatibility before ordering.
System 16
Clamp
- Siegmund item no.
- 2-160601
- Width
- 163.0 mm
- Height
- 200.0 mm
- Max. clamping force
- 1.5 kN
- Material / finish
- Burnished
- Approx. weight
- 1.0 kg
Compatibility
- Siegmund System 16 tables and tooling
