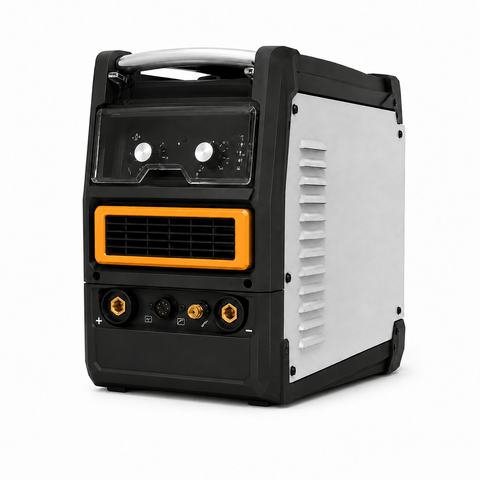

Crossfire NV 230 AC/DC TIG/Stick Welder - Air Cooled
$1,300.00 CAD
Loading...
Crossfire Welders | SKU:
CF-99625
Crossfire NV 230 AC/DC TIG/Stick Welder - Air Cooled
$1,300.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Machine snapshot
Full specs ↓
ProcessesAC TIG · DC TIG · Pulsed TIG · DC Stick
Input power115V / 230V · Single Phase
AluminumYes – AC TIG
Warranty3 Year Limited
Crossfire NV 230 AC/DC TIG/Stick Welder - Air Cooled is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
$1,300.00 CAD
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
Crossfire NV 230 AC/DC TIG/Stick Welder - Air Cooled
$1,300.00 CAD
Unit price
/
Unavailable
One-click welding setup
Complete the Welding Package
Add the machine and the recommended supporting equipment or consumables together in one click.
4 items ready now
$1,328.75 CAD
Description
Description
Crossfire NV 230 AC/DC TIG & Stick Welder | 115/230V Dual Voltage | Air Cooled
CF-99625
The Crossfire NV 230 AC/DC is a professional inverter-based AC/DC TIG and Stick welder designed for fabricators, repair shops, motorsports, maintenance professionals, and serious hobbyists who demand precise arc control across multiple materials.
Built for welding mild steel, stainless steel, and aluminum, the NV 230 AC/DC combines advanced AC/DC TIG capabilities with powerful Stick (MMA) performance in one compact machine. Adjustable pulse welding, pre-flow, post-flow, upslope, downslope, and full AC/DC output controls provide the flexibility needed for everything from thin sheet metal to heavier fabrication.
Dual-voltage operation allows the machine to operate from either 115V or 230V, making it equally capable in the workshop or on mobile job sites.
For Stick welding, built-in Hot Start, Arc Force, and Anti-Stick functions improve arc stability and make difficult electrodes easier to run while reducing rod sticking.
Whether you're fabricating aluminum projects, repairing stainless components, or performing everyday steel welding, the Crossfire NV 230 AC/DC delivers professional performance in a portable package.
Features and Benefits
- AC/DC TIG welding for steel, stainless steel, and aluminum
- Stick (MMA) welding capability
- Dual Voltage 115V / 230V input
- Advanced Pulse TIG control
- Adjustable pre-flow and post-flow gas settings
- Adjustable upslope and downslope
- Arc Force adjustment
- Hot Start
- Anti-Stick function
- Compact inverter technology
- Lightweight portable design
- Backed by Crossfire's Limited 3-Year Warranty
Package Includes
- 13 ft WP26 TIG Torch
- 14 ft Stick Electrode Holder & Cable
- 10 ft Ground Cable & Clamp
- Flow Gauge & Gas Hose
- Owner's Documentation
| Specification | Value |
|---|---|
| Model | Crossfire NV 230 AC/DC |
| Part Number | CF-99625 |
| Process | AC/DC TIG / Stick (MMA) |
| Input Power | 115/230V Single Phase, 50/60Hz |
| TIG Output (115V) | 15-125A @ 30% Duty Cycle |
| TIG Output (230V) | 15-230A @ 40% Duty Cycle |
| Stick Output (115V) | 10-90A @ 30% Duty Cycle |
| Stick Output (230V) | 10-180A @ 40% Duty Cycle |
| Welding Materials | Mild Steel, Stainless Steel, Aluminum |
| Pulse TIG | Yes |
| Hot Start | Yes |
| Arc Force | Yes |
| Anti-Stick | Yes |
| Dimensions | 9.5" W × 21" L × 16" H (241 × 540 × 402 mm) |
| Weight | 37 lb (17 kg) |
| Warranty | Limited 3-Year |
Need help with the complete welding setup?
Crossfire can help specify more than the machine.
Backed by more than 25 years of welding and application experience through MAP Canada, Crossfire can help with machine selection, process fit, guns, torches, feeders, consumables, filler metal and full equipment changeovers.
