Main product
Crossfire NV 230 AC/DC TIG/Stick Welder - Water Cooled
$2,400.00 CAD
Loading...
Crossfire Welders | SKU:
CF-99626
Crossfire NV 230 AC/DC TIG/Stick Welder - Water Cooled
$2,400.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Machine snapshot
Full specs ↓
ProcessesAC TIG · DC TIG · Pulsed TIG · DC Stick
Input power115V / 230V · Single Phase
AluminumYes – AC TIG
Warranty3 Year Limited
Crossfire NV 230 AC/DC TIG/Stick Welder - Water Cooled is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
$2,400.00 CAD
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
Crossfire NV 230 AC/DC TIG/Stick Welder - Water Cooled
$2,400.00 CAD
Unit price
/
Unavailable
One-click welding setup
Complete the Welding Package
Add the machine and the recommended supporting equipment or consumables together in one click.
4 items ready now
$2,428.75 CAD
Description
Description

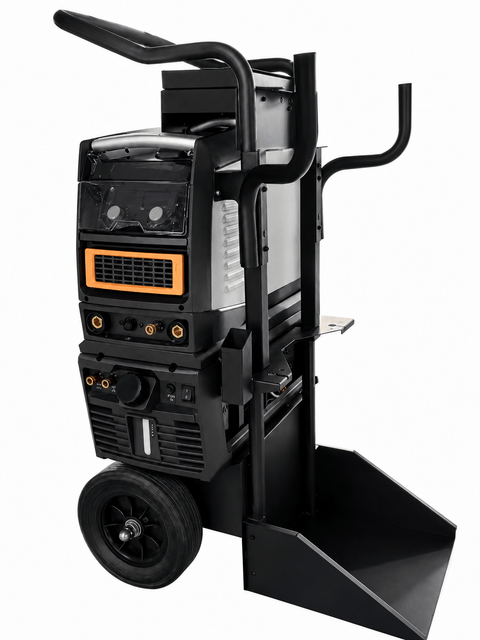

Crossfire NV 230 AC/DC TIG & Stick Welder | 115/230V Dual Voltage | Water Cooled
CF-99626
The Crossfire NV 230 AC/DC WC is a professional-grade water-cooled AC/DC TIG and Stick welder engineered for high-duty-cycle fabrication, production welding, and demanding aluminum applications. Built around advanced inverter technology, it delivers outstanding arc stability, precise control, and the extended performance required for long welding sessions.
Designed for welding mild steel, stainless steel, and aluminum, the NV 230 AC/DC WC combines AC/DC TIG capability with powerful Stick (MMA) performance in one complete package. The integrated water-cooling system helps maintain lower torch temperatures, improving operator comfort while supporting extended welding at higher output levels.
Featuring advanced TIG functions including pulse control, adjustable pre-flow, post-flow, upslope, and downslope settings, the NV 230 AC/DC WC offers exceptional control over heat input and weld quality. Built-in Stick welding features such as Hot Start, Arc Force, and Anti-Stick provide reliable arc performance across a wide range of electrodes.
With dual-voltage 115/230V operation, integrated running gear, and a built-in cylinder rack, the NV 230 AC/DC WC is equally suited for fabrication shops, industrial maintenance, motorsports, and professional aluminum welding applications.
Features and Benefits
- Water-cooled AC/DC TIG welding system
- TIG welding for aluminum, stainless steel, and mild steel
- Stick (MMA) welding capability
- Dual Voltage 115V / 230V input
- 60% Duty Cycle at 230A TIG output
- Advanced Pulse TIG control
- Adjustable pre-flow and post-flow gas control
- Adjustable upslope and downslope
- Hot Start
- Arc Force
- Anti-Stick
- Integrated water cooler
- Running gear with cylinder rack
- Heavy-duty inverter technology
- Limited 3-Year Warranty
Package Includes
- 13 ft WP18 Water-Cooled TIG Torch
- Integrated Water Cooler
- Running Gear / Cylinder Rack
- 14 ft Stick Electrode Holder & Cable
- 10 ft Ground Cable & Clamp
- Flow Gauge & Gas Hose
- Owner's Documentation
| Specification | Value |
|---|---|
| Model | Crossfire NV 230 AC/DC WC |
| Part Number | CF-99626 |
| Process | Water-Cooled AC/DC TIG / Stick (MMA) |
| Input Power | 115/230V Single Phase, 50/60Hz |
| TIG Output (115V) | 15-125A @ 30% Duty Cycle |
| TIG Output (230V) | 15-230A @ 60% Duty Cycle |
| Stick Output (115V) | 10-90A @ 30% Duty Cycle |
| Stick Output (230V) | 10-180A @ 40% Duty Cycle |
| Welding Materials | Mild Steel, Stainless Steel, Aluminum |
| Pulse TIG | Yes |
| Water Cooling | Integrated |
| Hot Start | Yes |
| Arc Force | Yes |
| Anti-Stick | Yes |
| Dimensions | 23" W × 21" L × 48" H (590 × 540 × 1215 mm) |
| Weight | 63 lb (29 kg) |
| Warranty | Limited 3-Year |
Ideal Applications
- Aluminum fabrication
- Stainless steel fabrication
- Precision TIG welding
- Industrial fabrication
- Manufacturing
- Production welding
- Motorsports
- Heavy repair and maintenance
- Fabrication shops
- Professional welding operations
