Crossfire Welders  |  SKU: CF-99307

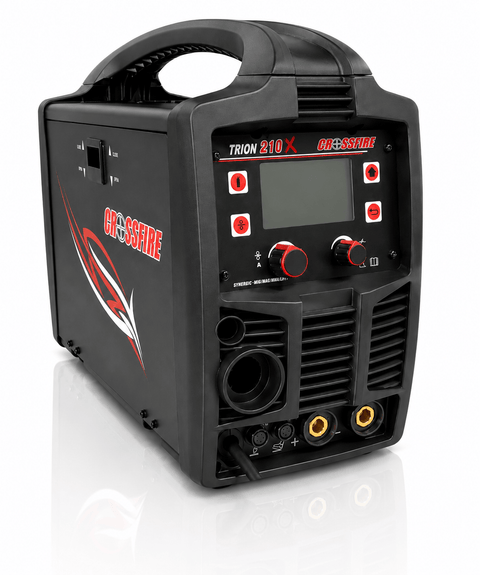

Crossfire Trion 210X Multiprocess Welder – 115/230V

$1,615.00 CAD
Shipping calculated at checkout.
Machine snapshot Full specs ↓
ProcessesMIG · Flux-Cored · DC Stick · DC TIG
Input power115V / 230V · Single Phase
AluminumYes – Optional spool gun
Warranty3 Year Limited
Buying for a shop or business? View purchasing support ↓
Style

Delivery and Shipping

Standard shipping rates apply, does not qualify for free shipping offers.

One-click welding setup

Make It a Ready-to-Weld Starter Kit

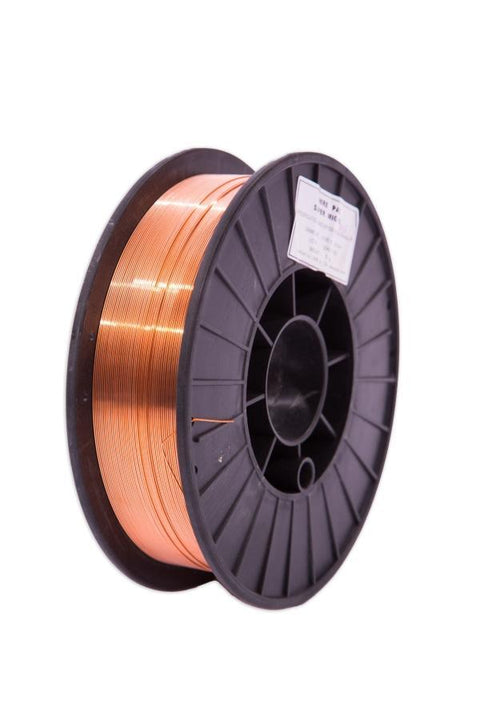

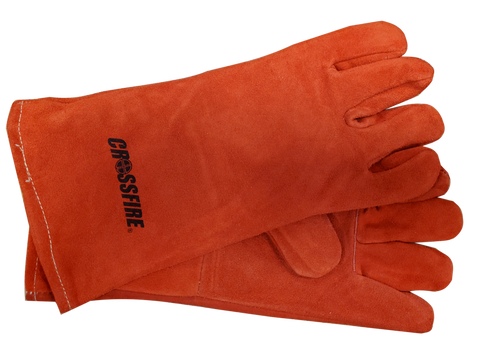

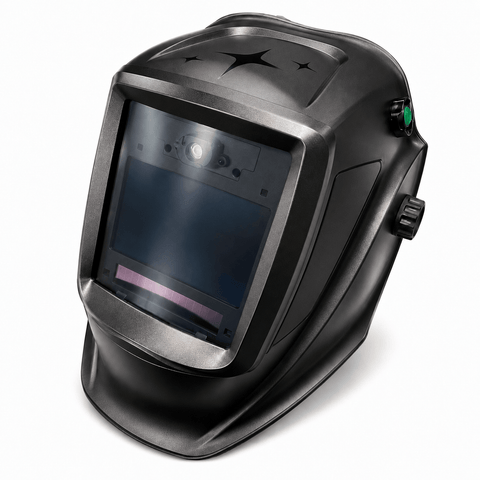

Add a Crossfire auto-darkening helmet, MIG/Stick gloves, and a 5 kg spool of .035 ER70S-6 wire so the machine arrives with the basics already covered.

Crossfire Trion 210X Multiprocess Welder – 115/230V
Main product Crossfire Trion 210X Multiprocess Welder – 115/230V $1,615.00 CAD
4 items ready now $1,799.00 CAD

Description

Quick Fit: Is This the Right Welder?

  • Best for: General fabrication, repair, training, and shops that want one compact multiprocess machine.
  • Input power: 115V or 230V.
  • Processes: MIG, Stick, and TIG with the optional TIG package.
  • Output: Up to 200A.
  • Why choose it: LCD-guided setup automatically recommends weld parameters from process, material, thickness, wire or electrode size, and shielding gas.

Trion 210X LCD Multi-Process Welding Machine

CF-99307

The exciting new 3 in 1 Crossfire TRION 210X is an innovative single phase, 200 Amp multi-process machine featuring the very latest in technology  and operator appeal. Unlike many multi-process welders available today, the TRION 210X does not compromise weld performance in any output setting. Novice and professional welders alike will appreciate its quick, intuitive set up procedure. Through the easy to navigate LCD screen, simply enter the chosen weld process, material type and thickness, wire or electrode diameter, and if applicable, the shielding gas. The 210 automatically sets up to the ideal weld parameter, immediately ready to tackle your requirement with ease.

Includes

∙ Large LCD Screen viewing area
∙ Easy Auto Set-up
∙ Burnback Control
∙ Thermal Overload Protection

∙ 10 ft. Tweco style MIG torch
∙ Drive Rolls .023” -.035”
∙ 10 ft. Ground Cable & Clamp
∙ 14 ft. Electrode Holder
∙ 10 ft. Gas Hose w/ CGA 580 Flow Gauge

Optional TIG Package:

WP17V 10' TIG Torch, Foot Pedal 26'

Need help with the complete welding setup?

Crossfire can help specify more than the machine.

Backed by more than 25 years of welding and application experience through MAP Canada, Crossfire can help with machine selection, process fit, guns, torches, feeders, consumables, filler metal and full equipment changeovers.

Get expert welding guidance Open Welding Machine Hub

Welding Machine Specifications

Technical specifications and equipment details for this machine.

Welding capabilities

Processes
  • MIG
  • Flux-Cored
  • DC Stick
  • DC TIG
Input voltage
  • 115V
  • 230V
Phase
  • Single Phase
Max output / output range
MIG – 115V: 40–90A
MIG – 230V: 30–200A
Stick – 115V: 40–70A
Stick – 230V: 30–180A
TIG – 115V: 40–70A
TIG – 230V: 30–180A
Duty cycle
MIG – 115V: 90A at 40%; 230V: 200A at 20%
Stick – 115V: 70A at 40%; 230V: 180A at 20%
TIG – 115V: 70A at 40%; 230V: 180A at 20%

Equipment & features

Aluminum
Yes – Optional spool gun
Spool gun
Optional – CF-99920, 160A at 60%, 10 ft.
TIG torch
Optional – CF-99910T 150A air-cooled TIG torch
Running gear
Not Included
Warranty
3 Year Limited
Weight
47 lb
