Download spec sheet (english)

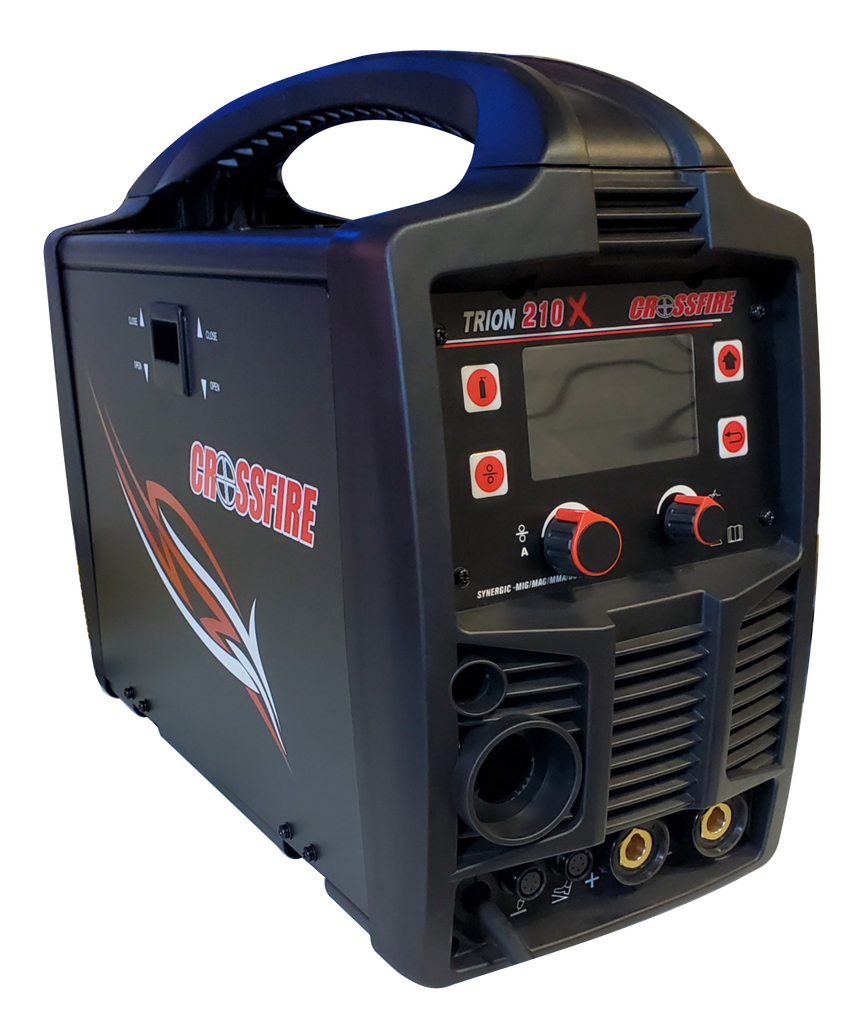

Trion 210 LCD

Sale
Regular price $999.00 CAD

The exciting new 3 in 1 Crossfire TRION 210 is an innovative single phase, 200 Amp multi-process machine featuring the very latest in technology and operator appeal. Unlike many multi-process welders available today, the TRION 210 does not compromise weld performance in any output setting. Novice and professional welders alike will appreciate its quick, intuitive set up procedure. Through the easy to navigate LCD screen, simply enter the chosen weld process, material type and thickness, wire or electrode diameter, and if applicable, the shielding gas. The 210 automatically sets up to the ideal weld parameter, immediately ready to tackle your requirement with ease.

Features and processes

NEW LCD Screen 3.5” x 2.5” viewing area
Auto set up
Gas Metal Arc Welding (GMAW) MIG welding
Flux Cored Arc Welding (FCAW) or self shielded
SMAW Stick welding welding
DC TIG Welding (GTAW) with touch start
.023 - .035 drive rolls
10 ft. Tweco Style MIG gun
10 ft. ground cable and clamp
14 ft. electrode cable and holder
Flow gauge and gas hose
Infinite amperage/wire feed and voltage control
Spot timer
Gas Solenoid
Thermal overload
6 ft. power input cord and dual voltage plug
Easy lifting handle

Rated Input	115/230 Volts Single Phase 50/60 Hz
Part Number	CF-99305
Rated Output	MIG 40-90 @ 115V - 40% Duty Cycle @ 90A 40-200 @ 230V - 20% Duty Cycle @ 200A Stick 10-70 @ 115V - 40% Duty Cycle @ 90A 10-180 @ 230V - 20% Duty Cycle @ 200A TIG 10-90 @ 115V - 40% Duty Cycle @ 90A 10-180 @ 230V - 20% Duty Cycle @ 200A
Dimensions	H. 19" (480 mm) W. 13" (320 mm) L. 29" (730 mm)
Weight	Net: 40 lb (18 kg)

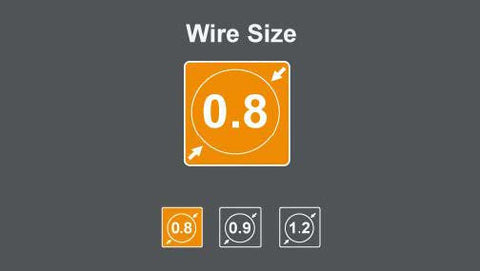

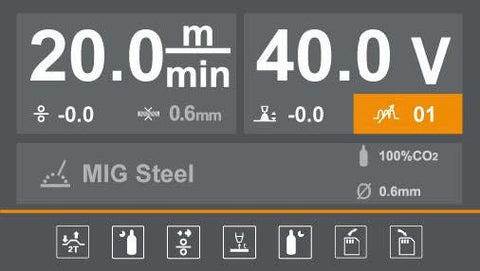

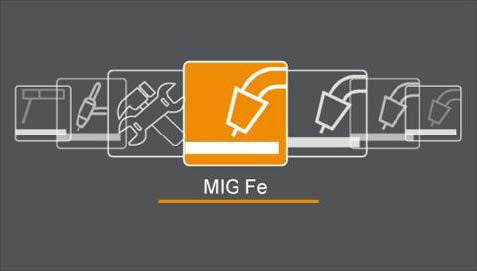

Example Screens
