Crossfire Welders  |  SKU: CF-99335

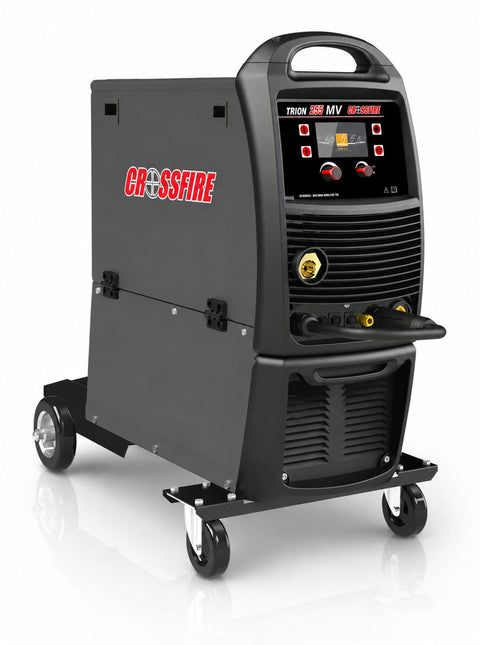

Crossfire Trion 255 MV Multiprocess Welder – 208–575V

$3,475.00 CAD
Shipping calculated at checkout.
Machine snapshot Full specs ↓
ProcessesMIG · Flux-Cored · DC Stick · DC TIG
Input power208V / 230V / 460V / 575V · Single Phase
AluminumYes – Spool gun included
Warranty3 Year Limited
Buying for a shop or business? View purchasing support ↓

Delivery and Shipping

Standard shipping rates apply, does not qualify for free shipping offers.

One-click welding setup

Complete the Welding Package

Add the machine and the recommended supporting equipment or consumables together in one click.

Crossfire Trion 255 MV Multiprocess Welder – 208–575V
Main product Crossfire Trion 255 MV Multiprocess Welder – 208–575V $3,475.00 CAD
4 items ready now $3,612.42 CAD

Description

Quick Fit: Is This the Right Welder?

  • Best for: Professional fabrication shops that need one machine across several facility voltages.
  • Input power: 208V, 230V, 460V, or 575V single phase.
  • Processes: MIG, flux-core, DC Stick, and DC TIG.
  • Output: Up to 250A with a 60% duty cycle.
  • Why choose it: LCD auto setup, heavy-duty 4-drive-roll feeder, plus included spool gun, TIG torch, foot control, MIG gun, electrode holder, regulator, and running gear.

The Crossfire TRION 255 MV is a powerful 255A multi-process welder, designed for seamless operation across 208V to 575V input voltages. Engineered with cutting-edge technology, it delivers top-tier performance in any setting without compromise.

Featuring a 60% duty cycle, the TRION 255 MV ensures consistent, high-quality welds while keeping operation simple. Its intuitive LCD interface allows for fast setup—just select your welding process, material, thickness, and wire or electrode size, and the machine automatically adjusts to the optimal parameters for professional-grade results.



Includes

The Crossfire TRION 255 MV features a heavy-duty 4-drive roll feeder system, a large LCD screen viewing area, Gas Metal Arc (GMAW) MIG welding, DC Stick Welding (SMAW), DC TIG Welding (GTAW), and Flux Cored Arc Welding (FCAW). It includes easy auto setup, burnback control, thermal overload protection, and MIG Wire Clean Start Technology. The unit also comes equipped with a running gear and Q-size cylinder rack, drive rolls for .035” to .045” wire, a 20 ft. Tweco-style spool gun, a 13 ft. WP26 TIG torch with a 26 ft. foot control, a 13 ft. Tregaskiss-style MIG gun, a 10 ft. ground cable and clamp, a 14 ft. electrode holder, a 10 ft. gas hose with CGA 580 flow gauge, and a 7 ft. power cable.



Rated Input

208/230/460/575
Single Phase
50/60 Hz

Part Number

CF-99335

Rated Output

MIG
25-250 @ - 60% Duty Cycle @ 250A

Stick
30-250 @ - 60% Duty Cycle @ 200A

TIG
10-250 @ - 60% Duty Cycle @ 250A

Dimensions

H. 48" (1209 mm) W. 20" (500 mm) L. 37" (935 mm)

Weight

Net: 176 lb (80 kg)


Example Screens

Trion 250 LCD Main Menu

Trion 250 LCD Selection Screen

Trion 250 LCD Welding Screen



Need help with the complete welding setup?

Crossfire can help specify more than the machine.

Backed by more than 25 years of welding and application experience through MAP Canada, Crossfire can help with machine selection, process fit, guns, torches, feeders, consumables, filler metal and full equipment changeovers.

Get expert welding guidance Open Welding Machine Hub

Welding Machine Specifications

Technical specifications and equipment details for this machine.

Welding capabilities

Processes
  • MIG
  • Flux-Cored
  • DC Stick
  • DC TIG
Input voltage
  • 208V
  • 230V
  • 460V
  • 575V
Phase
  • Single Phase
Max output / output range
MIG: 30–250A
DC Stick: 25–250A
DC TIG: 10–250A
Duty cycle
MIG: 250A at 60%
DC Stick: 250A at 60%
DC TIG: 250A at 60%

Equipment & features

Aluminum
Yes – Spool gun included
Spool gun
Included – 20 ft. Tweco-style spool gun
TIG torch
Included – 13 ft. WP26 TIG torch with 26 ft. foot control
Running gear
Included – Running gear and Q-size cylinder rack
Warranty
3 Year Limited
Weight
176 lb
