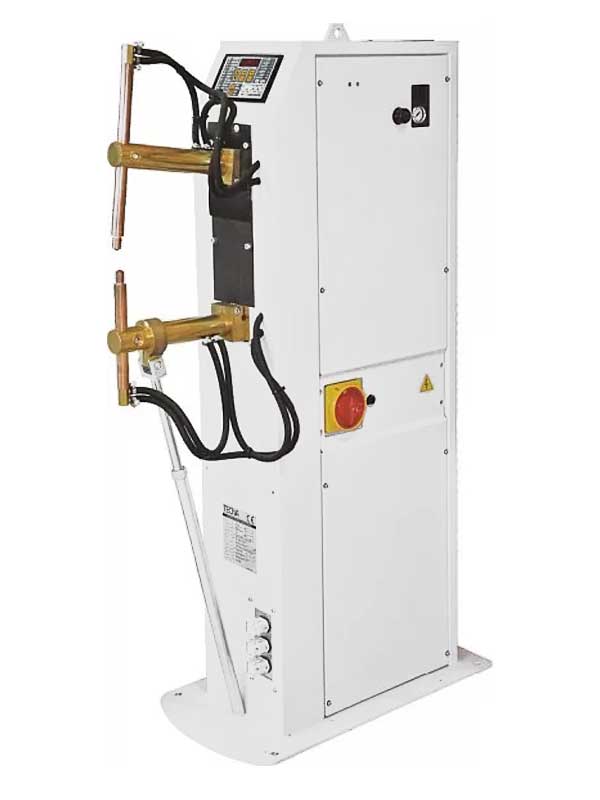

TECNA TE4663NX Rocker Arm Spot Welder - 50 kVA
4663NX
The TECNA TE4663NX Rocker Arm Spot Welder is a heavy-duty 50 kVA pneumatic resistance spot welder designed for production welding, fabrication, and industrial manufacturing environments. Delivering up to 16,500 amps of welding current, the TE4663NX combines powerful performance with adjustable electrode force, stroke, and arm positioning to accommodate a wide range of workpiece sizes and material thicknesses.
Built for reliability in demanding production settings, the TE4663NX features heavy-duty chrome-copper electrode holders, front-mounted digital controls for convenient parameter adjustment, and a rugged welded steel frame for long service life. Its large throat depth and adjustable rocker arm design make it ideal for welding larger assemblies while maintaining consistent weld quality throughout extended production runs.
| TECNA TE4663NX Rocker Arm Spot Welder Specifications | |
|---|---|
| Model | TECNA TE4663NX |
| Operation | Pneumatic |
| Welder Type | Rocker Arm Spot Welder |
| Nominal Power (50% Duty Cycle) | 50 kVA |
| Power Supply | Single-Phase AC |
| Maximum Welding Current | 16,500 A |
| Maximum Electrode Force | 584 lb |
| Maximum Throat Depth | 36.0 in. |
| Electrode Holders | Chrome-Copper |
| Control System | TECNA TE101 Digital Weld Control |
| Arm Adjustment | Adjustable |
| Electrode Stroke | Adjustable |
| Electrode Force | Adjustable |
