2,400mm x 1,200mm Siegmund Welding Table System 28 Extreme 8.7
2,400mm x 1,200mm Siegmund Welding Table System 28 Extreme 8.7 is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
2,400mm x 1,200mm Siegmund Welding Table System 28 Extreme 8.7
Description
Description
Please contact for shipping details.

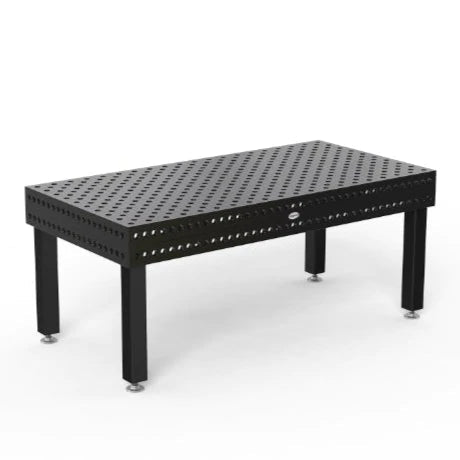

Siegmund System 28 Professional Extreme 8.7 welding table for heavy-duty fabrication, assembly and precision fixturing. Its 28 mm bore system, diagonal grid and reinforced construction provide flexible clamping positions for demanding industrial work.
Welding Table Specs and Features
- Overall Tabletop Size: 2400 x 1200 x 200 mm (94.48" x 47.24" x 7.87")
- Borehole: Ø 28 mm (1.10")
- Series: Professional Extreme 8.7
- Material Thickness: Approx. 24.5–27 mm
- Material / Finish: Professional Extreme 8.7 hardened tool steel, plasma nitrided and BAR-coated
- Surface Hardness: Approx. 450–850 Vickers
- Siegmund Item No.: 4-280030.XD7D
- Maximum Evenly Distributed Load: 4,000 kg / 8,818 lb
- Approximate Table Weight: 947 kg / 2,087 lb

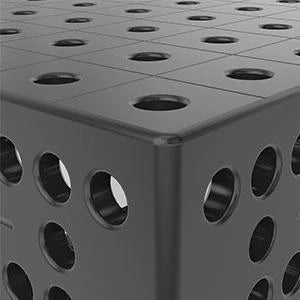

- Surface Bore Pattern: diagonal grid configuration
- Table Side Height: 200 mm
- Table-Side Bore Spacing: 50 mm
- Construction: reinforced with ribbing; metric scaling on the surface

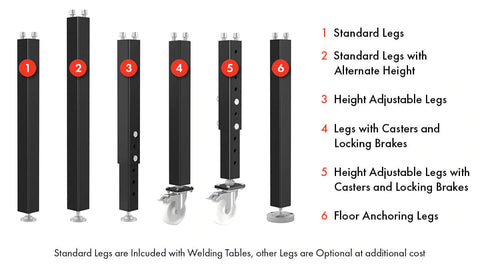

Siegmund standard legs are included. Contact Crossfire Welders for freight and alternate leg options.
Siegmund system data
Siegmund specifications & compatibility
Use the system and dimensional data below to confirm table and tooling compatibility before ordering.
- Siegmund item no.
- 280030.XD7D
- Overall dimensions
- 2400 x 1200 x 200 mm
- Bore diameter
- Ø 28.0 mm
- Surface grid
- Diagonal grid configuration
- Plate thickness
- Approx. 24.5–27 mm
- Material / finish
- Professional Extreme 8.7 hardened tool steel; plasma nitrided and BAR-coated
- Surface hardness
- 450–850 Vickers
- Maximum load
- 4000 kg, evenly distributed
- Approx. weight
- 947 kg / 2,087 lb
- Table side height
- 200 mm
- Side bore pattern
- 50 mm spacing
- Metric scaling
- Yes
- Construction
- Reinforced with ribbing
- Siegmund System 28 tooling and accessories
