Bernard IronPro™ 450A Self-Shielded FCAW Gun — 15 ft

Built for demanding self-shielded flux-cored welding, the Bernard IronPro™ FCAW gun combines rugged construction with a compact T-Series handle for better joint access and maneuverability. It uses AccuLock™ S consumables, a replaceable power-cable liner and internal trigger leads to simplify maintenance and reduce snag points in harsh welding environments.

Key specifications

• Rated output: 450 A
• Duty cycle: 60% NEMA
• Cable length: 15 ft (4.57 m)
• Process: Self-Shielded Flux-Cored (FCAW)
• Wire size: 1/16 in. to 3/32 in. (1.6 to 2.4 mm)
• Consumable system: Bernard AccuLock™ S
• Trigger: Sealed T-Series trigger with internal trigger leads
• Liner: Replaceable power-cable liner

Choose your configuration

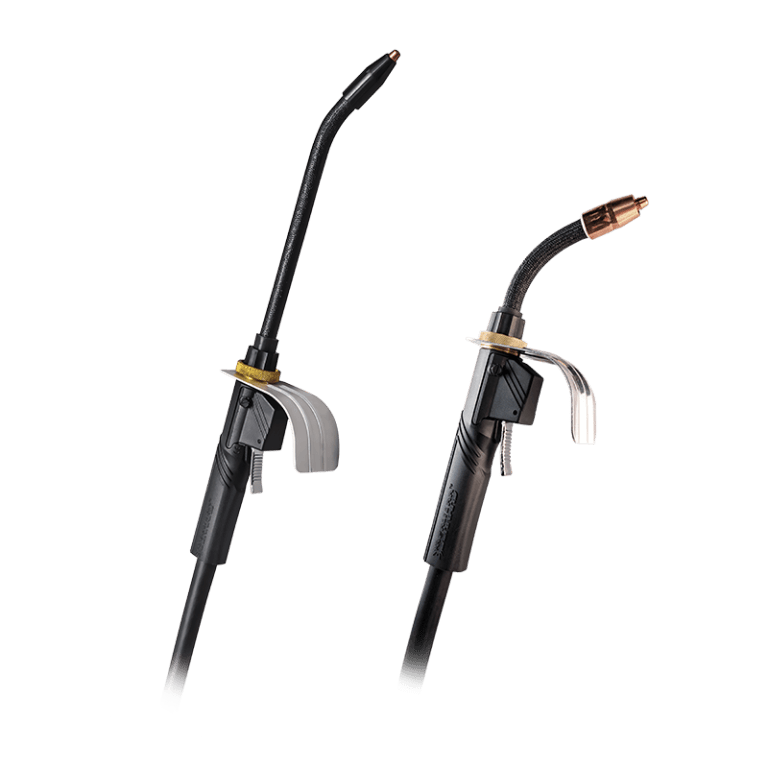

Select either the 12 in. / 45° long neck without heat shield or the 7 in. / 60° short neck with heat shield. Both neck styles are offered with Miller® or Tweco® #4 power-pin connections.

Designed for heavy-duty work

IronPro guns are suited to construction and infrastructure, general manufacturing and fabrication, MRO, offshore and ship applications where high-output self-shielded FCAW is required.
