Siegmund

1,500mm x 1000mm Siegmund Welding Table System 16 Extreme 8.7

  • Sale
  • Regular price $5,378.00 CAD


Please contact for shipping details

All System 16 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.



Welding Table Specs and Features:   Approx. 5' x 3.5'

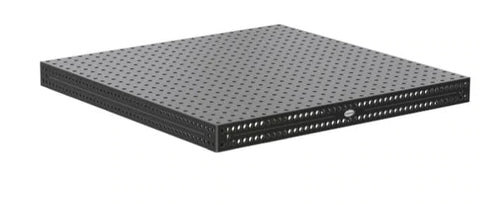

  • Overall Tabletop Size: 1500x1000x100mm (59" x 39.37" x 3.93")
  • Borehole: Ø 16mm (0.629")
  • Welding Table Series: Professional Extreme 8.7 Series
  • Welding Table Material Thickness: Approx. 11.5 – 13mm (0.45" - 0.51")
  • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
  • Table Surface Hardness: 450-850 Vickers
  • Official Siegmund Welding Table Part No.: 4-160035.X7
  • Maximum Weight Load: 3,790 lbs. (Based on Even Distribution)
  • Approximate Table Weight: 620 lbs. / 281 kg.

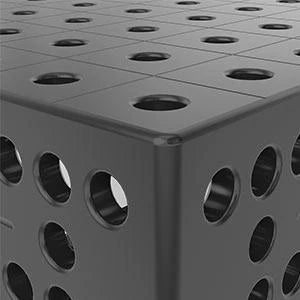

  1. Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").
  2. Boreholes have a radius of 2mm (0.078").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
  4. Height of table side 100mm (3.93") - Borehole spacing of table side 25mm (0.98")
  5. Metric Scaling on the surface.
  6. Construction reinforced with ribbing.

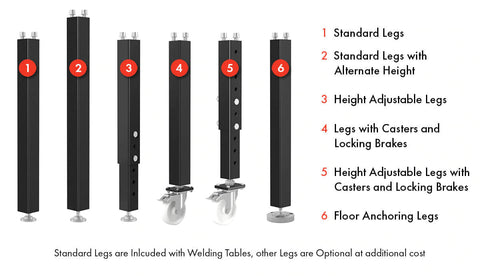

Siegmund standard legs included with table, please contact for additional options and pricing.
