1,200mm x 800mm Siegmund Welding Table System 28 Extreme 8.7

  • Sale
  • Regular price $6,285.00 CAD

Please contact for shipping details

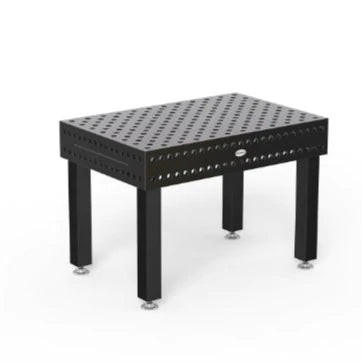

1,200mm x 800mm Siegmund Welding Table - System 28 Extreme 8.7

All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability. System 28 Siegmund welding tables are designed for the most extreme, heavy duty industrial applications on earth.

Our Double Hardened Tables are constructed from through hardened steel before undergoing a Plasma Nitride treatment to provide you with a table of superior quality and performance.

All of our system 28 welding tables come with a diagonal hole matrix which increases the hole count by 33% when compared with a traditional grid pattern.

Siegmund Welding Tables are the Hardest, Most Durable and Extraordinarily Flat Welding Tables Available in the World.
The hardened X7 Steel (the 8.7 Series), is specially made for Siegmund in Germany. This steel is of a considerably higher hardness grade compared to 98% of the welding tables in the market. The only thing harder to our 8.7 series table are our Siegmund 8.8 Series Welding Tables. With the Series 8.7 Siegmund Welding tables, the top plate achieves a hardness of 850 vickers after the Plasma Nitration and the BAR-Treatment. The higher hardness also helps maintain the flatness of the weld table.

 Welding Table Specs and Features: Approx. 4' x 2.5'

      • Overall Tabletop Size: 1,200 x 800 x 200mm (47.2" x 31.5" x 7.87")
      • Borehole: Ø 28mm (1.10")
      • Welding Table Series: Professional Extreme 8.7 Series
      • Welding Table Material Thickness: Approx. 24.5 – 27mm (0.96" - 1.06")
      • Welding Table Material Type and Finish: Professional Extreme 8.7 Hardened Tool Steel, Plasma Nitrided and BAR-Coated
      • Table Surface Hardness: 450-850 Vickers
      • Official Siegmund Welding Table Part No.: 4-280025.XD7
      • Maximum Weight Load: 7,920 lbs. (Based on Even Distribution)
      • Approximate Table Weight: 900 lbs. / 408 kg.

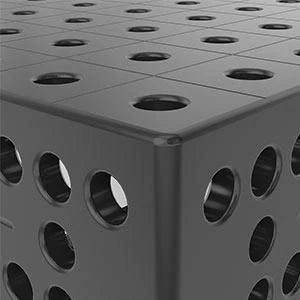

  1. Boreholes on the Surface are in a Diagonal Grid Configuration.
  2. Boreholes have a radius of 3mm (0.118").
  3. Radius 3mm (0.118") / 6mm (0.236") on table edges and corners.
  4. Height of table side 200mm (7.87") - Borehole spacing of table side 50mm (1.96")
  5. Metric Scaling on the surface.

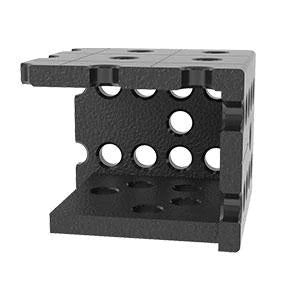

  6. Construction reinforced with ribbing.

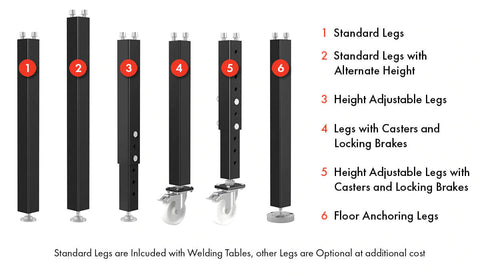

Siegmund standard legs included with table, please contact for additional options and pricing.
