ESAB Cutmaster 30+ Plasma Cutter – 120/230V
1-3000-1

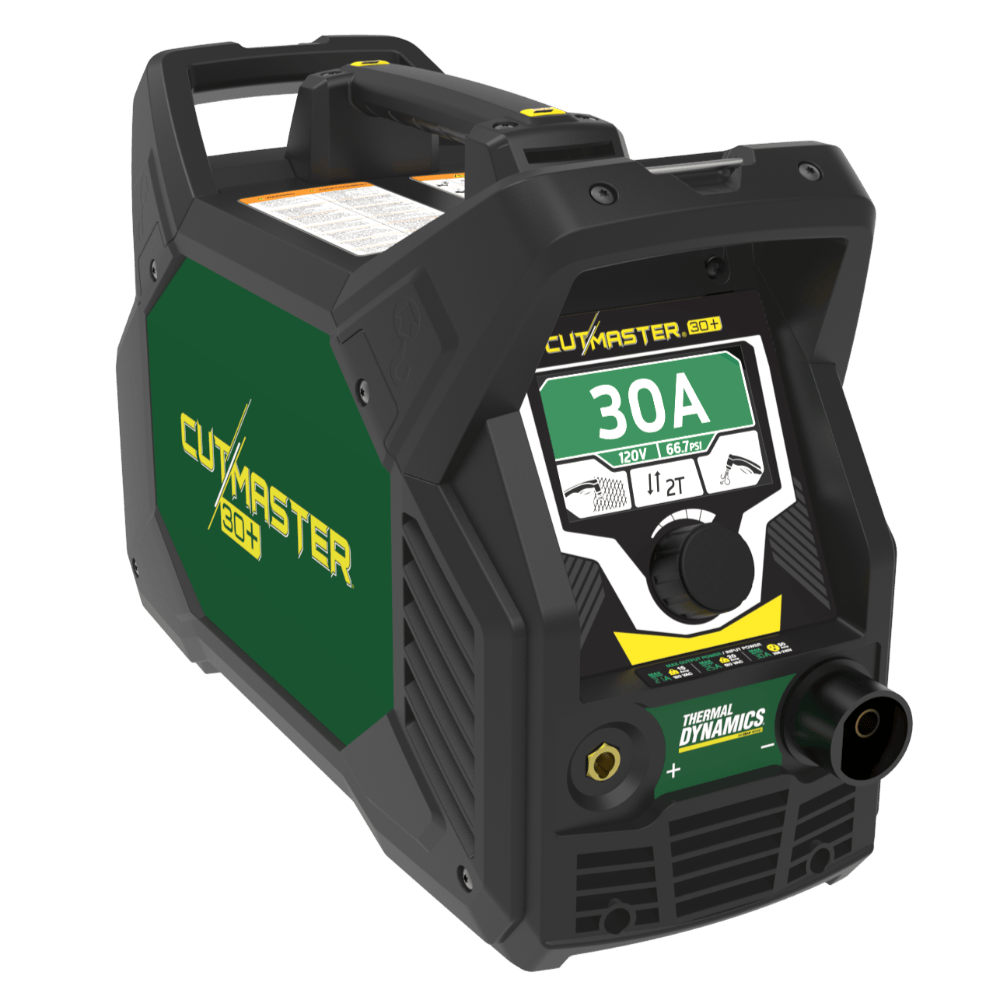

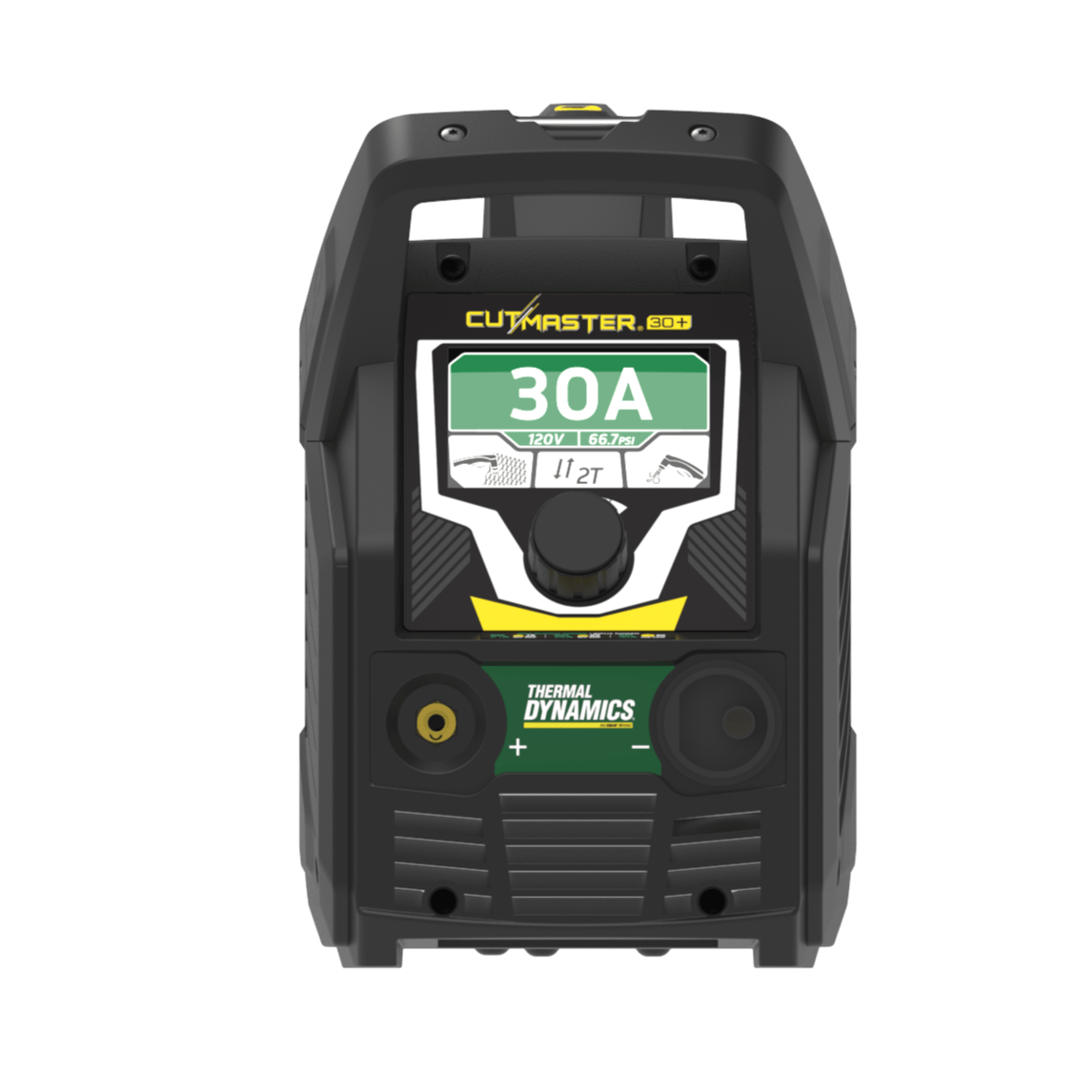

The ESAB Cutmaster 30+ is a compact handheld plasma cutting system built for portability without giving up useful cutting capacity. It is suited to light and general fabrication, repair and maintenance, automotive work, HVAC, agricultural equipment, training and other mobile cutting applications.
The Cutmaster 30+ operates from 120–230V single-phase input power with automatic voltage detection. Output is continuously adjustable from 10–30 amps. On 230V input, the machine is rated at 30 amps at 40% duty cycle and 20 amps at 100% duty cycle. On 120V input, it is rated at 25 amps at 40% duty cycle and 16 amps at 100% duty cycle.

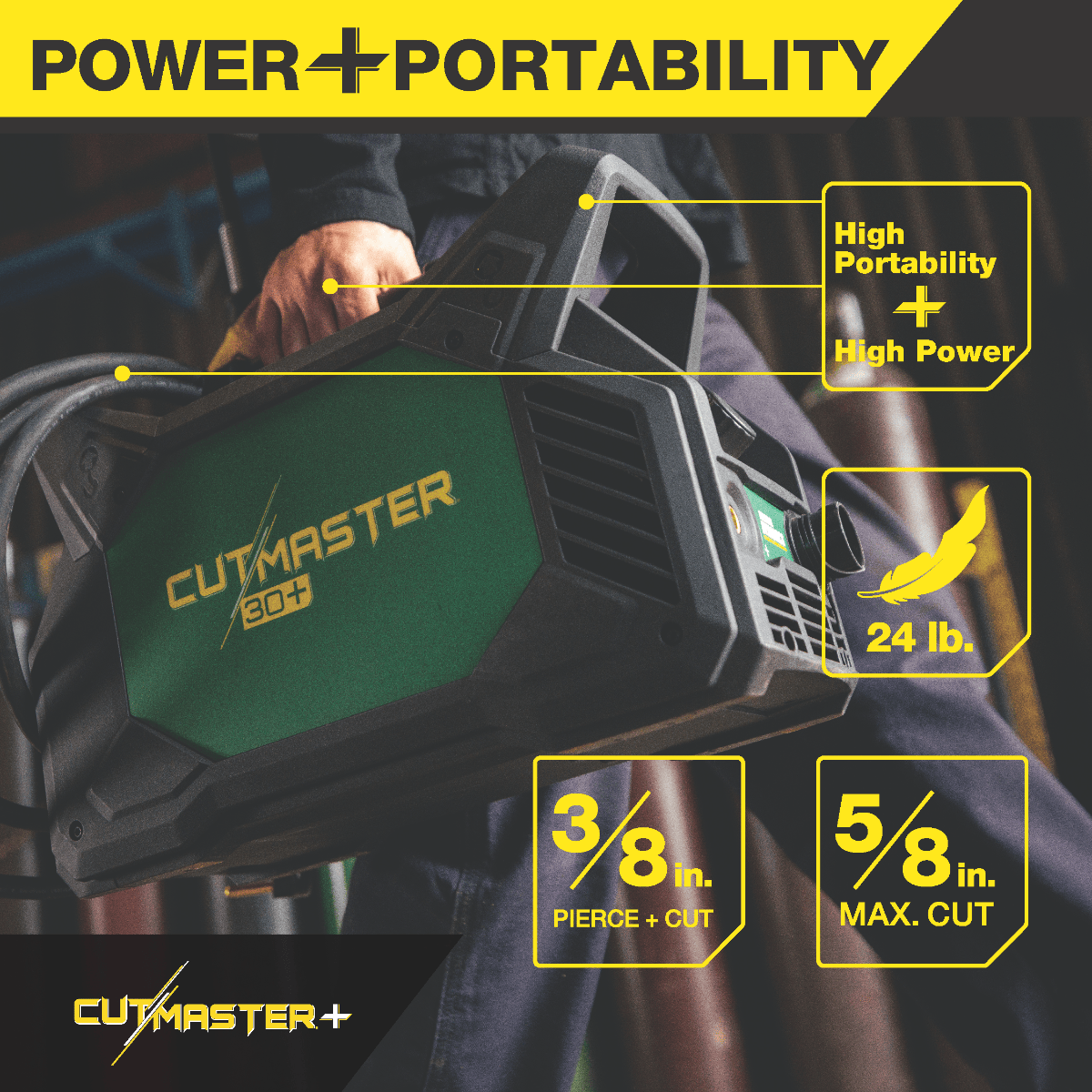

Cutting performance includes up to 3/8 in. pierce capacity, a 1/2 in. rated cutting capacity at 10 IPM and a maximum severance of 5/8 in. at 6 IPM. The machine uses clean, dry compressed air or high-purity nitrogen and requires 90–125 PSI inlet pressure.

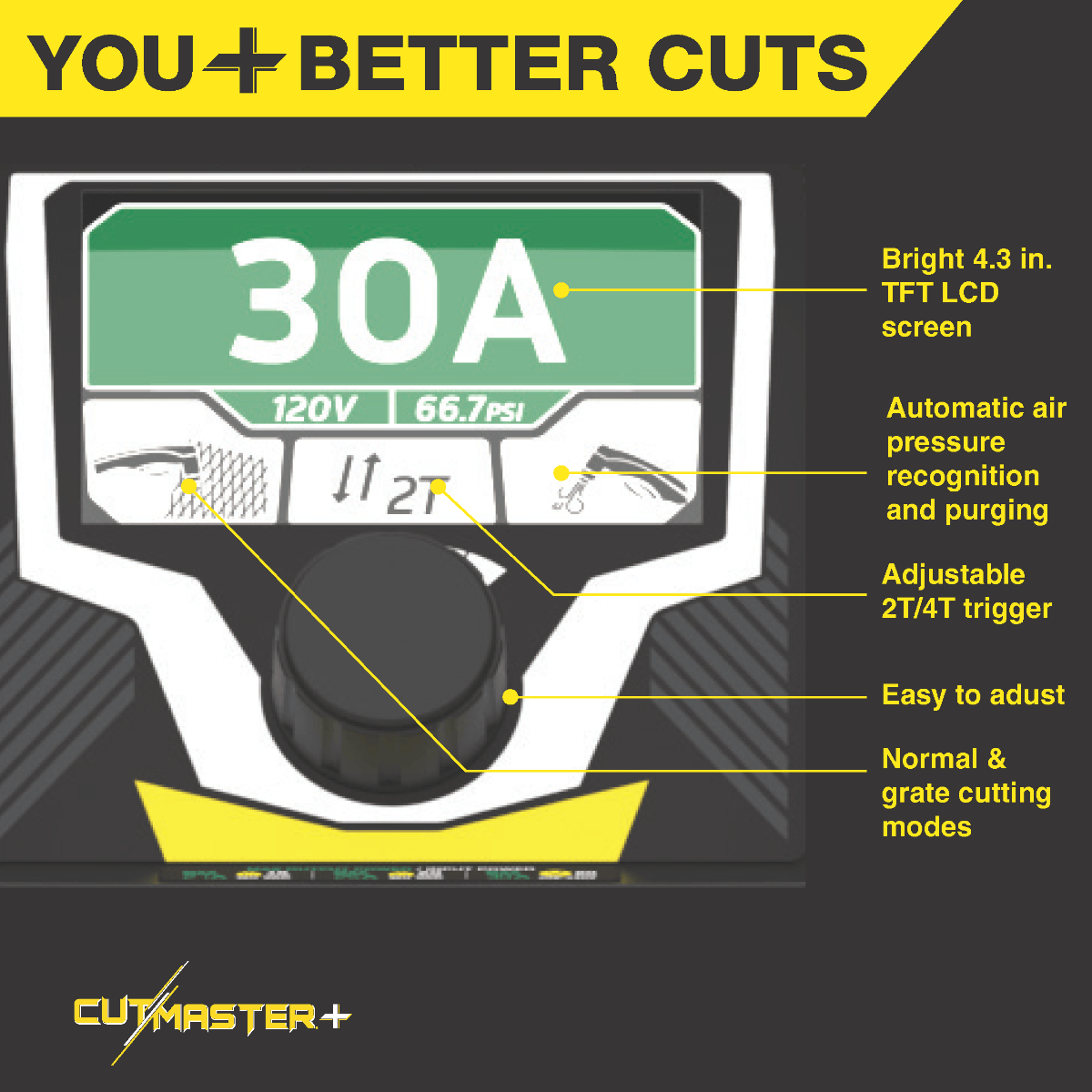

A 4.3-inch TFT LCD display provides glove-friendly adjustment and clear operating information. Automatic voltage detection sets the appropriate maximum output amperage, while normal and grate cutting modes, post-cut air purge and the included SL60 1Torch provide a flexible setup for cutting and gouging work.
The 1-3000-1 North American package includes the Cutmaster 30+ power supply, 16 ft. SL60 75-degree torch and lead, 10 ft. work lead with ground clamp, consumables kit, 120V adapter and regional 1/4 in. air fitting.
Key Features
- Plasma cutting and gouging
- 120–230V single-phase input
- Automatic voltage detection
- 10–30A continuously adjustable output
- 30A at 40% duty cycle on 230V
- 20A at 100% duty cycle on 230V
- 25A at 40% duty cycle on 120V
- 16A at 100% duty cycle on 120V
- 3/8 in. pierce capacity
- 1/2 in. rated cutting capacity
- 5/8 in. maximum severance
- 4.3-inch TFT LCD display
- Normal and grate cutting modes
- SL60 1Torch with 2T/4T trigger function
- Post-cut air purge
- Compatible with ATC torch connections
- 25.4 lb. net weight
Included Equipment – 1-3000-1
- Cutmaster 30+ power supply
- SL60 75-degree hand torch with 16 ft. lead
- 10 ft. work lead with ground clamp and OKC/Dinse connector
- General cutting and gouging consumables kit
- 120V input adapter
- Regional 1/4 in. air fitting
