ESAB Cutmaster 50+ Plasma Cutter – 120/240V
ESAB Cutmaster 50+ Plasma Cutter – 120/240V is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
ESAB Cutmaster 50+ Plasma Cutter – 120/240V
Description
Description

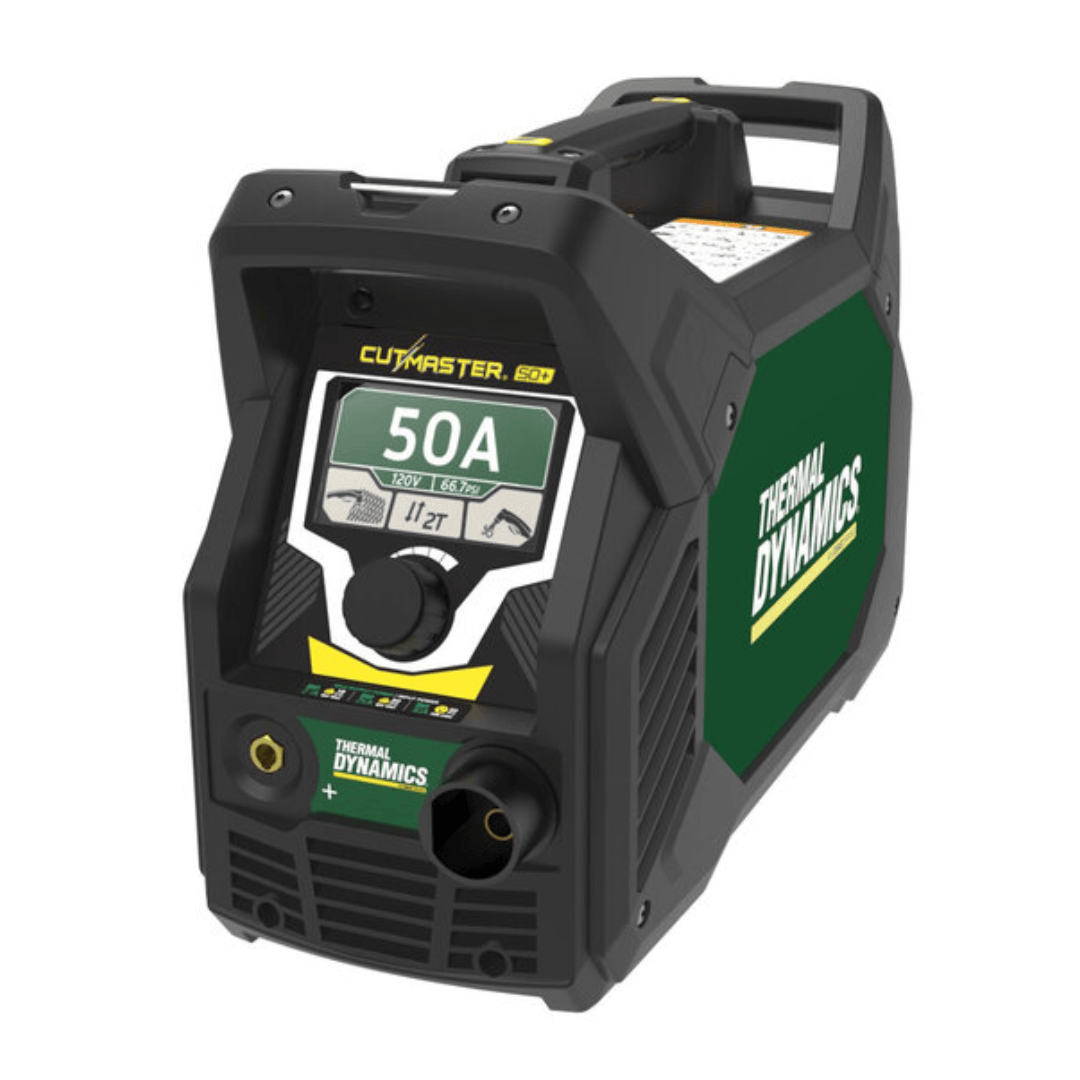

ESAB Cutmaster 50+ Plasma Cutter – 120/240V
1-5000-1
The ESAB Cutmaster 50+ is a portable manual plasma cutting system designed for industrial and general fabrication, light fabrication, production, automotive, agricultural equipment, HVAC, repair and maintenance, pipeline work and training applications.
The 1-5000-1 North American package operates from 120–240V single-phase input power and provides a continuously adjustable 15–50 amp output range. On 240V input, the machine is rated at 50 amps at 50% duty cycle and 30 amps at 100% duty cycle. On 120V input, it is rated at 25 amps at 40% duty cycle and 16 amps at 100% duty cycle.
Cutting performance includes a 5/8 in. pierce capacity, 1 in. cutting capacity at 8 IPM and 1-1/4 in. maximum severance at 4 IPM. A 4.3-inch TFT LCD with glove-friendly adjustment provides clear operating control, while normal and grate cutting modes, post-cut air purge and CNC connectivity expand the machine’s usefulness beyond basic hand cutting.
The included SL60 1Torch features 2T/4T trigger operation, a safety trigger lock and double-tap trigger function for conserving bottled air. The Cutmaster 50+ is also compatible with ATC torch connections for alternate manual and mechanized torch configurations.
Key Features
- Plasma cutting and gouging
- 120–240V single-phase input
- 15–50A continuously adjustable output
- 50A at 50% duty cycle on 240V
- 30A at 100% duty cycle on 240V
- 25A at 40% duty cycle on 120V
- 16A at 100% duty cycle on 120V
- 5/8 in. pierce capacity
- 1 in. cutting capacity
- 1-1/4 in. maximum severance
- 4.3-inch TFT LCD display
- Normal and grate cutting modes
- CNC-ready 14-pin CPC receptacle with voltage divider
- SL60 1Torch included
- ATC torch compatibility
- IP23S enclosure rating
- 12+ kW recommended generator size
- 38.6 lb. net weight
Included Equipment – 1-5000-1
- Cutmaster 50+ power supply
- SL60 75° hand torch with 16 ft. lead
- 10 ft. work lead with ground clamp and OKC/Dinse connector
- Consumables kit
- Regional 1/4 in. air fitting
- 120V input adapter
