ESAB Thermal Dynamics Cutmaster 70+ Plasma Cutter – 120/240V

ESAB Thermal Dynamics Cutmaster 70+ Plasma Cutter – 120/240V

1-7000-1

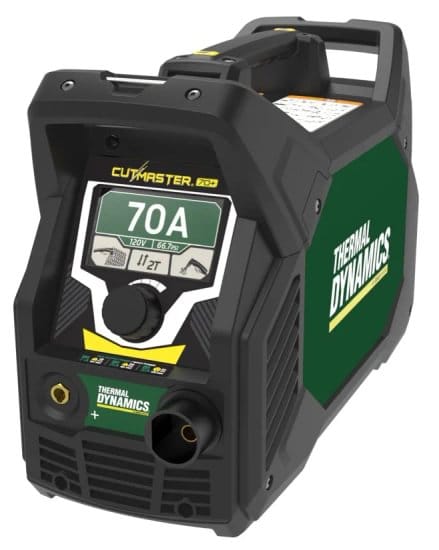

The ESAB Thermal Dynamics Cutmaster 70+ is a portable 70-amp plasma cutting system built for fabrication, repair and maintenance, agricultural equipment, HVAC, pipeline work and industrial production. Product number 1-7000-1 is the North American 120–240V single-phase package and includes the 120V adapter.

Output is continuously adjustable up to 70 amps. At 240V input, the Cutmaster 70+ delivers 70 amps at 40% duty cycle and 40 amps at 100% duty cycle. At 120V, it delivers 25 amps at 40% duty cycle and 16 amps at 100% duty cycle.

The system has a 3/4 in. pierce capacity, 1-1/8 in. maximum recommended cut and 1-1/2 in. maximum edge-start/severance capacity. It uses clean, dry compressed air or high-purity nitrogen and requires 90–125 psi inlet pressure.

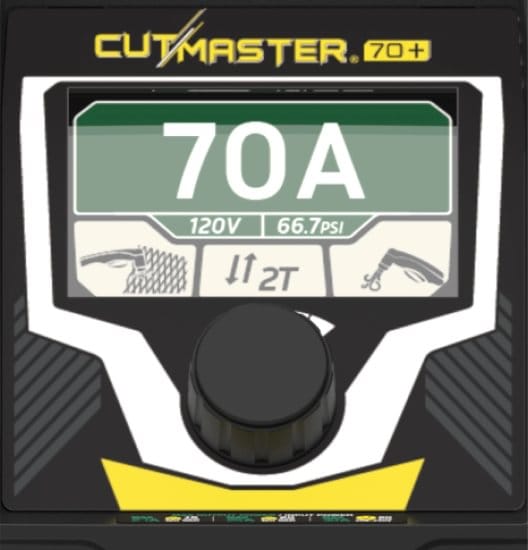

A 4.3 in. TFT LCD display and glove-friendly control knob simplify setup. The included SL60 1Torch supports 2T/4T operation, trigger safety lock and double-tap air control. Normal and grate cutting modes, post-cut air purge and a complete consumables kit are included.

The Cutmaster 70+ also includes CNC functionality through a pre-installed 14-pin CPC receptacle and voltage divider for Start/Stop, OK-to-Move and divided arc-voltage signals.

Key Features

• 120–240V single-phase input
• Up to 70A continuously adjustable output
• 70A at 40% duty cycle on 240V
• 40A at 100% duty cycle on 240V
• 25A at 40% duty cycle on 120V
• 16A at 100% duty cycle on 120V
• 3/4 in. pierce capacity
• 1-1/8 in. maximum cut
• 1-1/2 in. maximum edge-start / severance capacity
• 4.3 in. TFT LCD display
• SL60 1Torch included
• Normal and grate cutting modes
• Post-cut air purge
• CNC-ready 14-pin CPC connection
• IP23S enclosure
• 38.6 lb. package weight
• 3-year power-supply warranty
• 1-year torch and leads warranty
