Invercut 125HD Plasma Cutter
$6,500.00 CAD
1
of
2
Loading...
Crossfire Welders | SKU:
CF-995125
Invercut 125HD Plasma Cutter
$6,500.00 CAD
Unit price
/
Unavailable
Shipping calculated at checkout.
Machine snapshot
Full specs ↓
ProcessesPlasma Cutting
Input power575V · Three Phase
AluminumYes – Plasma cutting
Invercut 125HD Plasma Cutter is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
$6,500.00 CAD
Delivery and Shipping
Delivery and Shipping
Standard shipping rates apply, does not qualify for free shipping offers.
Invercut 125HD Plasma Cutter
$6,500.00 CAD
Unit price
/
Unavailable
One-click welding setup
Complete the Welding Package
Add the machine and the recommended supporting equipment or consumables together in one click.
5 items ready now
$6,734.08 CAD
Description
Description

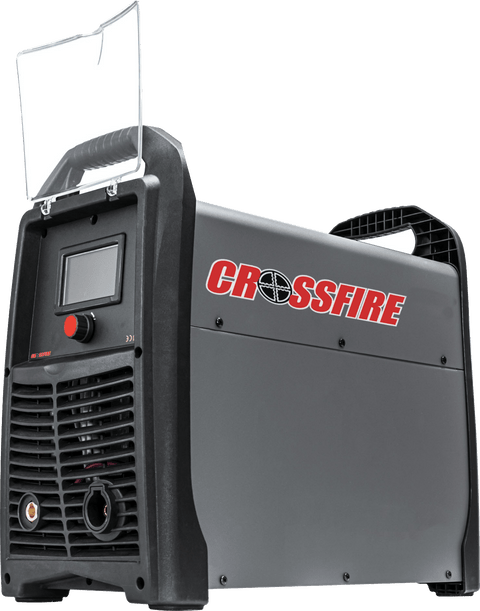

Invercut 125HD Plasma Cutter
CF-995125
Crossfire has created a powerful, versatile, easy to operate and cost-effective
range of Invercut plasma power supplies for manual and mechanized applications.
The Crossfire Invercut 125HD systems fit different needs, from small workshops to
heavy-duty production facilities with continuous operation. Combined with the
perfectly fitting torches and cable leads, they provide outstanding cutting, gouging and grid-cutting performance.
DESIGNED FOR THE OPERATOR
Easily control gas flow, current, and pilot arc with the included GRID mode for automatic switching between the pilot and main arc. The HD line is mobile with an ergonomic handle that reduces operator strain when cutting in multiple locations.
ON-DEMAND MECHANIZED AND AUTOMATED PERFORMANCE
Pair with an automated solution or operate by hand to cut aluminum, stainless steel, and hardox. The HD line uses cooled, shielded plasma capable of cleanly cutting materials up to 1-1/16”.
Features
- Industry leading 4.3" LCD Display
- Gouging & marking capabilities
- Automatic settings: Gas, Electricity & Pilot
- Quick connect torch
- Thermal overload protection
- CNC ready
- Max Severance: 2.4" (60mm)
Piercing Capacity: 1" (25mm)
Includes:
- 125TTH 8m Hand Torch
- 10 ft. Ground Clamp & cable
|
Rated Input |
575V - 3 Phase |
|
Part Number |
CF-995125 |
|
Output |
30 - 125A (3-phase 575V) |
|
Duty Cycle |
100% @ 125A |
|
Gas Flow |
6.1 CFM @ 75 PSI (5.2 bar) |
|
Dimensions |
H. 24” (613 mm) W. 12” (302 mm) L. 21” (520 mm) |
|
Weight |
Net: 74 lbs (37 kg) |
