Download spec sheet (english)

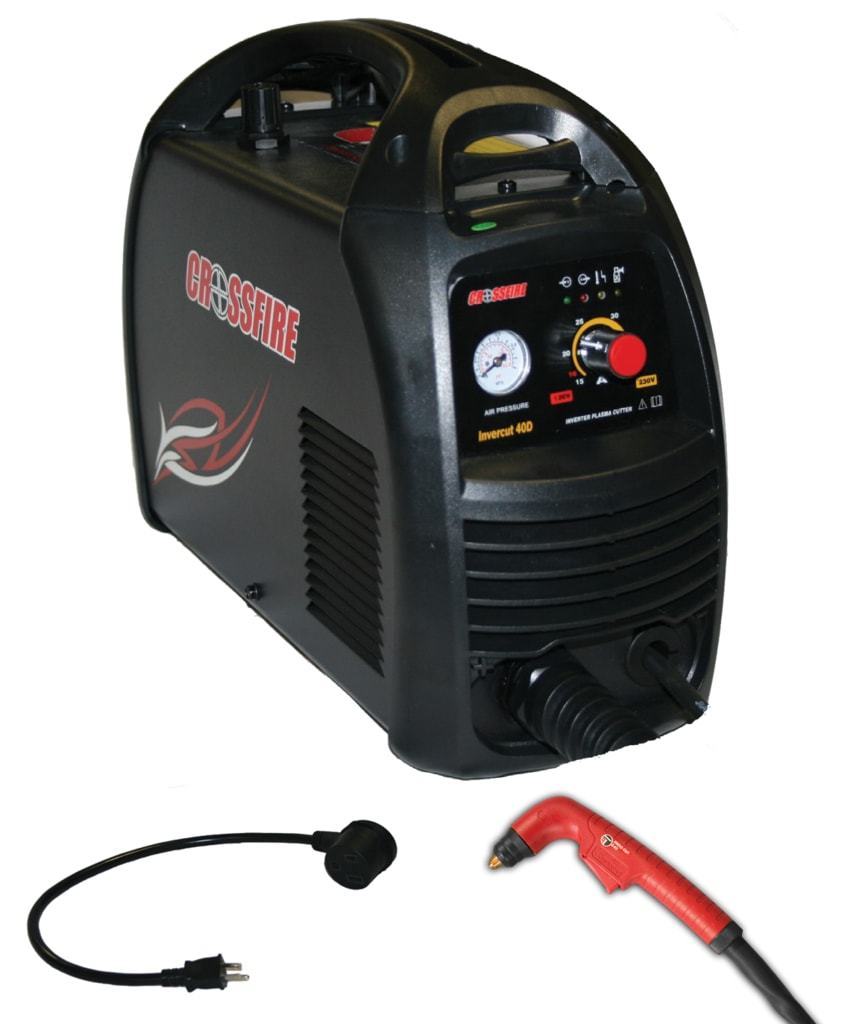

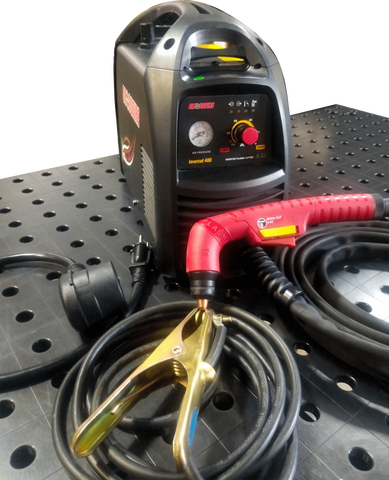

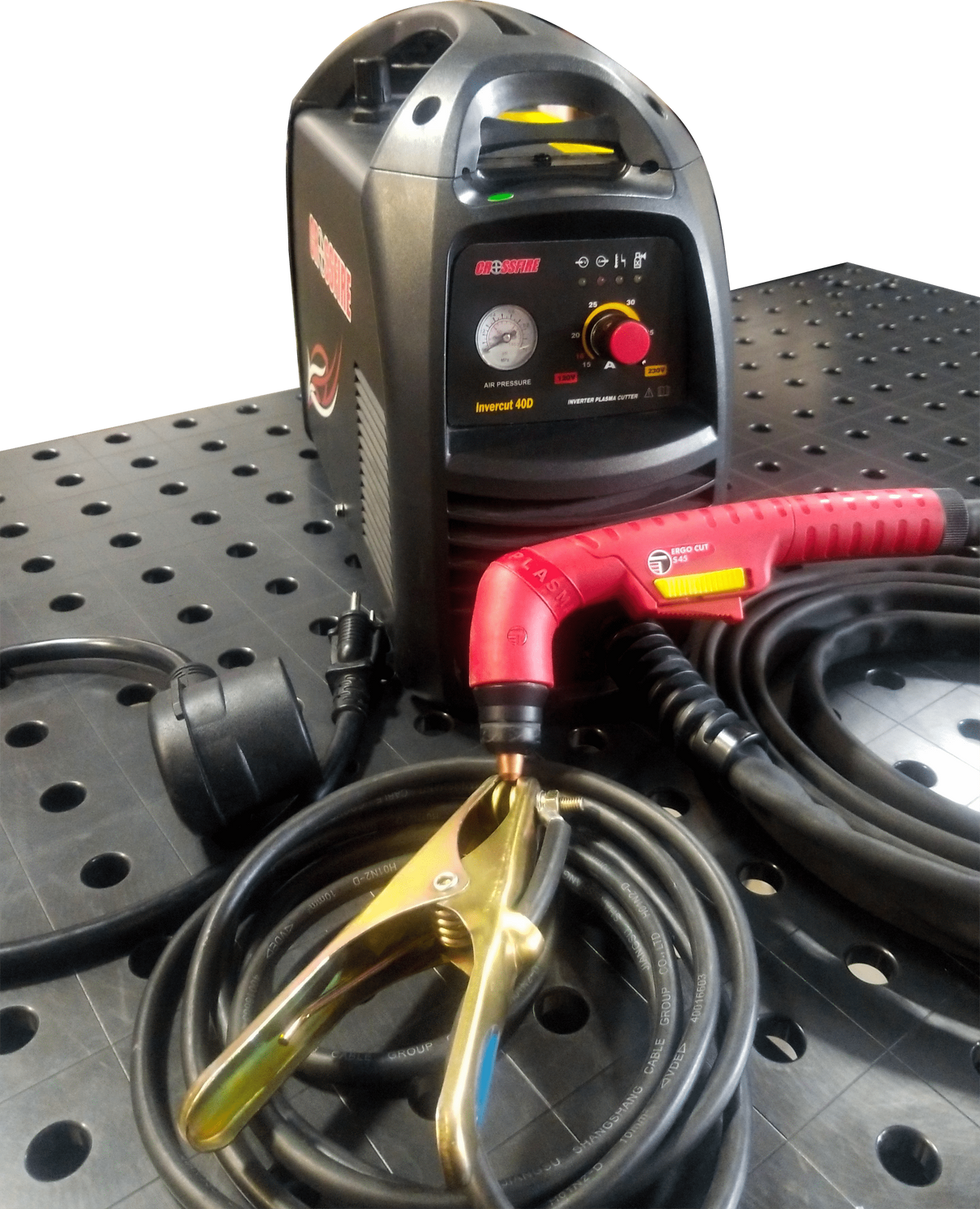

A cut above the competition, the Crossfire Invercut 40D features the latest technology in plasma cutting. The proven, easy to handle torch design assures smooth cutting performance and maximum parts life. The Invercut 40D demonstrates highly efficient power conversion, capable of cutting 3/8” steel and severing up to 1/2” The Invercut 40D is also great for cutting aluminum and stainless steels up to 1/4”. A pilot arc starting circuit assures positive cut initiation and allows for hassle free cutting of expanded metals. This feature rich machine is a must for metal fabrication shops, auto body repair, construction sites, farm and ranch or the serious home hobbyist. All with the versatility of 115V/230V Input power.
Need Consumables?
Features
- Built in pressure gauge/Adjustment control
- Trouble shooting indicator lights
- 13 ft. Torch
- Pilot arc for cutting expanded metals
- 10 ft. Ground cable and clamp
- Operates with 4.5 CFM @ 60 PSI
- Cuts 3/8” mild steel/severs 1/2”, 1/4” stainless/aluminum
- Thermal overload
- 6.5 ft. dual volt power cord and plug
|
Rated Input |
115/230 Volt |
|
Part Number |
CF-99540 |
|
Output |
16A @ 115V |
|
Duty Cycle |
35% @ 40A |
|
Gas Flow |
4.5 CFM @ 60 PSI |
|
Dimensions |
H. 11.5” (290 mm) W. 6” (150 mm) L. 16” (400 mm) |
|
Weight |
Net: 17.5 lb (8 kg) |
