S 512 P Voltage Sensing Wire Feeder

S 512 P Voltage Sensing Feeder

309-138

Precision and Portability for Versatile Welding Applications

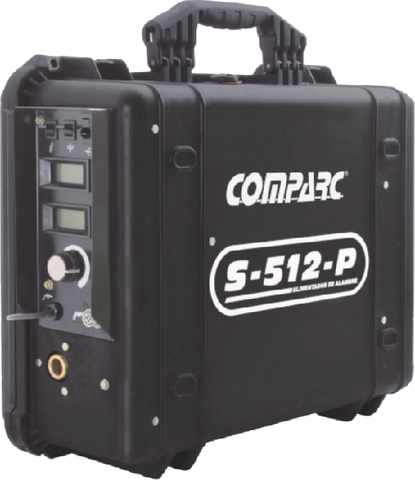

The Comparc S 512 P Voltage Sensing Feeder is the ideal companion for welders who need a lightweight yet powerful wire feeder for various field applications. Compatible with the Bronco 255, this feeder offers a range of features designed for optimal performance and ease of use. With an arc voltage range of 14 to 110 VDC and a 400A capacity at a 60% duty cycle, the S 512 P provides dependable power to handle demanding welding tasks with ease.

Engineered for portability, the S 512 P is easy to carry and includes an environmentally protected PC board for enhanced durability. A built-in gas valve, contactor, and digital meter for voltage, current, and wire speed ensure that you maintain precise control over your welding parameters. Supporting wire speeds from 60 to 850 inches per minute and wire diameters from 0.023" to 5/64", this feeder is versatile enough to tackle a wide range of projects.

Designed for convenience, the S 512 P accepts spools up to 12" in diameter and includes a drive roll set of 0.9 and 1.2 mm (0.035" - 0.045"), making it a reliable choice for both on-site and workshop settings.

Specifications

• Number of rollers: 2
• Arc Voltage range: 14 - 110 VDC
• Input Circuit Capacity: 400A @ 60% duty cycle
• Wire Speed: 60" - 850" per min
• Wire Diameter: .023" - 5/64" (0.6mm - 2.0mm)

Features

• Easy to carry and light weight
• Environmentally protected pc board
• Gas valve
• Digital meter for voltage and current/ wire speed
• Accepts spools up to 12" in diameter
• Contactor
• Includes drive roll set of 0.9 and 1.2mm (0.035" - 0.045')

Compatible with the Comparc Bronco 255
