Flame Tech  |  SKU: 0901-3000

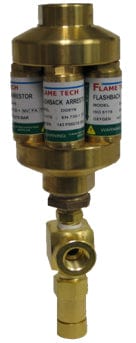

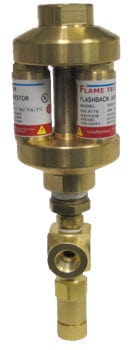

SiMax Series Inline and Point of Suppy Flashback Arrestor

$1,837.55 CAD

GREAT CHOICE! THIS PRODUCT QUALIFIES FOR FREE SHIPPING (*SOME EXCEPTIONS APPLY).

Model
Fuel

Delivery and Shipping

This product qualifies for free shipping offers. (*Some exceptions apply).

Large equipment, bulk or overweight products may incur additional freight charges.

Description

SiMax Series Inline and Point of Suppy Flashback Arrestor

The (SIMAX) Flame Tech Flash Arrestor series provide a full range of dry type (no water or fluid to check or replenish) flashback, gas reverse flow, and hose burn back protection in a compact economical package. SIMAX series flashback arrestors are approved safety devices under ANSI Z49.1999 safety guidelines and help meet OSHA, NFPA, and other strict industry Safety standards (see listings of approvals and specifications below). They are ideal for high volume gas flow applications in pipelines and manifolds. SIMAX units available in sizes 3, 5 & 8 with optional pipe away relief valve assemblies.

PART NUMBERS
SiMax-3, SiMax-5, SiMax-8



* NFPA 51 requires all in-line flash arrestors, coming from bulk storage tanks (oxy & fuel gas), must have a relief valve.
  • Pipe-away "T" Relief Valve (250psi)    0901-3005
  • Pipe-away "T" Relief Valve (75psi)      0901-3007

gas type conversion factor chartair flow chart for simax flashback arrestors

How do inline flashback arrestors function informational diagram.

APPROVAL & SPECIFICATIONS
• UL Listed 23Y5, ISO 5175, BS 6158, EN 730
(BAM / DIN), AS 4603

SAFETY ELEMENTS
• Inlet filter (100 micron)
• Reverse Flow Check Valve
• Flame Barrier
• Thermal Cut Off Valve

MATERIALS
• BODY: Brass, Alloy 360
• INTERNALS: Brass
• FLAME BARRIER: Stainless Steel
• ELASTOMERS: Neoprene (NPR
