TIG Welder Stick Welder Single Phase Input Power AC/DC Output CSA Approval

TIGPAC 210 AC/DC

  • Sale
  • Regular price $1,725.00 CAD


TIGPAC 210 is a digital model with high end MCU technology., suitbale for both automatic application and manual welding. It offers multiple parameter adjustments to ensure perfect welding for stainless steel (DC) welding and Aluminum (AC) welding.

Features and Benefits

  • Portable digitial AC/DC machine, high efficient inverter technology
  • Perfect welding quality on heat-sensitive material and aluminum
  • Controlled AC wave, including balance, AC frequency
  • Fully controlled pulse wave, including pulse duty cycle, base current and high speed pulse frequency
  • HF and lift arc ignition, outstanding arc starting performance
  • PFC module, reduce harmonic wave input, improves power efficiency

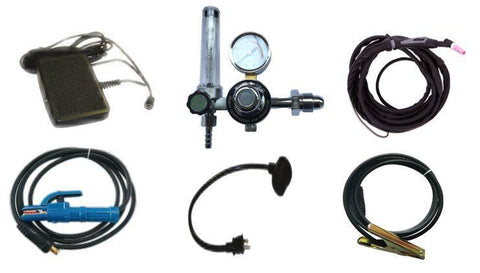

Includes

  • 6 ft. power input cord and 230V plug
  • 115V power adapter
  • 10' Ground Cable with clamp
  • Flow Gauge CGA580 with 10' gas hose
  • Remote Foot Control Kit
  • WP26 Welding torch with 12.5 ft lead
  • Consumable Starter Kit

Rated Input

115/230 Volts
Single Phase
50/60 Hz

Part Number

CF-99620

Rated Output



TIG
3 - 140 @ 115V
35% Duty Cycle @ 140A

TIG
3 - 210 @ 230V
35% Duty Cycle @ 210A

Stick
10 - 110A @ 115V
35% Duty Cycle

Stick
10 - 170 @ 230V
35% Duty Cycle @ 170A



Dimensions

H. 11.7” (298 mm) W. 9.4” (240 mm) L. 16.1” (409 mm)

Weight

Net: 25.2 lb (11.5 kg)
