Spitfire 260 - Engine Welder Generator - COMING SOON
Description
Description
Please contact for freight rates prior to purchase.

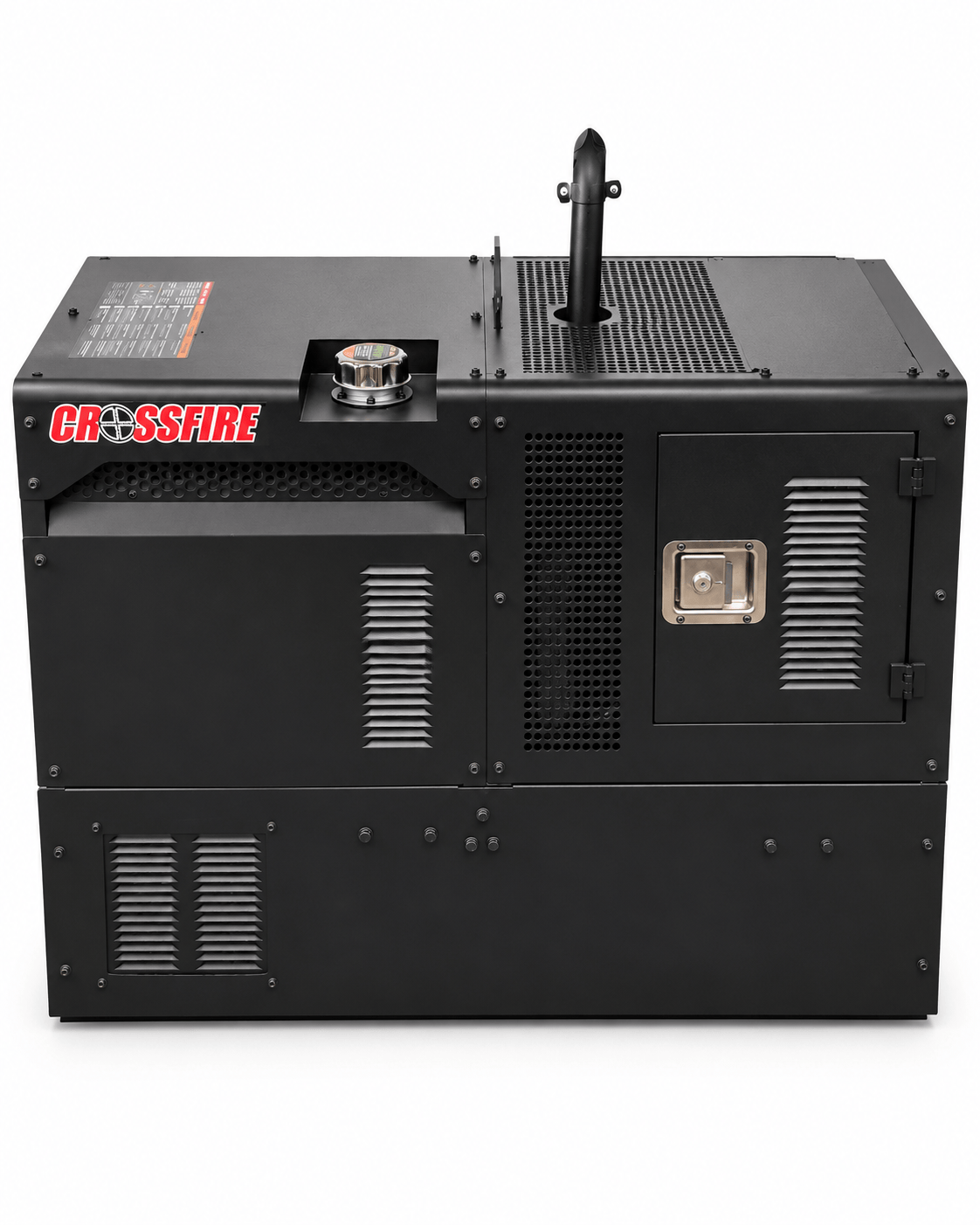

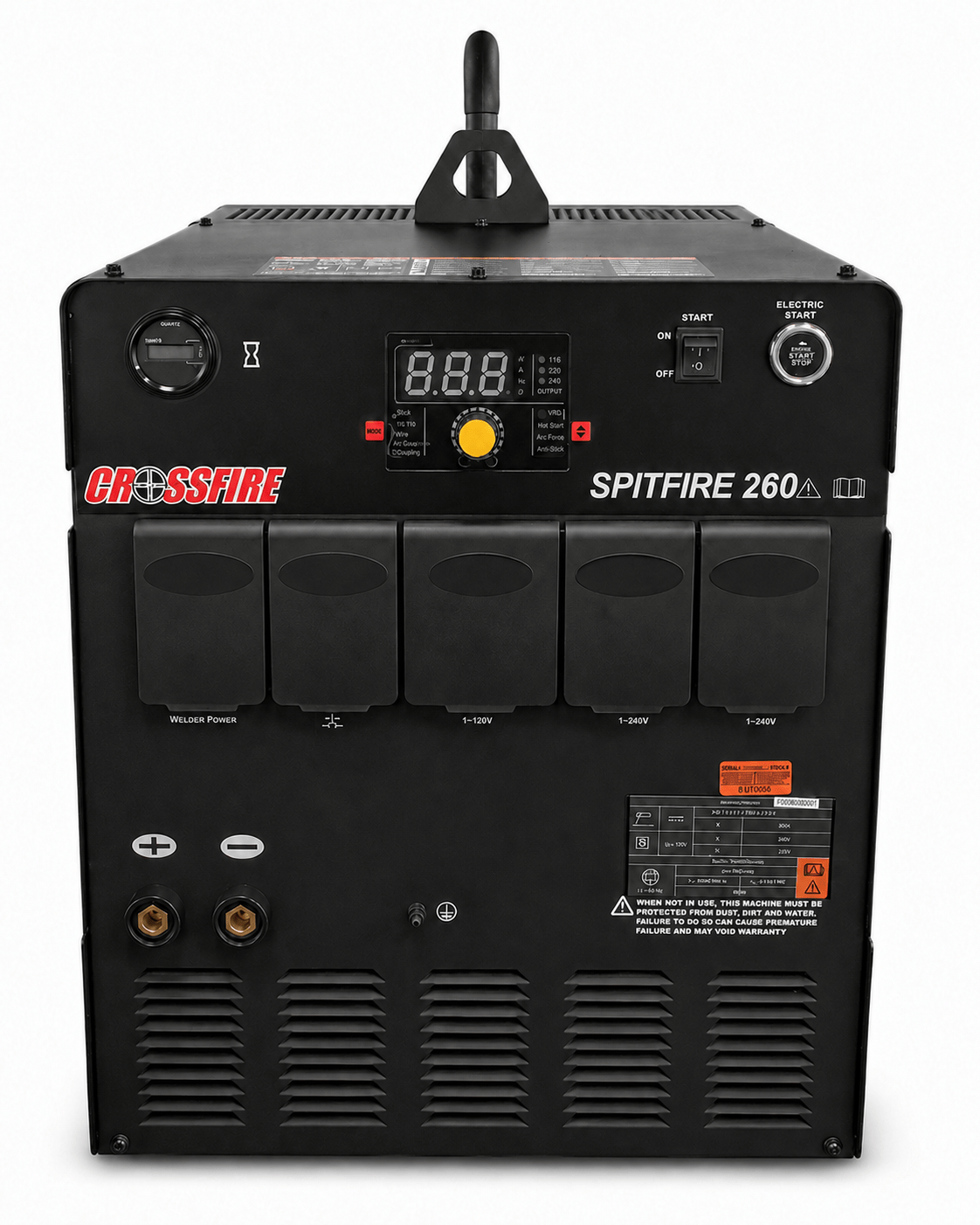

Spitfire 260 Engine Welder Generator - Ducar DHT720E Twin-Cylinder Engine
CF-99445
Professional 260A DC Welding Performance. 10kW Generator Power. Built Around the Reliable Ducar DHT720E Twin-Cylinder Engine.
The Crossfire Spitfire 260 is a rugged engine-driven welder generator designed for field repair, farm maintenance, construction sites, pipeline work, mobile service trucks, and remote locations where utility power is unavailable.
Powered by the proven Ducar DHT720E V-Twin gasoline engine, the Spitfire 260 delivers smooth DC welding performance up to 260 amps while simultaneously providing 120V and 240V auxiliary power for tools, lights, grinders, pumps, and jobsite equipment.
Whether you're burning 3/32", 1/8", 5/32", or 3/16" electrodes, the Spitfire 260 provides stable arc characteristics and dependable output in demanding environments.
Key Features
• Powerful Ducar DHT720E V-Twin Gasoline Engine
• 260A DC Welding Output
• Smooth & Stable DC Arc Performance
• Adjustable Welding Current from 60A - 260A
• Supports 2.5mm - 5.0mm Welding Electrodes
• 10,000W Continuous Generator Output
• 11,000W Peak Generator Output
• 120V & 240V Auxiliary Power Outlets
• Electric Start System
• Heavy-Duty Industrial Enclosure
• Large Fuel Capacity for Extended Runtime
• Ideal for Mobile Welding, Construction, Farm & Remote Job Sites
| Specification | Spitfire 260 |
|---|---|
| Welding Output Type | DC |
| Welding Current Range | 60A - 260A |
| Rated Welding Current | 260A |
| Open Circuit Voltage | 65-75V |
| Duty Cycle | 185A @ 100% |
| 205A @ 80% | |
| 260A @ 50% | |
| Electrode Capacity | 2.5mm - 5.0mm |
| Generator Rated Output | 10kW |
| Generator Maximum Output | 11kW |
| Generator Voltage | 120V / 240V |
| Generator Frequency | 60Hz |
| Phase | Single Phase |
| Engine | Ducar DHT720E |
| Engine Type | Air-Cooled V-Twin Gasoline |
| Engine Displacement | 713cc |
| Engine Starting System | Electric Start |
| Fuel Type | Regular Unleaded Gasoline |
| Fuel Tank Capacity | 45L |
| Engine Oil Capacity | 1.3L (1.5L with filter change) |
| Dimensions | 1212 x 610 x 950mm |
| Weight | Approx. 350kg |
