TECNA ATEX Zero-Gravity Balancers
Description
Description

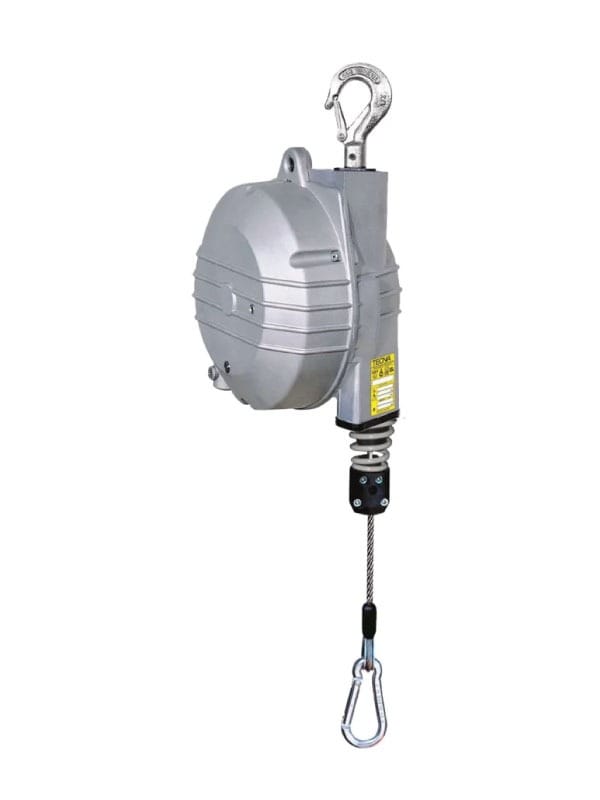

TECNA ATEX-family zero-gravity balancers counterbalance a suspended tool or load through the working range rather than pulling it back to a rest position. They are intended for applications where ATEX-rated equipment has been specified.
How to select
Match the complete suspended load to the published rated working range, then confirm the required configuration, including friction-brake options where available.
Canadian application note
ATEX is not the same as Canadian approval. The hazardous-location classification and applicable Canadian installation requirements must be reviewed for the specific site.
Technical reference: TECNA manufacturer data. Final selection must match the complete suspended load, stroke, environment and required configuration.
Representative ATEX-family applications
- 4–10 kg: process tools and suspended equipment requiring controlled movement.
- 10–25 kg: heavier process tooling and fixtures requiring counterbalanced handling.
Canadian note: ATEX is not the same as automatic Canadian approval. Confirm the site's hazardous-location requirements separately from balancer load selection.
Selection support
Choose by load, travel and environment
A spring balancer is selected by its rated working range, not simply the largest number in the product name. Use the complete suspended load, then confirm stroke, environment, rope or hose type, mounting geometry and any application-specific requirements before choosing the exact model.
Canadian ergonomics reference: CCOHS recommends tool balancers to reduce the effort of holding and operating tools, and Government of Canada guidance notes that frequently used heavy tools can be suspended to help support and counterbalance their weight. CCOHS ↗ Canada.ca ↗
Include the tool, accessory, hanger and any supported hose or cable contribution.
Match stroke to the real vertical working area so the tool stays usable throughout the task.
Confirm standard, washdown, ESD, ATEX-family or outdoor/cold-weather requirements.
Picture the load
What could this balancer family support?
These are representative application examples, not model approvals. Actual tools vary widely in weight, battery, socket, hose and accessory configuration. Always weigh the complete suspended assembly and match it to the manufacturer's published working range.
TECNA identifies tools, fixtures, welding guns, hoses, pipes, charging connectors, cables and suspended equipment among spring-balancer applications. Manufacturer application overview ↗
Compare every model in this family12 configurations
Compare rated range, travel/configuration, SKU and price in one place. The variant title contains the load range and configuration exactly as it is sold.
| Rated range / travel / configuration | SKU | Price |
|---|---|---|
| 8.8–15.4 lb (4–7 kg) / Standard | TE9354AX | $999.46 CAD |
| 8.8–15.4 lb (4–7 kg) / Friction brake | TE9354.FAX | $1,048.74 CAD |
| 15.4–22.0 lb (7–10 kg) / Standard | TE9355AX | $1,016.40 CAD |
| 15.4–22.0 lb (7–10 kg) / Friction brake | TE9355.FAX | $1,059.52 CAD |
| 22.0–30.9 lb (10–14 kg) / Standard | TE9356AX | $1,025.64 CAD |
| 22.0–30.9 lb (10–14 kg) / Friction brake | TE9356.FAX | $1,073.38 CAD |
| 30.9–39.7 lb (14–18 kg) / Standard | TE9357AX | $1,036.42 CAD |
| 30.9–39.7 lb (14–18 kg) / Friction brake | TE9357.FAX | $1,085.70 CAD |
| 39.7–48.5 lb (18–22 kg) / Standard | TE9358AX | $1,045.66 CAD |
| 39.7–48.5 lb (18–22 kg) / Friction brake | TE9358.FAX | $1,093.40 CAD |
| 48.5–55.1 lb (22–25 kg) / Standard | TE9359AX | $1,054.90 CAD |
| 48.5–55.1 lb (22–25 kg) / Friction brake | TE9359.FAX | $1,104.18 CAD |
Documentation, parts & fleet support
Buying the balancer is only the first step.
TECNA publishes current user manuals by model family and specifies original TECNA spare parts for maintenance. If you are replacing or maintaining an installed unit, send us the model and identification-plate information so the request can be tied to the correct family.
More than one workstation?
Do not quote the shop one balancer at a time.
Send the full tool list and quantities. We can consolidate the selection by station, identify where models can be standardized, and review current project pricing and lead times as one package.
Tell us the exact tool or load.
Send the tool make/model, complete suspended weight, required travel and environment. We can confirm which rated range and configuration actually fits.
