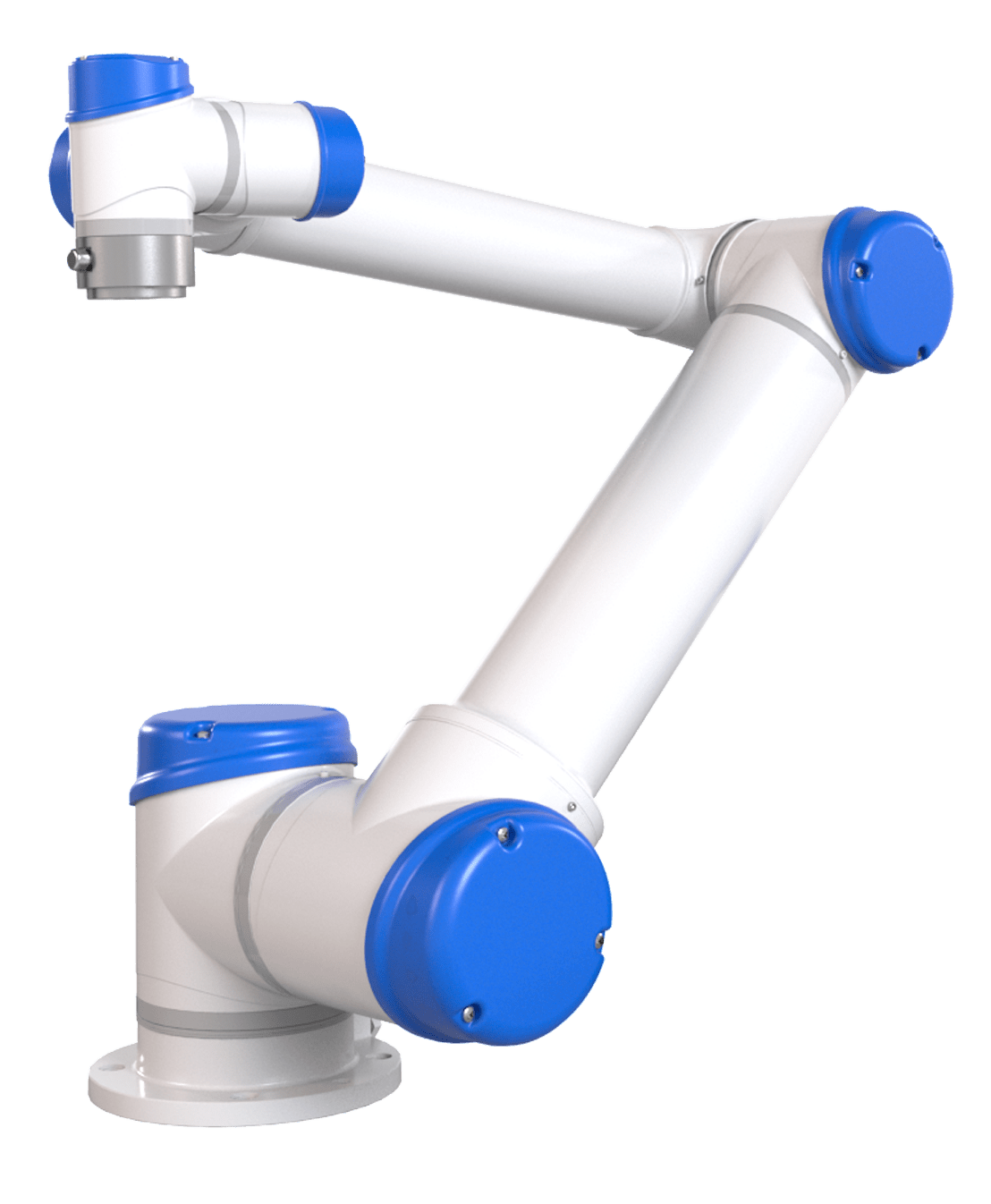

Cobot & controls
The robot, welding software, teaching controls and end-tool functions provide the motion and programming side of the welding cell.
1
de
9
Chargement...
Crossfire Welders | SKU :
CF-85100
Système de soudage cobot Crossfire
$79,500.00 CAD
Prix unitaire
/
This is a welding-automation project, not a normal cart purchase. Start by checking whether the parts, fit-up, fixtures and production requirements are a practical match for cobot welding.
Purchasing path: 1) check application fit, 2) submit the welding application, 3) confirm system configuration and quote, 4) plan implementation. The listed product price covers the listed system; application-specific requirements are reviewed separately before order.
System architecture
A Cobot Welding Cell Is More Than the Robot
The Crossfire Cobot Welding System combines the robot, welding equipment and workholding platform. Final configuration should be based on the actual parts and welding process.
Welding package

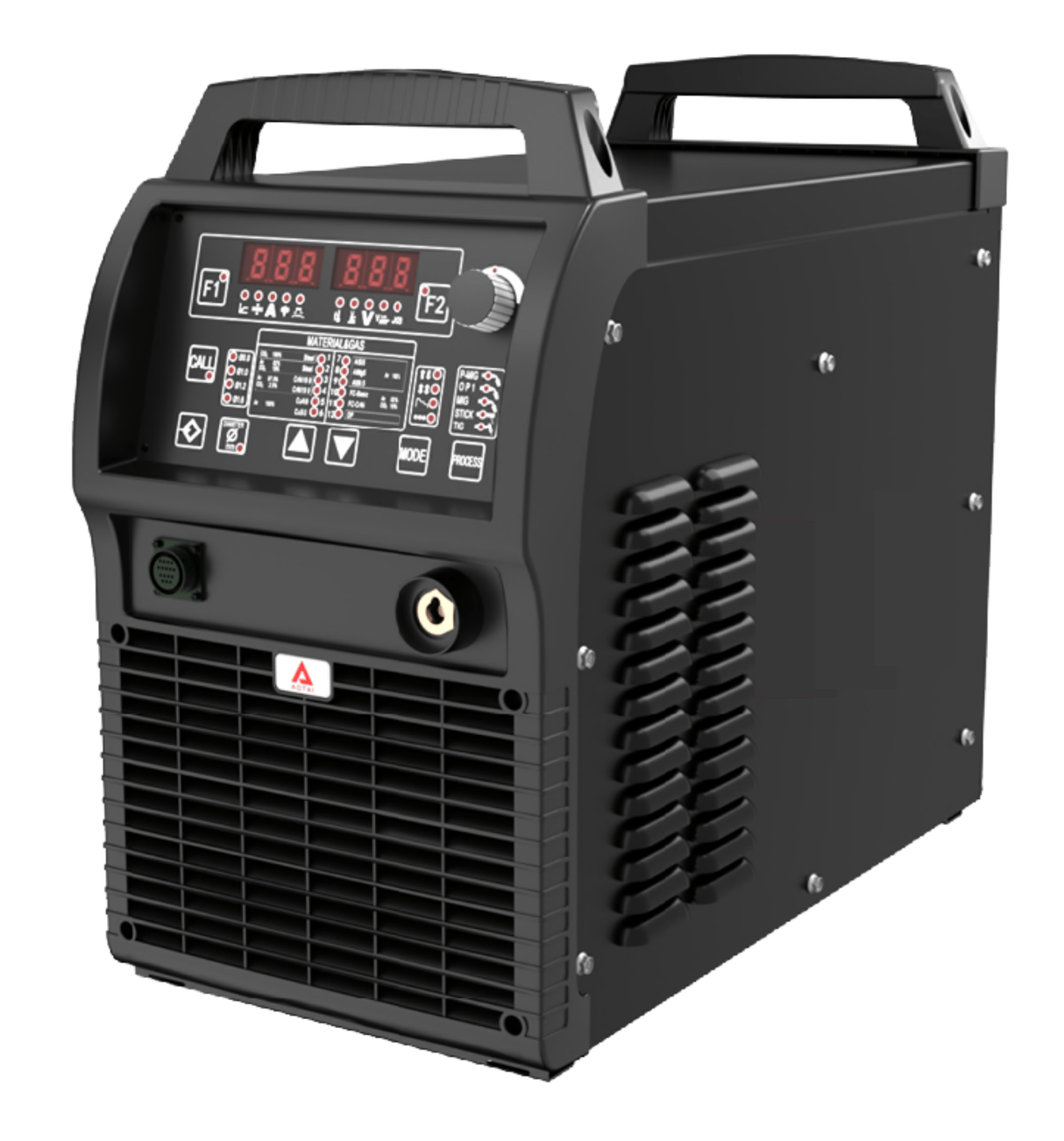

The welding power source, torch, wire-feeding system, shielding gas and consumables need to be matched to the application as one process.

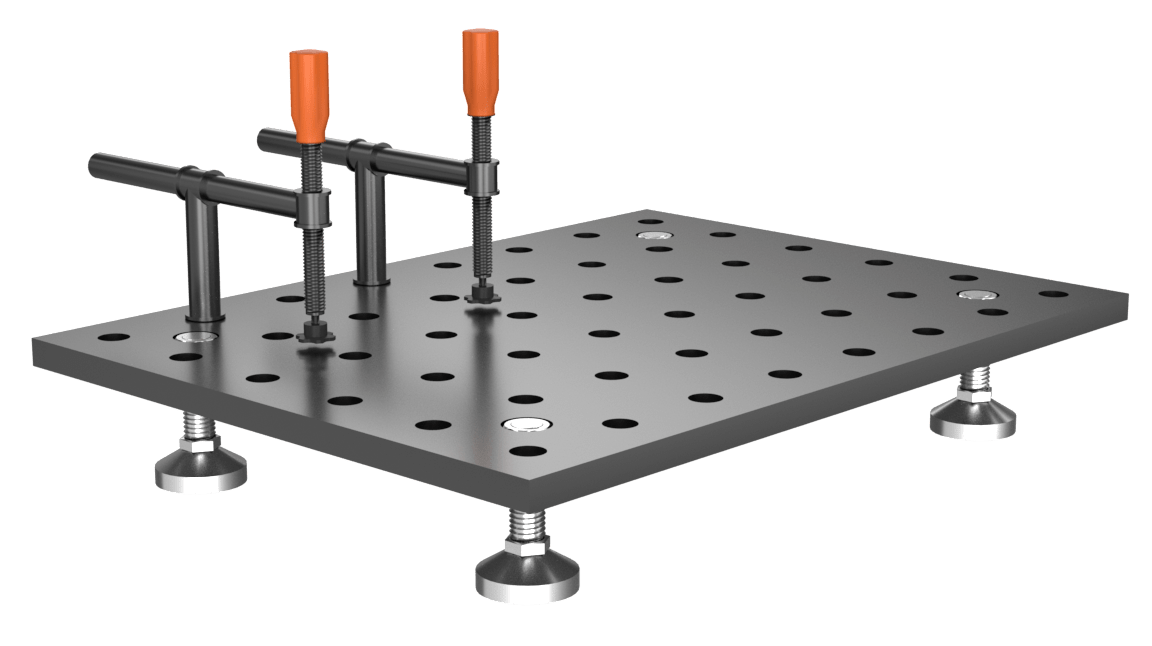

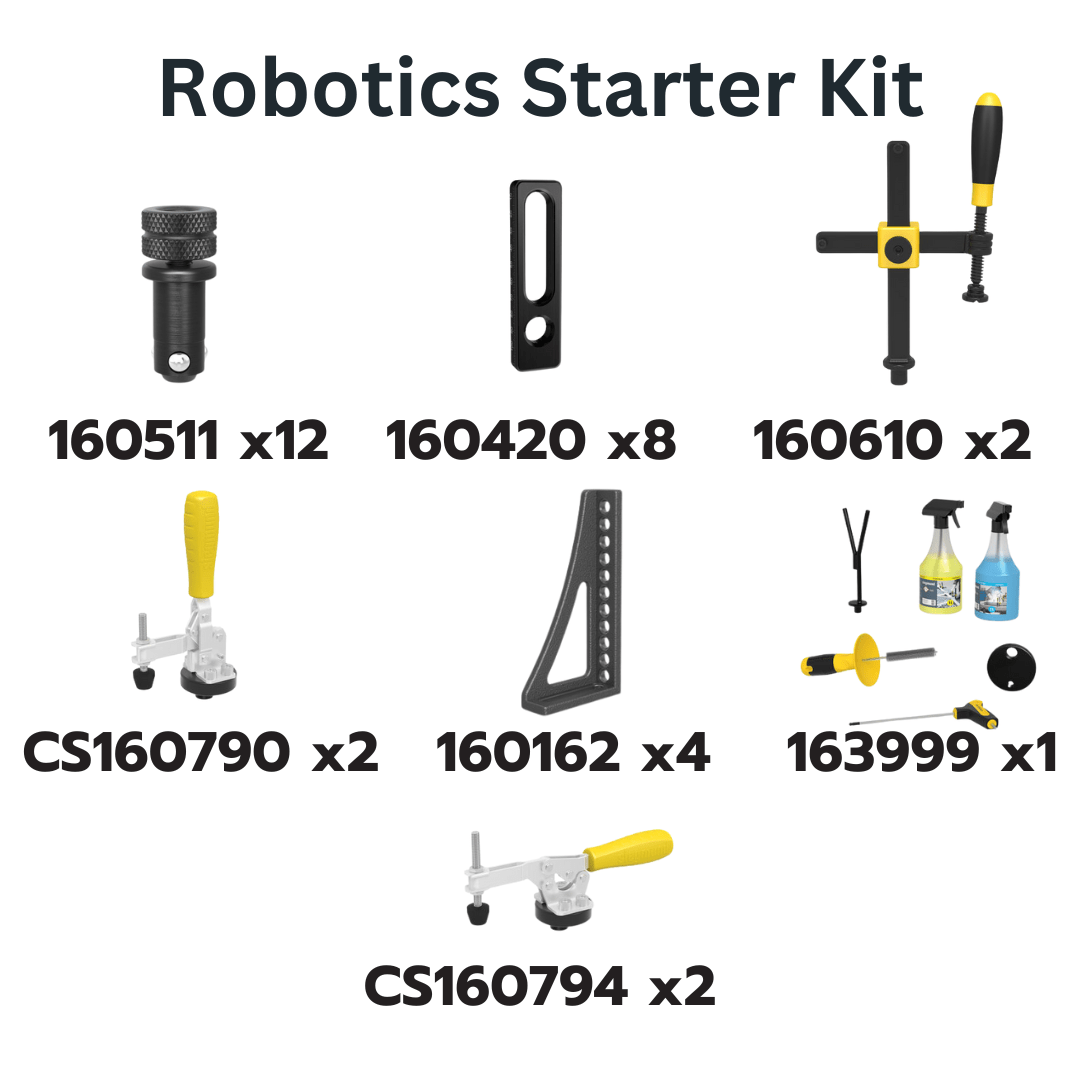

Platform, fixtures & part presentation
The welding platform, fixture approach, part repeatability and torch access can determine whether an application is practical to automate.
Start with the application before finalizing the equipment.
Open Cobot Welding Hub
Use the Cobot Hub to check application fit, review shop-readiness resources and submit the welding application for a proper review.
Cobot application review
This is a welding-automation project, not a normal cart purchase.
Crossfire can review the part, weld path, material, fit-up, fixture approach, production volume and current welding process before recommending the next step.
- Part repeatability and weld access
- Fixture and part-preparation requirements
- Welding process, wire and consumables
- Production volume and current bottlenecks
- Operator, floor-space and implementation considerations
Système de soudage cobot Crossfire
Le système de soudage robotisé Crossfire est la solution idéale pour automatiser les processus de soudage avec précision, efficacité et flexibilité. Conçu pour répondre aux besoins de la production moderne, ce système avancé combine une technologie robotique de pointe et une intégration logicielle intuitive pour des résultats exceptionnels.
Présentation du produit

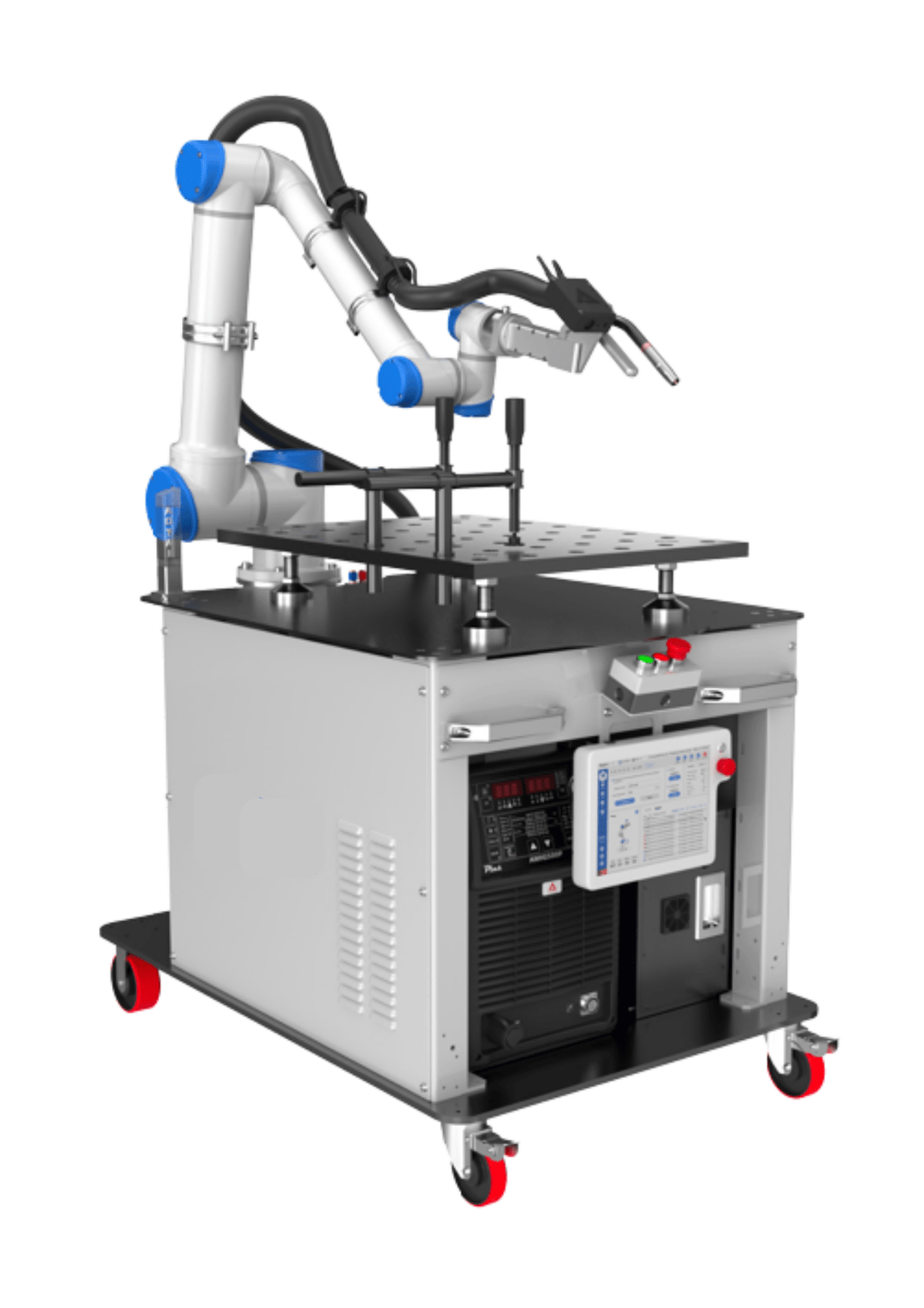

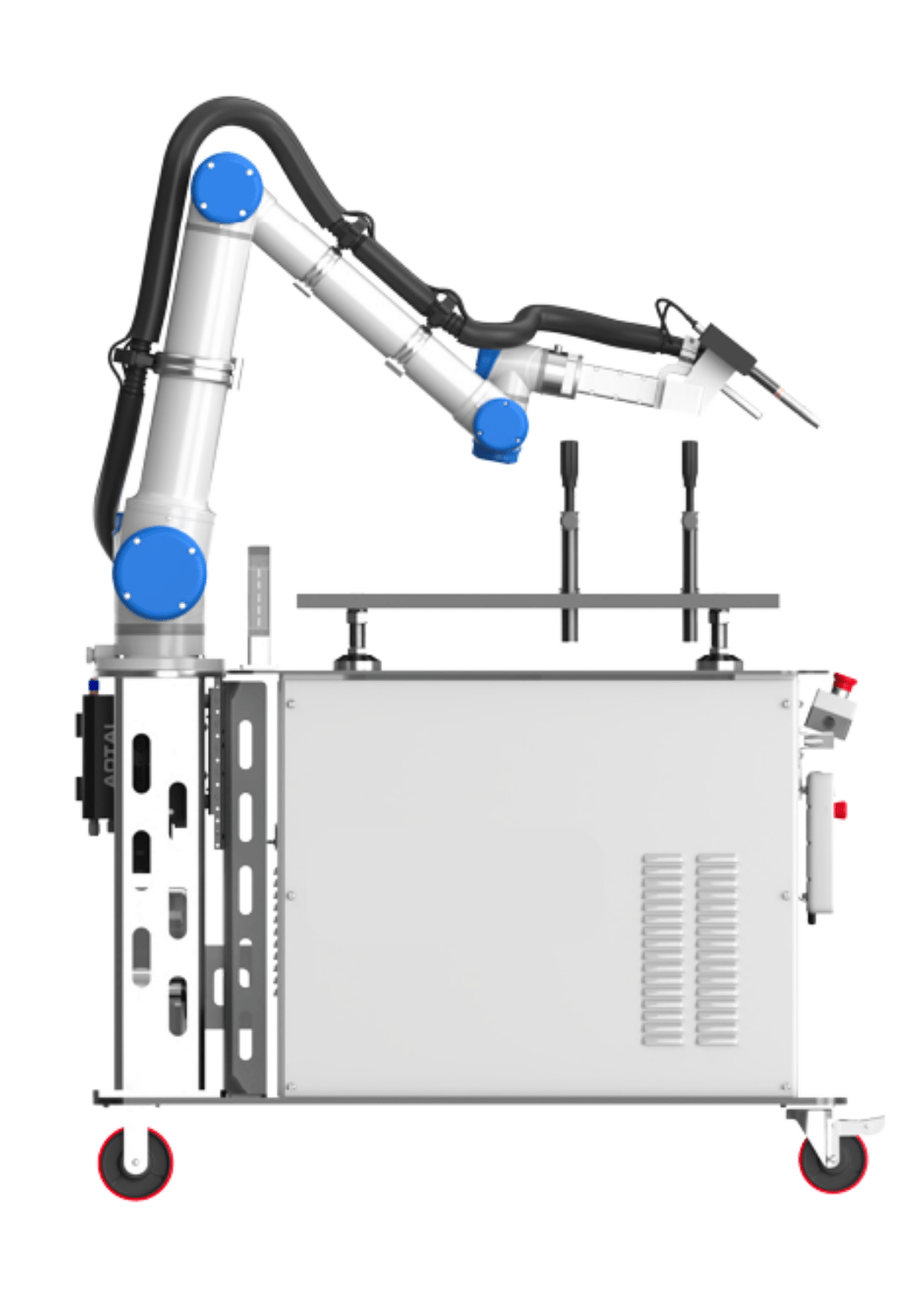

Le système de soudage Crossfire COBOT se compose de trois éléments : un cobot, une machine à souder et une plateforme de soudage. Il est conçu pour simplifier les tâches de soudage complexes et s’adapter à diverses applications grâce à des composants optionnels tels qu’un système de positionnement laser et une table de soudage mobile.
Caractéristiques principales
- Logiciel de soudage à l'arc avancé
- S'intègre parfaitement au système de commande du robot pour des transitions fluides entre les modes de soudage.
- Offre des réglages guidés pour des ajustements de paramètres rapides et simples.

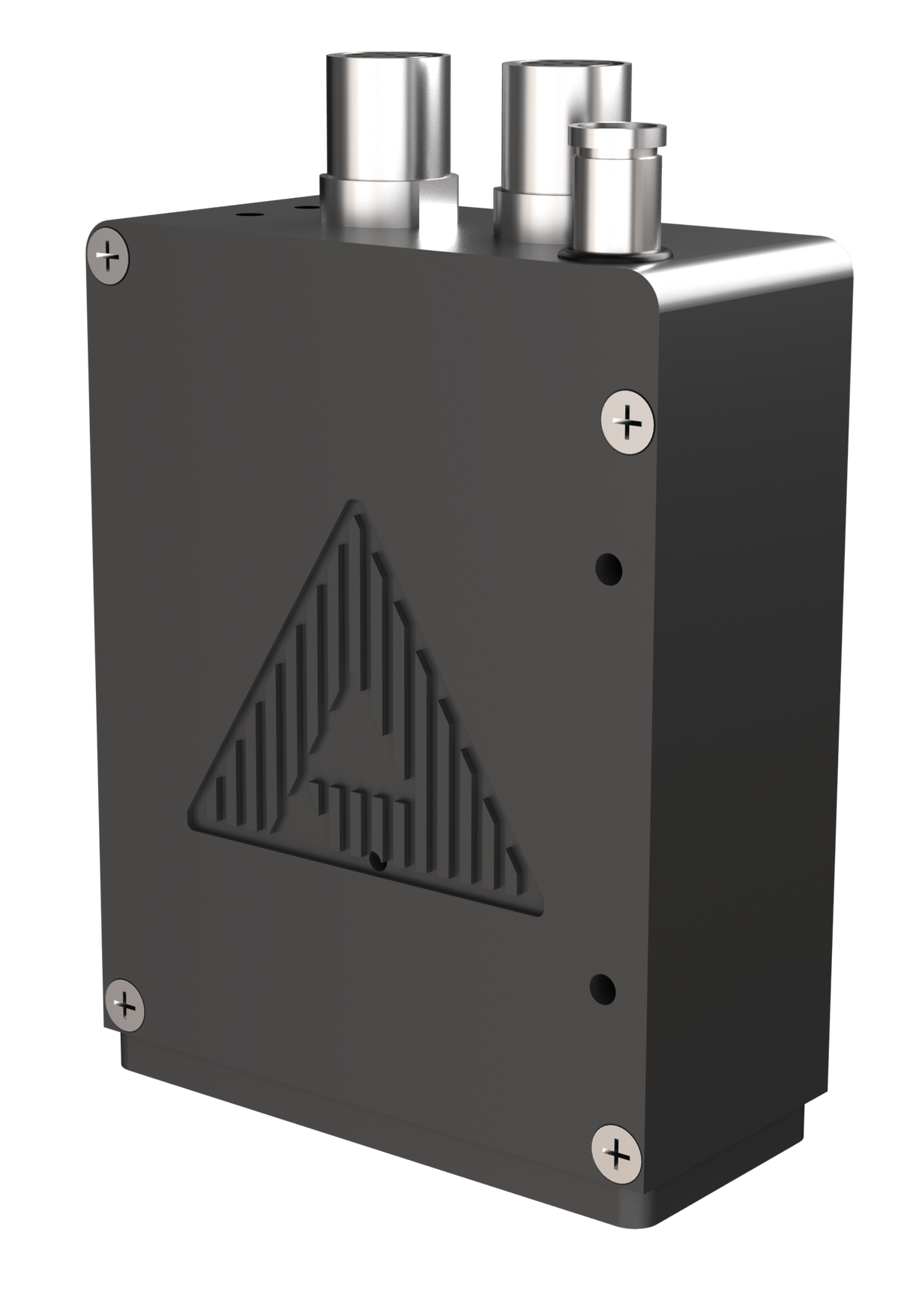

- Système de détection laser intégré

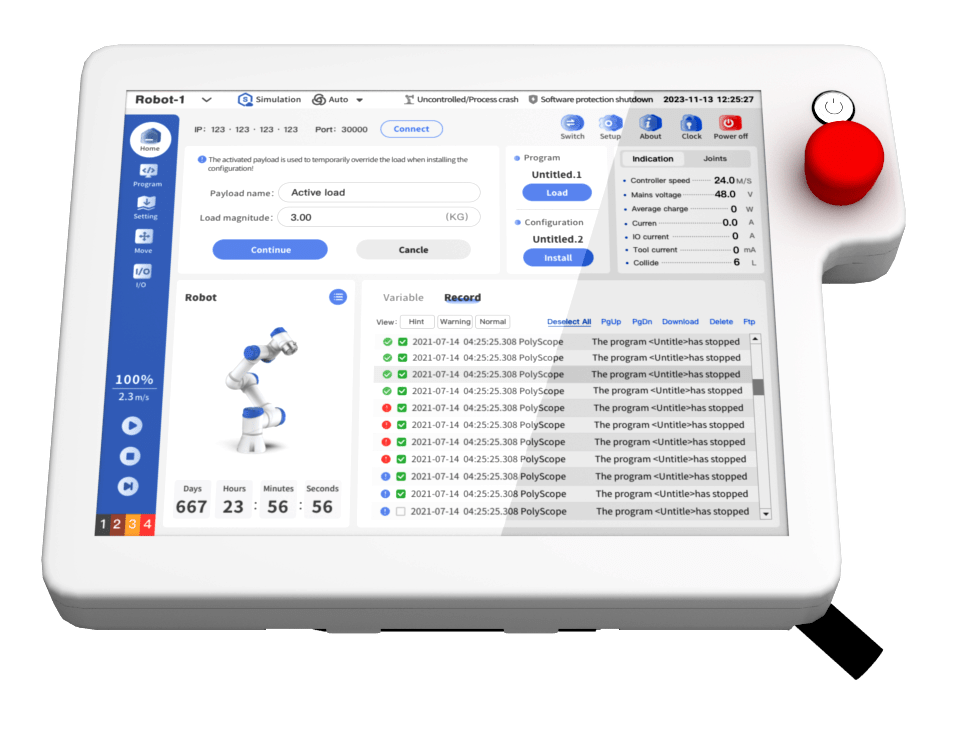

- Permet un positionnement précis directement depuis le pupitre de commande.
- Outil d'extrémité convivial
- Boutons intégrés pour un changement de mode et un enregistrement de points sans effort.

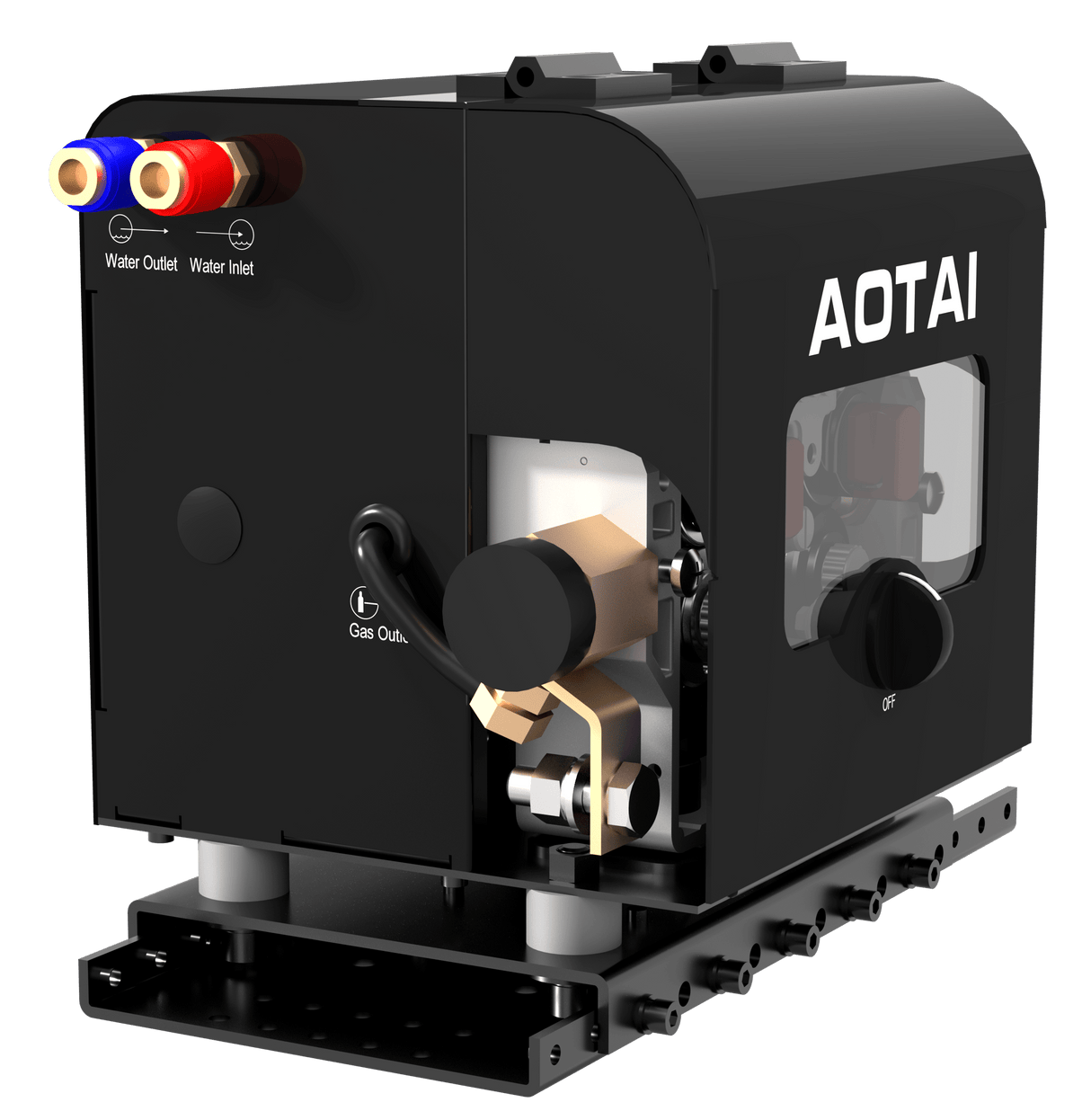

- Système d'alimentation de fil précis
- Doté d'un moteur 4WD+Encodeur et d'une commande entièrement numérique pour une alimentation de fil stable et précise.
- Joints de soudure polyvalents
- Prend en charge les coutures linéaires, circulaires, composites et rectangulaires avec des options de programmation rapide.
Cobot resources
System Documents & Technical Resources
Keep the system literature and any available operating, specification, warranty or parts documents together in one place.
From application to working process
Plan the Welding Process Around the Cobot
Once the application looks promising, review part repeatability, fixture preparation, the welding process, power source, wire, consumables and shop readiness as one system.
Application review
Start with the part, weld path, material, thickness, batch size, current process, production target and the reason automation is being considered.
Process & machine fit
Review the welding process, power source, wire, shielding gas and consumable requirements around the application rather than treating the cobot as a stand-alone robot purchase.
Fixture & part preparation
Identify repeatability, fit-up, clamping, torch access, part staging and preparation issues that can determine whether the application is practical.
Cell readiness
Review shop space, power, gas, wire delivery, operator access and the supporting equipment needed before startup.
Setup & handoff
Use the application plan and setup resources to support a more controlled transition from manual welding to a cobot-assisted process.
Ongoing welding support
Keep the welding side of the cell supported with wire, consumables, torch-related items, troubleshooting resources and future process adjustments.
A cobot is not the whole welding system.
Submit Your Welding Application
The value comes from matching automation to a repeatable welding process, stable parts and the right supporting equipment.
