1,000mm x 1,000mm Siegmund Welding Table System 16 Extreme 8.7

Please contact for shipping details.

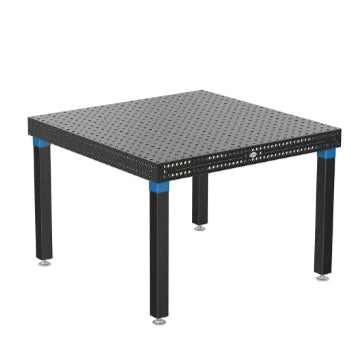

Siegmund System 16 Professional Extreme 8.7 welding table for precision fabrication, assembly and fixturing. The 16 mm bore system and 50 x 50 mm surface grid provide dense, flexible positioning for small and medium fabrication work.

Welding Table Specs and Features

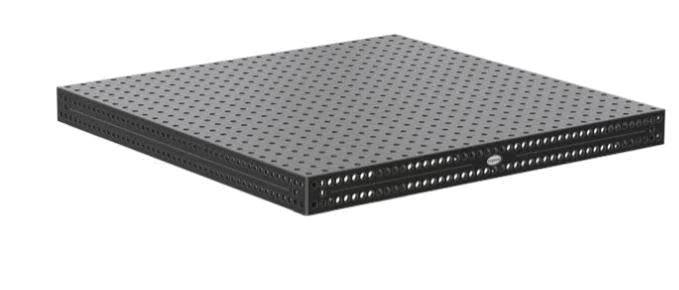

• Overall Tabletop Size: 1000 x 1000 x 100 mm (39.37" x 39.37" x 3.93")
• Borehole: Ø 16 mm (0.629")
• Series: Professional Extreme 8.7
• Material Thickness: Approx. 11.5–13 mm
• Material / Finish: Professional Extreme 8.7 hardened tool steel, plasma nitrided and BAR-coated
• Surface Hardness: Approx. 450–850 Vickers
• Siegmund Item No.: 4-160010.X7D
• Maximum Evenly Distributed Load: 4,000 kg / 8,818 lb
• Approximate Table Weight: 192 kg / 423 lb

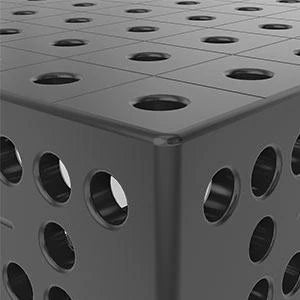

• Surface Bore Pattern: 50 x 50 mm grid
• Table Side Height: 100 mm
• Table-Side Bore Spacing: 25 mm
• Construction: reinforced with ribbing; metric scaling on the surface

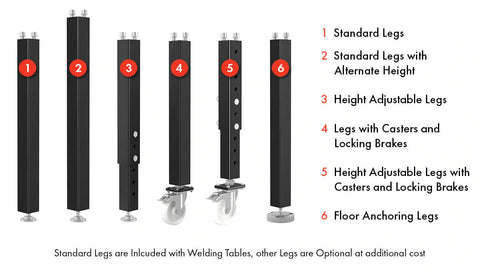

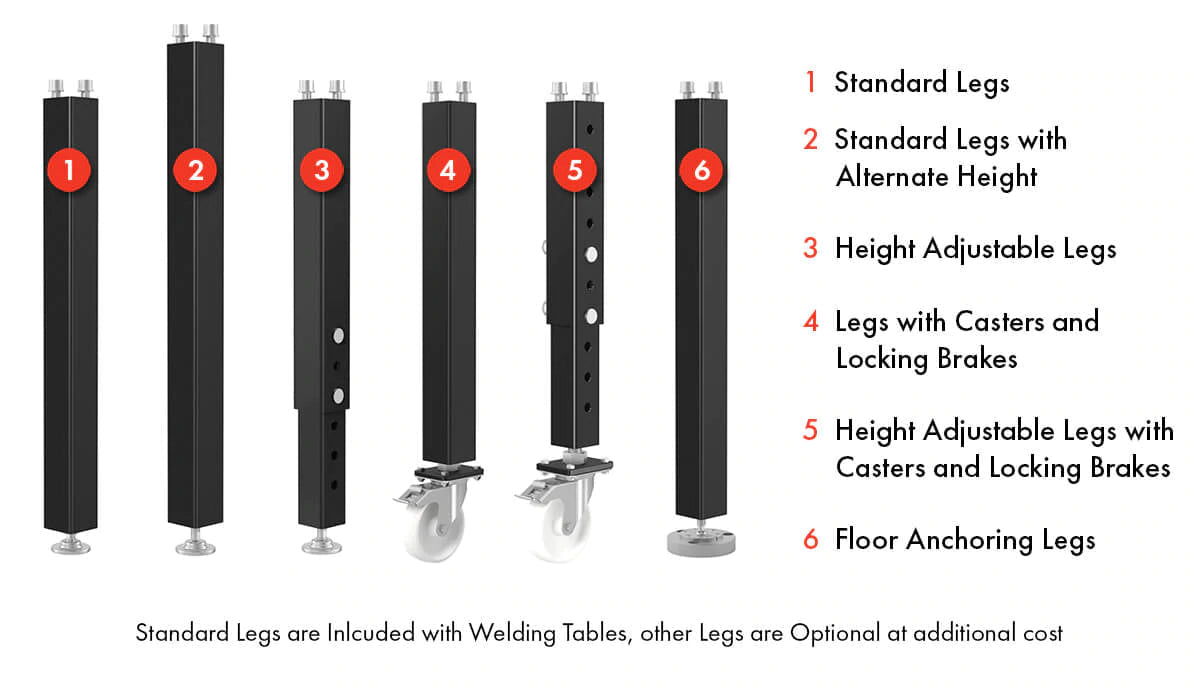

Siegmund standard legs are included. Contact Crossfire Welders for freight and alternate leg options.
