Features the Quick Acting Screws and “Swing Away” Arm. Hold parts in position during cool down to minimize distortion due to contraction. Two Quick Acting Screws. “swing away” the 3rd Axis arm for quick and easy part removal.
3-Axis Fixture, Quick Acting Screw, Two stand-offs, “Swing Away” Arm
| Part No. | Features | Slot Size (A) | Slot Width (B) | Miter Joints (C) | Jaw Length (D) | T-Clearance (E) | Jaw Height (F) | Weight |
|---|---|---|---|---|---|---|---|---|

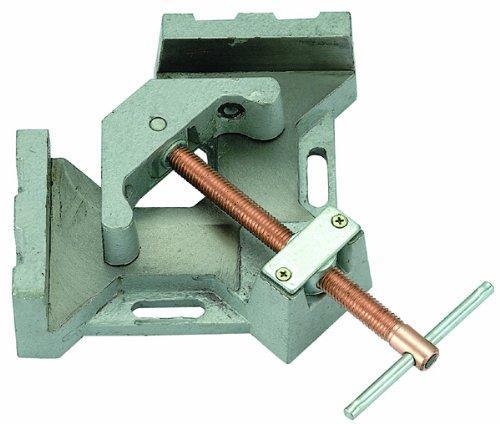

| WAC22 | Standard screw, Machined on two outside surfaces | 0.94″ (23.9 mm) |
0.31″ (8.1 mm) |
2.21″ (56 mm) |
3.54″ (90 mm) |
1.85″ (47 mm) |
1.28″ (33 mm) |
8.8 LBS (4.0 kg) |
| WAC35D | Quick Acting Screw, Two stand-offs, Machined on two outside faces | 1.18″ (30 mm) |
0.43″ (11 mm) |
3.75″ (95 mm) |
4.80″ (122 mm) |
2.45″ (62 mm) |
1.38″ (35 mm) |
11 LBS (5.0 kg) |
