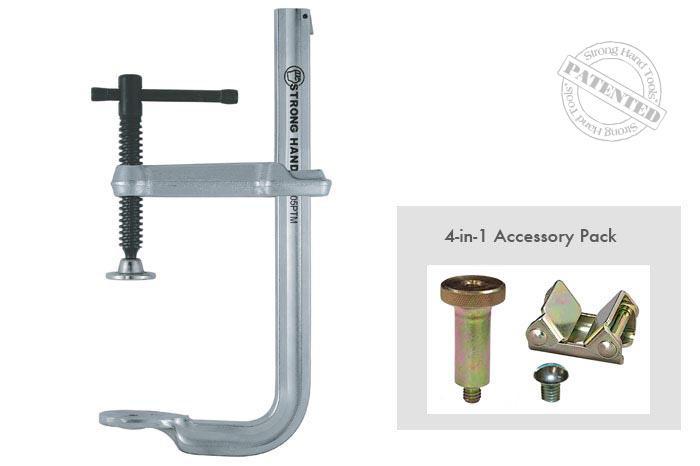

Sliding Arm Clamps with the Removable / Reversible Clamp Arm and Unique Accessories.
The three piece 4-in-1 Clamp Kit includes:
- Sliding Arm Clamp
- Extended Block
- V-Pad
All Strong Hand Tools® Utility Clamps are made of high quality heat treated steel and nickel/chrome plated for strength and durability.
Part No. | Capacity | Throat Depth | Clamping Pressure | Pads | Rail Size | Tapped Hole | Weight |
---|---|---|---|---|---|---|---|
UD45-C3 | 4-1/2″ (114 mm) |
3-1/4″ (83 mm) |
500 LBS (227 kg) |
Standard | 5/8 x 5/16″ (16 x 8 mm) |
5/16-18 (M8) |
1.3 LBS (0.6 kg) |
UD65-C3 | 6-1/2″ (165 mm) |
3-1/4″ (83 mm) |
500 LBS (227 kg) |
Standard | 5/8 x 5/16″ (16 x 8 mm) |
5/16-18 (M8) |
1.6 LBS (0.7 kg) |
UG85-C3 | 8-1/2″ (216 mm) |
4-3/4″ (120 mm) |
1,200 LBS (544 kg) |
Standard | 1 x 15/32″ (25 x 12 mm) |
3/8-16 (M10) |
4.1 LBS (1.9 kg) |
Need even more clamping pressure? Check out the Heavy Duty 4-in-1 Clamping System options.
