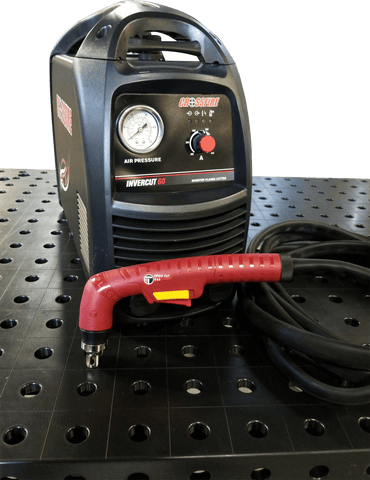

The Crossfire Invercut 60 plasma cutter offers the very latest attributes in plasma cutting technology. It is designed for maximum cutting power in its product class, capable of cutting up to 5/8” (16mm) mild steel. The 60’s rugged components and ultra-portability will satisfy both the DIY user as well as the demands of professional fabricators. The torch and cutting consumables are designed to offer prolonged life, minimizing the frequency to replace torch parts.
Need Consumables?
Features

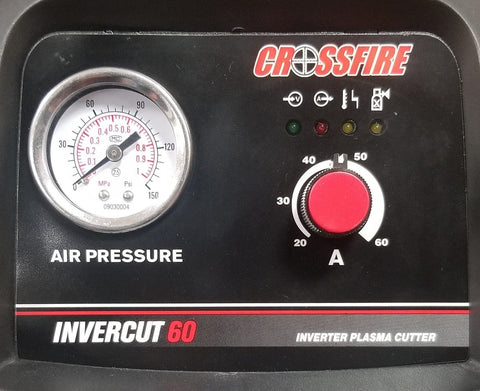

- Built in pressure gauge/Adjustment control
- Trouble shooting indicator lights

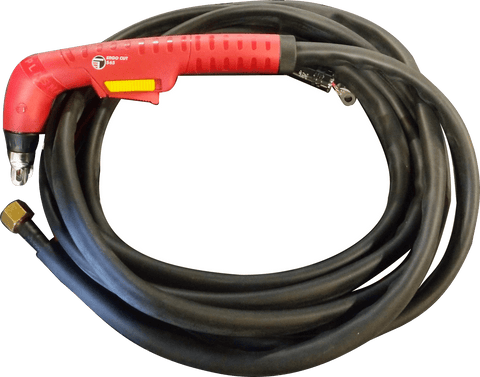

- 13 ft. Torch
- Pilot arc for cutting expanded metals
- 10 ft. Ground cable and clamp
- Operates with 4.5 CFM @ 70 PSI
- Cuts 5/8” mild steel/severs 3/8” stainless/aluminum
- Thermal overload
|
Rated Input |
230 Volt |
|
Part Number |
CF-99560 |
|
Output |
20-60A @ 230 V |
|
Duty Cycle |
30% @ 60A |
|
Gas Flow |
4.5 CFM @ 70 PSI |
|
Dimensions |
H. 13.5” (343 mm) W. 7.5” (186 mm) L. 19” (474 mm) |
|
Weight |
Net: 35.2 lb (16 kg) |
