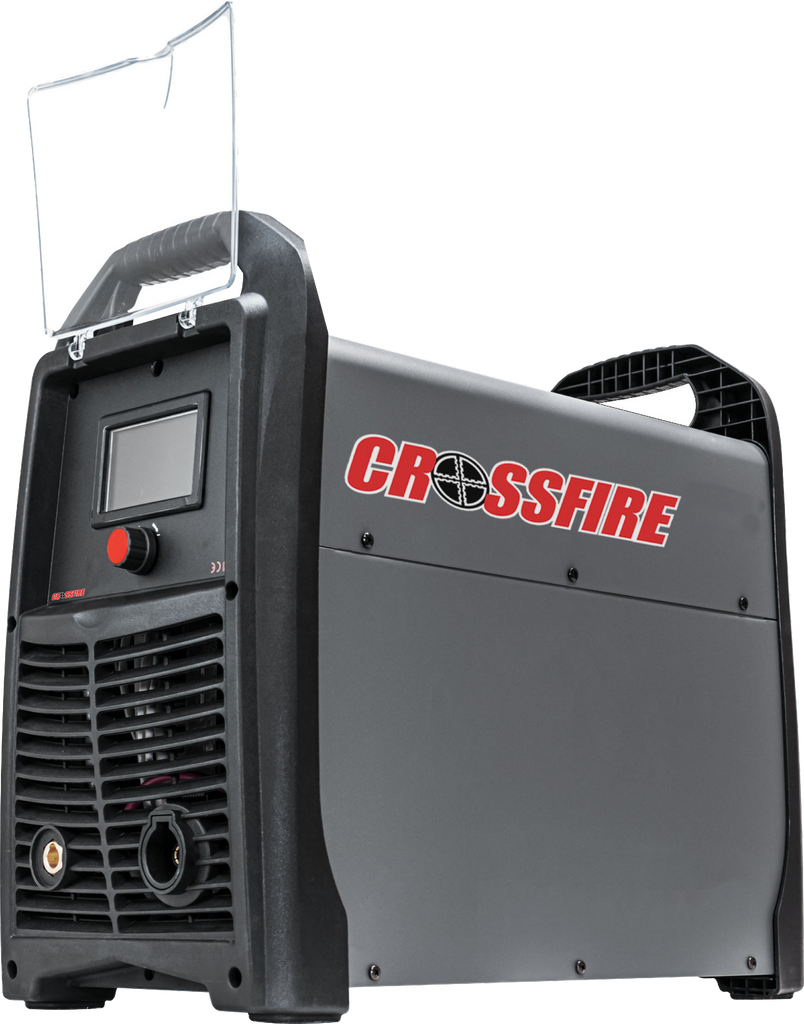

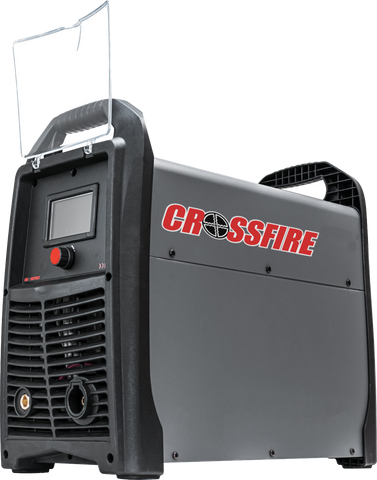

Invercut 85HD Plasma Cutter

  • Sale
  • Regular price $4,300.00 CAD


Crossfire has created a powerful, versatile, easy to operate and cost-effective
range of Invercut plasma power supplies for manual and mechanized applications.

The Crossfire Invercut 85HD systems fit different needs, from small workshops to
heavy-duty production facilities with continuous operation. Combined with the
perfectly fitting torches and cable leads, they provide outstanding cutting, gouging and grid-cutting performance.

DESIGNED FOR THE OPERATOR
    Easily control gas flow, current, and pilot arc with the included GRID mode for automatic switching between the pilot and main arc. The HD line is mobile with an ergonomic handle that reduces operator strain when cutting in multiple locations.

ON-DEMAND MECHANIZED AND AUTOMATED PERFORMANCE

   Pair with an automated solution or operate by hand to cut aluminum, stainless steel, and hardox. The HD line uses cooled, shielded plasma capable of cleanly cutting materials up to 1-1/8”.


Need Consumables?

CLICK HERE

Features

  • Industry leading 4.3" LCD Display
  • Gouging & marking capabilities
  • Automatic settings: Gas, Electricity & Pilot
  • Quick connect torch
  • Thermal overload protection
  • CNC ready
  • Max Severance: 1-1/8"  (28.5mm)
  • Piercing Capacity: 3/4"  (19mm)

Includes:

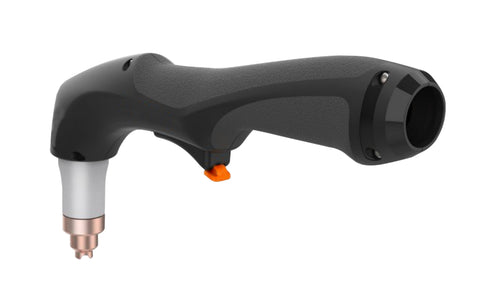

  • 105TTH 8m Hand Torch
  • 10 ft. Ground Clamp & cable

Rated Input

230V  - 1 Phase
208 - 575V  - 3 Phase

Part Number

CF-99585

Output

20-60A @ 230 V

Duty Cycle

60% @ 65A      1ph - 230V

40% @ 85A      3ph - 208V

80% @ 85A      3ph - 460/575V

Gas Flow

3.5 CFM @ 75 PSI (5.2 bar)

Dimensions

H. 16” (560 mm) W. 10.5” (265 mm) L. 22” (400 mm)

Weight

Net: 64 lb (29 kg)
