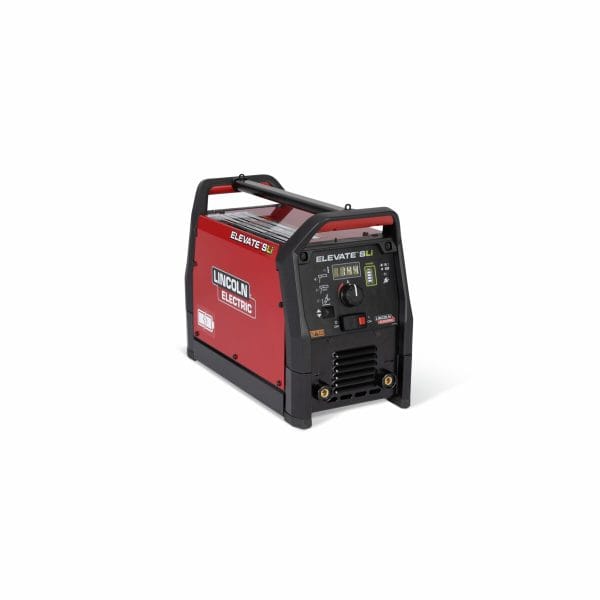

Lincoln Electric ELEVATE SLi Battery-Powered Stick/TIG Welder

Lincoln Electric ELEVATE SLi Battery-Powered Stick/TIG Welder

K4706-1

The Lincoln Electric ELEVATE SLi is a cordless battery-powered DC Stick and TIG welding machine designed for construction, fabrication, maintenance and repair work where access to utility power is limited. The internal lithium iron phosphate battery allows full welding operation without an external power source, while the built-in charging system uses standard 120V input power.

The ELEVATE SLi delivers up to 145 amps for both Stick and DC TIG welding. Stick output ranges from 20–145 amps and TIG output ranges from 4–145 amps. Lincoln Electric rates the machine at 145 amps at 25.8 volts for Stick and 145 amps at 15.8 volts for TIG.

The machine supports E6010 and E7018 electrodes up to 5/32 in. and includes Touch Start TIG functionality. Lincoln Electric Chopper Technology, adjustable Hot Start and adjustable Arc Force are designed to improve arc starting, control penetration and maintain a smooth DC welding arc.

The internal battery management system allows the welder to charge from a 120V wall outlet while remaining ready for welding. During an arc, welding power is supplied by the internal battery, and charging resumes when the arc stops. Fan-As-Needed circuitry, environmentally coated PC boards and an IP23S enclosure are designed for field durability.

The K4706-1 base package includes the ELEVATE SLi power source, 200A electrode holder and cable, work cable and clamp, adjustable shoulder strap and 120V input cord.

Key Features

• Battery-powered DC Stick and DC TIG welding
• 20–145A Stick output range
• 4–145A TIG output range
• 145A rated output for both Stick and TIG
• Internal lithium iron phosphate battery
• Built-in 120V charging system
• Charge-while-welding battery management
• Touch Start TIG
• E6010 and E7018 capability
• Supports electrodes up to 5/32 in.
• Lincoln Electric Chopper Technology
• Adjustable Hot Start
• Adjustable Arc Force
• Fan-As-Needed circuitry
• IP23S enclosure rating
• 33 lb. net weight

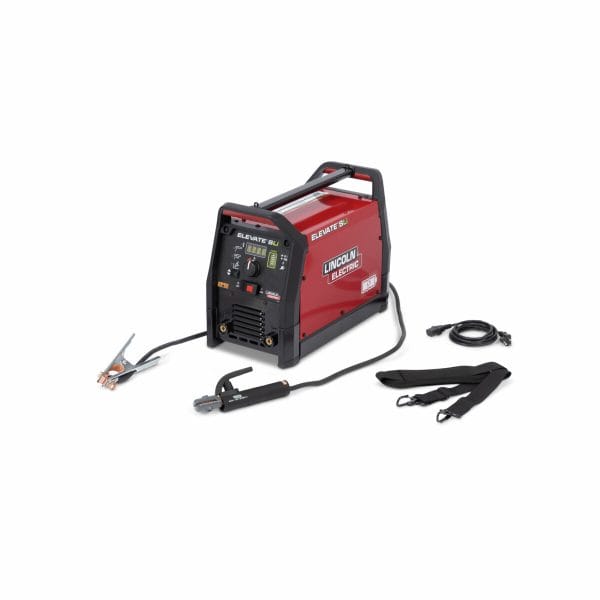

Included Equipment – K4706-1

• ELEVATE SLi battery-powered welder
• 200A industrial electrode holder, cable and Twist Mate plug
• Work cable and clamp with Twist Mate plug
• Fully adjustable shoulder strap
• 120V input cord
