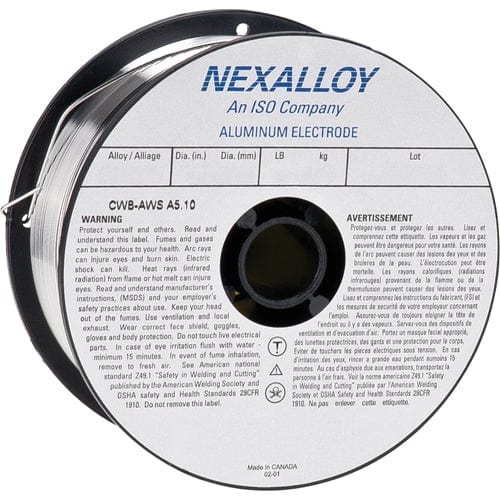

NEXALLOY ER5356 Aluminum Spool, 16lb

NEXALLOY ER5356 Aluminum Spool, 16lb

5356XX-16

ER5356 is a 5% magnesium aluminum filler metal, designed for MIG and TIG welding applications. Available in both spools and cut lengths, it features higher levels of magnesium (Mg), titanium (Ti), and manganese (Mn), along with added chromium and reduced silicon. These enhancements significantly improve corrosion resistance, making ER5356 the preferred choice for welding aluminum exposed to saltwater or marine environments.

Recommended for use with 5050, 5052, 5083, 5356, 5454, and 5456 alloys, ER5356 is the second most widely used aluminum filler metal in the industry.

Technical Specifications:

• Melting Range: 1060°F – 1175°F
• Density: 0.096 lbs/ci
• Typical Tensile Strength: 38,000 psi
• Post-Anodizing Color: White

Known for its high strength, durability, and excellent corrosion resistance, ER5356 is an ideal choice for marine, structural, and general aluminum fabrication applications.

Nexalloy ER5356 conforms to: AWS A5.10, CWB, and ABS

NEXALLOY ER5356 ADVANTAGES:

• Superior wire surface finish ensures trouble free welding
• Exceptional cleanliness ensures sound weldments
• Unique diameter control for consistent feeding, robotic or manual
