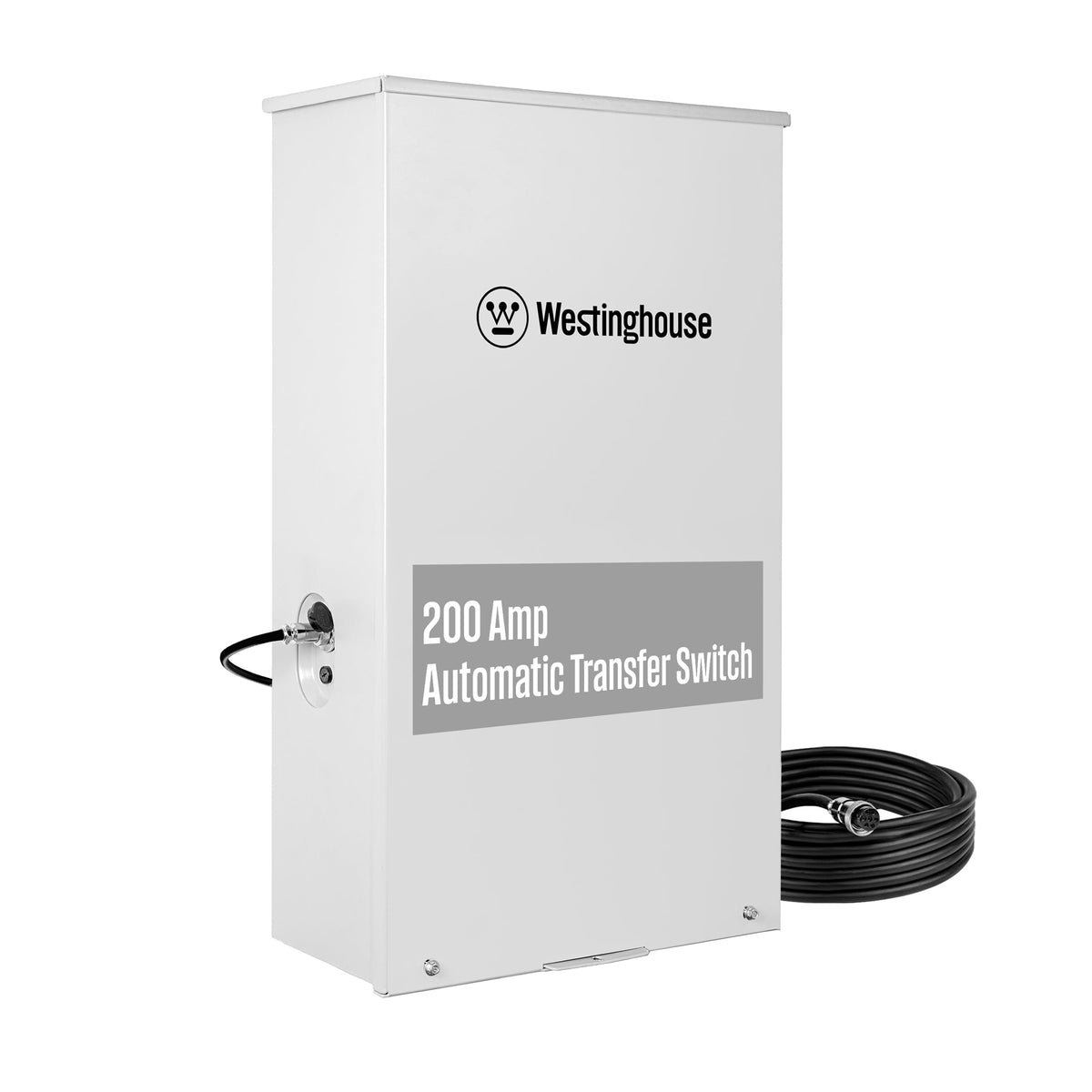

Westinghouse WATS200 200 Amp Automatic Transfer Switch

Automatic whole-home backup for compatible Westinghouse generators

The Westinghouse WATS200 200 Amp Automatic Transfer Switch gives compatible Westinghouse Smart Switch Ready generators a practical path to automatic standby power. It monitors utility and generator power, starts the connected generator when utility power fails, transfers power to the home, and switches back when utility power returns.

Initial offering: 30 units available while supplies last.

Canadian certification

The WATS200 is cETL certified for Canada. The product certification label identifies compliance with ANSI/UL 1008 and certification to CSA C22.2 No. 178.1, the Canadian standard for transfer switch equipment. Installation must be completed in accordance with applicable Canadian and local electrical requirements by a qualified electrician.

Key benefits

• Converts compatible Westinghouse generators to automatic standby operation
• Automatically starts and stops the generator during a utility outage
• 200 A continuous, service-entrance-rated transfer switch
• 120/240 VAC, single-phase, open-transition operation
• Built-in A/C load management for up to four air-conditioner loads
• Charges the connected generator battery while on utility power
• NEMA 3R aluminum enclosure rated for indoor or outdoor installation
• cETL certified for Canada to CSA C22.2 No. 178.1; conforms to ANSI/UL 1008
• Includes a 25 ft. ST control cable
• Backed by a 5-year limited warranty

Compatible Westinghouse generators

Compatible with the following Westinghouse generator models. Confirm that your exact generator has the Smart Switch Ready outlet before ordering.

*Models marked with an asterisk require 240 V operation according to the compatibility information supplied.

What’s included

• WATS200 automatic transfer switch
• 25 ft. ST control cable
• Instruction manual
• Fault-current label

Installation and compatibility notes

• Qualified electrician installation is required for code compliance.
• Generator, generator power cord and power inlet box are sold separately.
• Verify generator compatibility and local electrical requirements before purchase.

Specifications

Need help confirming compatibility? Contact Crossfire before ordering with your generator model and Smart Switch Ready outlet details.
