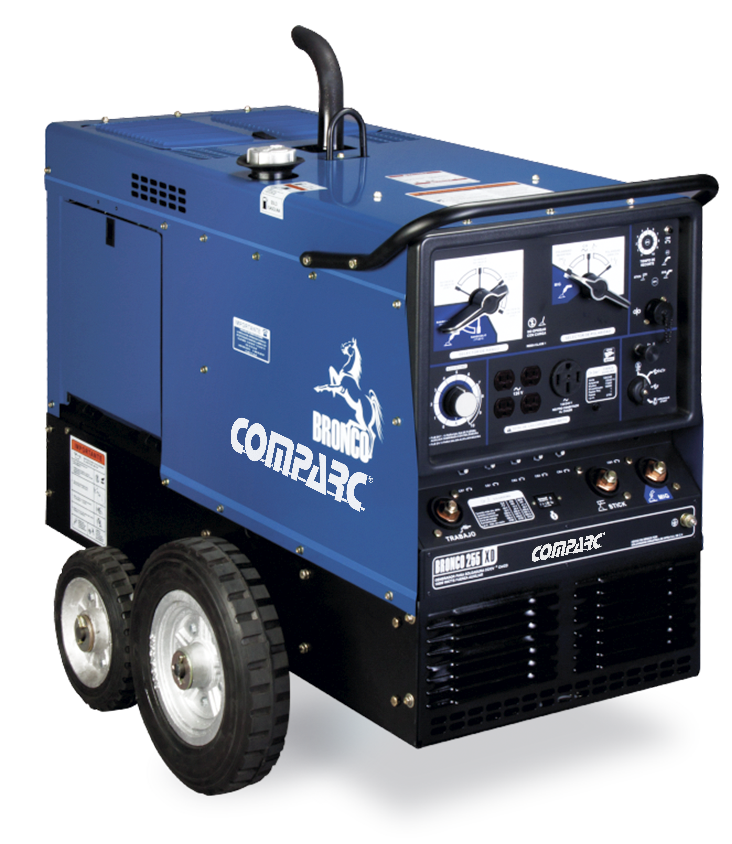

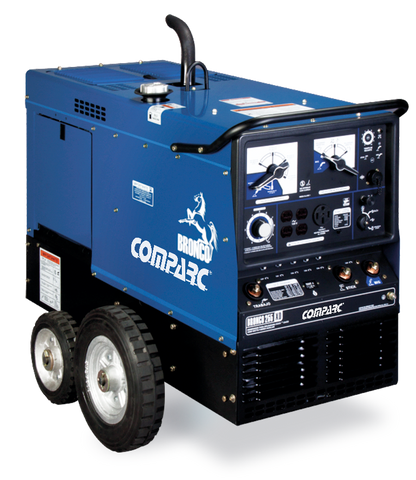

BRONCO 255 Engine Driven Welder
Please contact for freight rates prior to purchase.
Features
- Low oil pressure indicator light
- Fuel access at the top
- Closed cabinet for increased engine protection and less noise
- Automated idle system, saves fuel when welding
- Directional muffler that allows guiding the exhaust gas
- Fine-tuned electric current control
- Fuel level indicator
- 10,500 watt continuous auxiliary output, 11,500 watts
- Hour meter
Engine Characteristics
- Cylinders: Two
- Cooling: Air
- Engine: KOHLER COMMAND PRO
- Model: CH730
- Power: 23HP @ 3600 RPM
- Fuel: Gasoline, low fuel 7.2L/h consumption
- Capacity: 40L fuel tank
- Starter: Electric 12V battery
- Auto idle

Optional Accessories
- Voltage sensing wire feeder S 512 P
- Running gear and handle
Rated Output |
100% Duty Cycle 250A @ 25V, AC/DC |
Part Number |
304-855 |
Range |
45-250 Amps |
Engine |
27 HP @ 3600 RPM |
Dimensions |
H. 36” (914 mm) W. 22.0” (559 mm) L. 44” (1118 mm) |
Weight |
Net: 593 lb (269 kg) |
