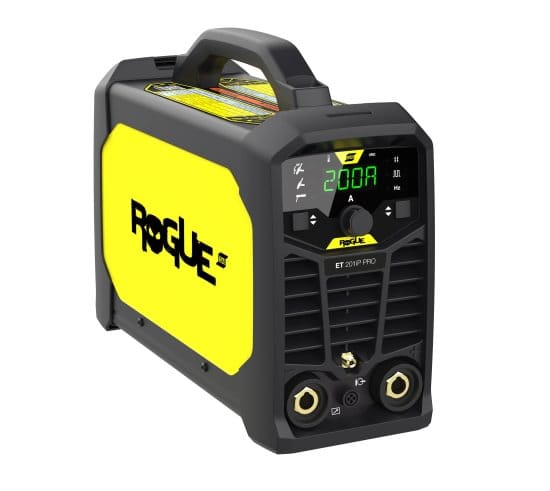

ESAB Rogue ES 201iP PRO Stick/TIG Welder – 120/230V

ESAB Rogue ES 201iP PRO Stick/TIG Welder – 120/230V

0705002022

The ESAB Rogue ES 201iP PRO is a compact professional DC Stick/TIG power source built for fabrication, construction, agricultural equipment, repair and maintenance. Product number 0705002022 operates from either 120V or 230V single-phase input power.

The Rogue ES 201iP PRO provides up to 200 amps on 230V input and up to 140 amps on 120V input. It supports Stick, Pulse Stick, Live TIG and Pulsed TIG welding.

On 230V input, Stick output is rated at 200 amps at 28V at 25% duty cycle, 129 amps at 25.2V at 60%, and 100 amps at 24V at 100%. TIG output is rated at 200 amps at 18V at 25%, 129 amps at 15.2V at 60%, and 100 amps at 14V at 100%.

On 120V input, Stick output is rated at 110 amps at 24.4V at 25% duty cycle, 70 amps at 22.8V at 60%, and 55 amps at 22.2V at 100%. TIG output reaches 140 amps at 16V at 25% duty cycle.

Pulse SMAW provides additional control over heat input, distortion and spatter, while Power Factor Control helps maintain a stable arc when working from fluctuating power or long extension cables. A dedicated 6010 mode, adjustable Arc Force and Hot Start, IP23S enclosure and generator compatibility make the machine suitable for both shop and field use.

Key Features

• 120/230V dual-voltage single-phase input
• 10–200A output range on 230V
• 10–140A output range on 120V
• Stick, Pulse Stick, Live TIG and Pulsed TIG processes
• 200A at 28V, 25% duty cycle for Stick on 230V
• 129A at 25.2V, 60% duty cycle for Stick on 230V
• 100A at 24V, 100% duty cycle for Stick on 230V
• 200A at 18V, 25% duty cycle for TIG on 230V
• 140A at 16V, 25% duty cycle for TIG on 120V
• Pulse SMAW functionality
• 6010 Stick mode
• Power Factor Control
• Generator compliant, 7kW recommended
• IP23S enclosure
• 78VDC open-circuit voltage
• 18.2 lb. net weight
