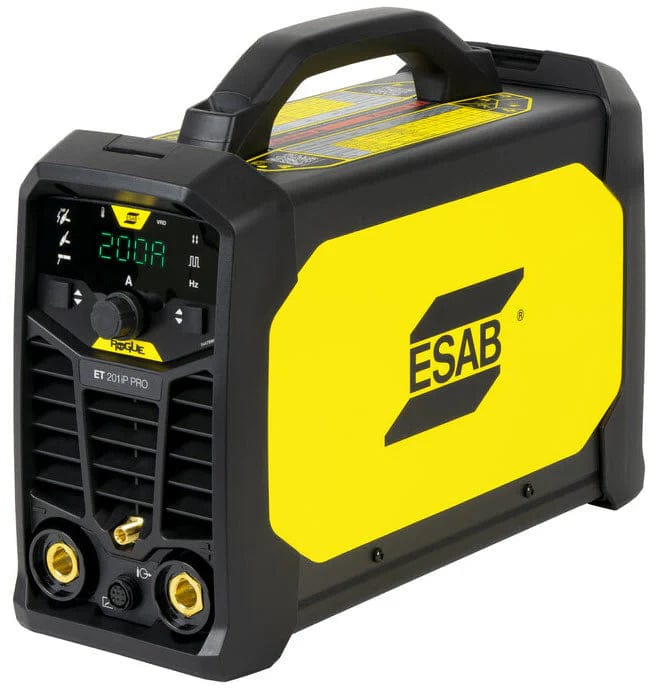

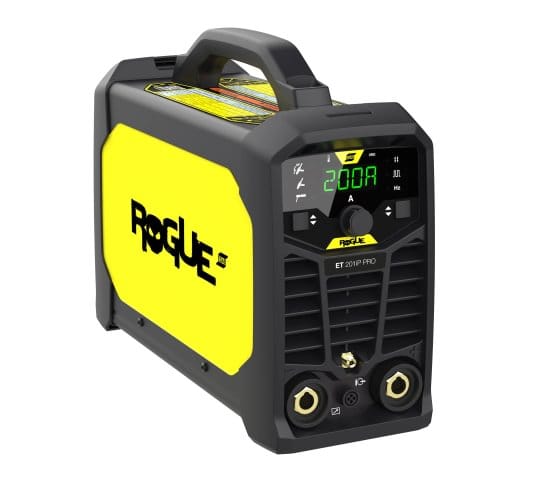

ESAB Rogue ET 201iP PRO HF TIG/Stick Welder – 115/230V

ESAB Rogue ET 201iP PRO HF TIG/Stick Welder – 115/230V

0705002023

The ESAB Rogue ET 201iP PRO is a compact professional high-frequency-start DC TIG and Stick welder designed for fabrication, repair and maintenance, agricultural equipment, civil construction and food-and-beverage applications. Product number 0705002023 operates from 115/230V single-phase input power.

The machine delivers up to 200 amps on 230V input. Stick output on 230V is rated at 200 amps at 28.0 volts at 25% duty cycle, 129 amps at 25.2 volts at 60%, and 100 amps at 24.0 volts at 100%. TIG output on 230V is rated at 200 amps at 18.0 volts at 25%, 129 amps at 15.2 volts at 60%, and 100 amps at 14.0 volts at 100%.

On 120V input, Stick output is rated at 110 amps at 24.4 volts at 25% duty cycle, 70 amps at 22.8 volts at 60%, and 55 amps at 22.2 volts at 100%. TIG output reaches 140 amps at 15.6 volts at 25% duty cycle, 90 amps at 13.6 volts at 60%, and 70 amps at 12.8 volts at 100%.

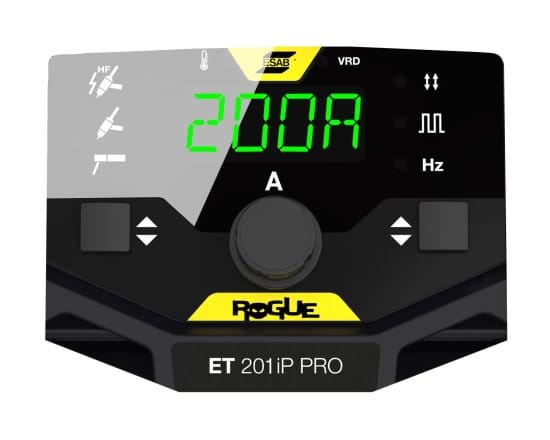

Rogue ET provides high-frequency TIG start, adjustable pre-flow, start current, ramp-up, ramp-down, finish current and post-flow settings. Pulsed TIG frequency is adjustable from 0.2–500 Hz, while Pulse SMAW operates from 0.2–100 Hz. Power Factor Correction helps maintain a stable arc when using long input cables or fluctuating power.

The 0705002023 package includes the power source, 10 ft. mains cable and plug, shoulder strap, 13 ft. SR-B 26 TIG torch with flexible neck and potentiometer, TIG wear parts including tungsten, electrode holder and lead, work lead and clamp, gas regulator and 115/230V power adapter.

Key Features

• High-frequency-start DC TIG
• Pulsed TIG, 0.2–500 Hz
• Stick and Pulse Stick, 0.2–100 Hz
• 115/230V single-phase input
• 10–200A current range depending on process
• 200A maximum output
• 78VDC open-circuit voltage
• Power Factor Correction
• Adjustable TIG pre-flow, start current, ramp, finish current and post-flow
• 2T/4T torch-control modes
• Compatible with optional current-adjusting foot pedal
• IP23S enclosure
• CSA certified
• 21.2 lb. net weight
