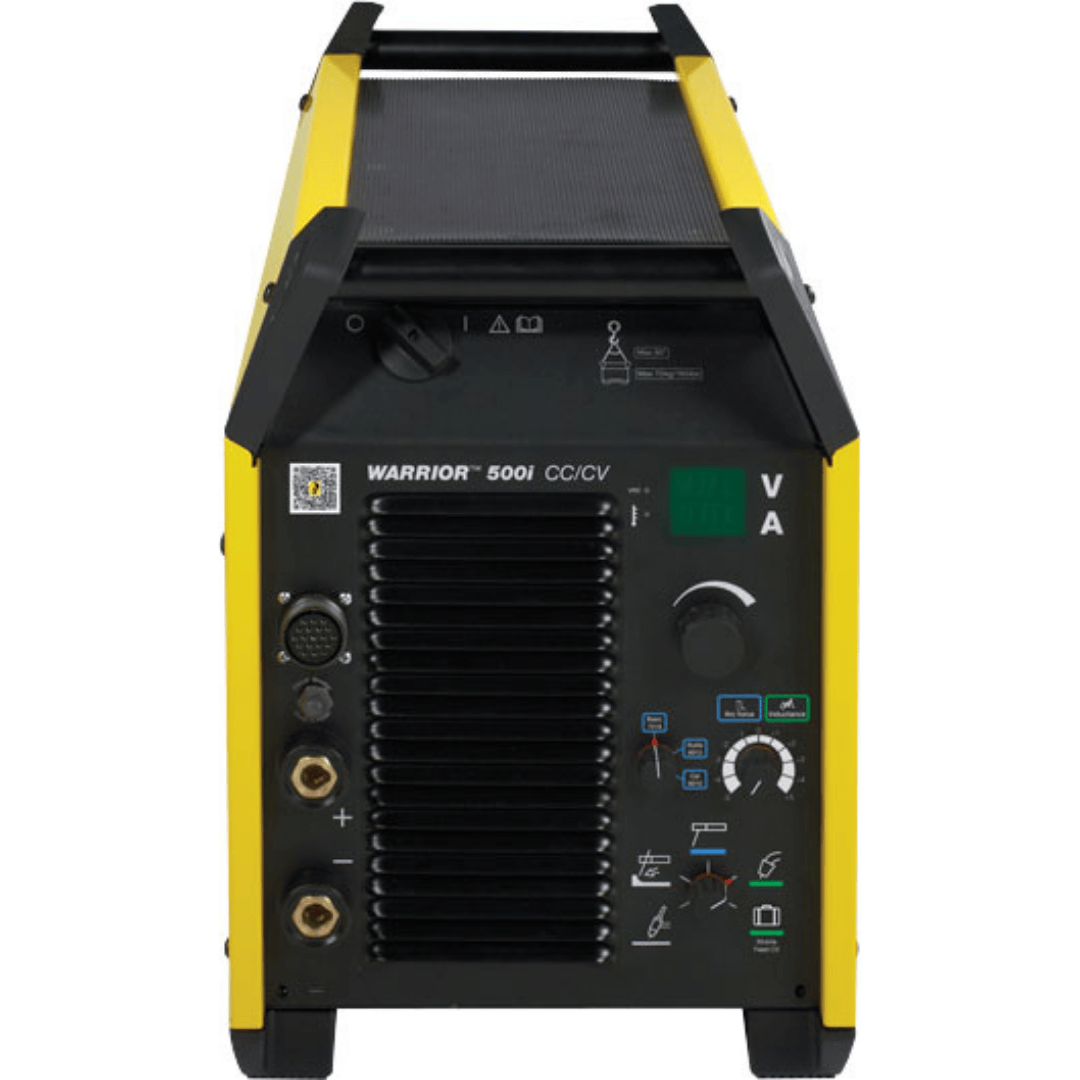

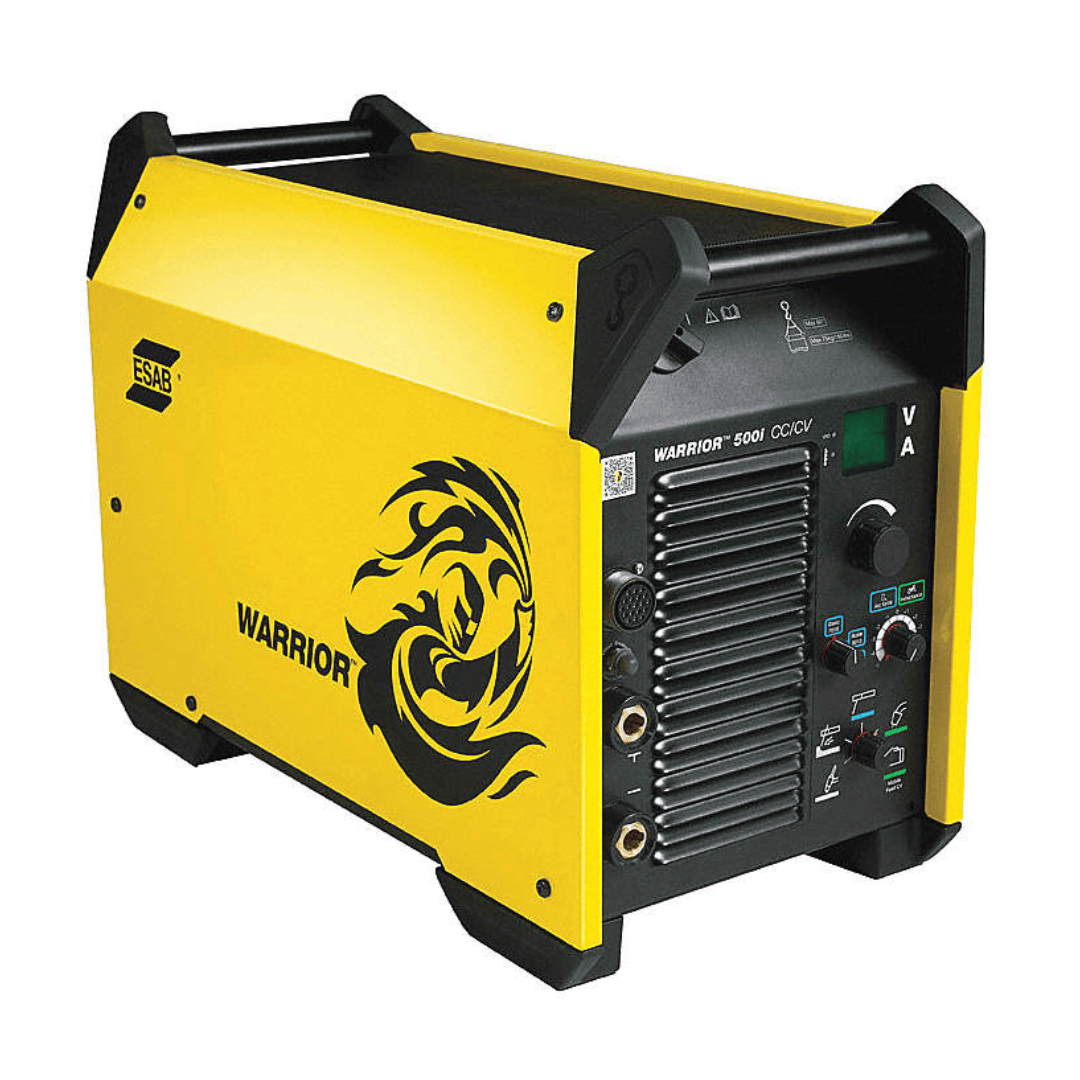

ESAB Warrior 500i CC/CV Multiprocess Welder – 575V Pre-Set

ESAB Warrior 500i CC/CV Multiprocess Welder – 575V Pre-Set

0465350887

The ESAB Warrior 500i CC/CV is a heavy-duty multiprocess welding power source designed for marine and offshore work, steel erection, structural fabrication, industrial manufacturing, hardfacing, maintenance, mobile equipment, pressure vessels and pipeline applications. Product number 0465350887 is the 575V pre-set, three-phase power-source-only configuration.

The Warrior 500i supports MIG/MAG, Stick and TIG welding with up to 500 amps of output. MIG/MAG and Stick output can be set from 16–500 amps, while TIG output ranges from 5–500 amps.

At 60% duty cycle, the machine delivers 500 amps at 39 volts for MIG/MAG, 500 amps at 40 volts for Stick and 500 amps at 30 volts for TIG. At 100% duty cycle, it provides 400 amps at 34 volts for MIG/MAG, 400 amps at 36 volts for Stick and 400 amps at 26 volts for TIG.

The Warrior platform is designed for demanding indoor and outdoor environments with an IP23 enclosure, glove-friendly controls and high-duty-cycle performance. The 500i has an 89% efficiency rating at maximum current, a 0.91 power factor and a 30-watt energy-save mode.

Product number 0465350887 is the power source only. Compatible feeders include the Robust Feed PRO Offshore, Warrior Feed 404HD and Warrior DualFeed. ESAB also offers optional trolleys, remote controls, wheel kits, interconnection cables and air-carbon-arc gouging accessories for the Warrior system.

Key Features

• Heavy-duty CC/CV multiprocess welding power source
• 575V pre-set, three-phase configuration
• 50/60 Hz input frequency
• MIG/MAG output range: 16–500A
• Stick output range: 16–500A
• TIG output range: 5–500A
• MIG/MAG: 500A at 39V, 60% duty cycle
• MIG/MAG: 400A at 34V, 100% duty cycle
• Stick: 500A at 40V, 60% duty cycle
• Stick: 400A at 36V, 100% duty cycle
• TIG: 500A at 30V, 60% duty cycle
• TIG: 400A at 26V, 100% duty cycle
• 56VDC open-circuit voltage
• 28VDC open-circuit voltage with VRD activated
• 89% efficiency at maximum current
• 0.91 power factor at maximum current
• 30W energy-save mode
• IP23 enclosure rating
• CE and CSA certified
• 130 lb. net weight

Product Number 0465350887

• Warrior 500i CC/CV power source only
• 575V pre-set configuration
• Wire feeder, torch, trolley, cables and remote controls sold separately
