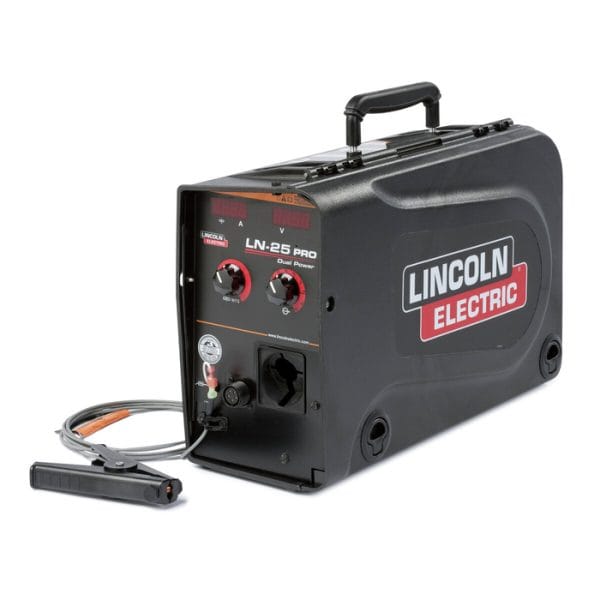

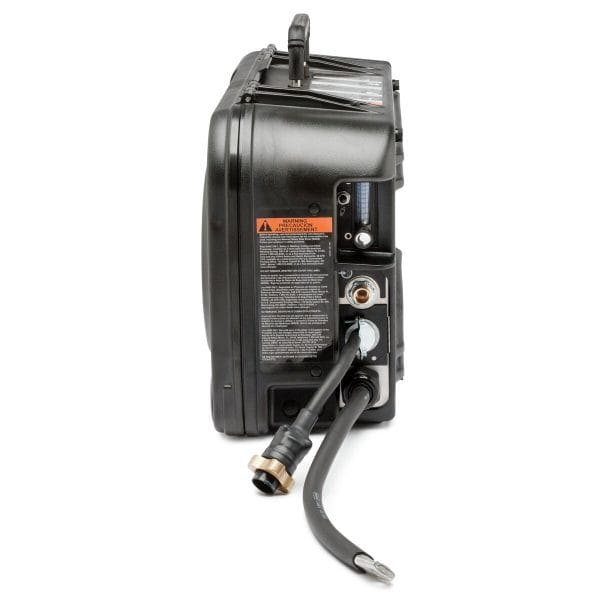

Lincoln Electric LN-25 PRO Dual Power Wire Feeder

Lincoln Electric LN-25 PRO Dual Power Wire Feeder

K2614-6

The Lincoln Electric LN-25 PRO Dual Power is a portable industrial semiautomatic wire feeder designed for MIG and flux-cored welding in construction, shipbuilding, rental fleets, pipe work and metal fabrication. Stock number K2614-6 can operate as an across-the-arc voltage-sensing feeder or through a 14-pin control cable.

The feeder accepts 15–110 VDC when operated across the arc or 24–42 VAC when powered through the control cable. It is rated for a 450 amp welding circuit at 60% duty cycle and provides a wire-feed-speed range of 50–700 IPM.

Wire capacity is .023–1/16 in. for solid wire, .030–5/64 in. for cored wire and .035–1/16 in. for aluminum wire. The MAXTRAC wire drive system uses a heavy-duty cast-aluminum drive assembly, while tachometer feedback helps maintain accurate wire-feed speed.

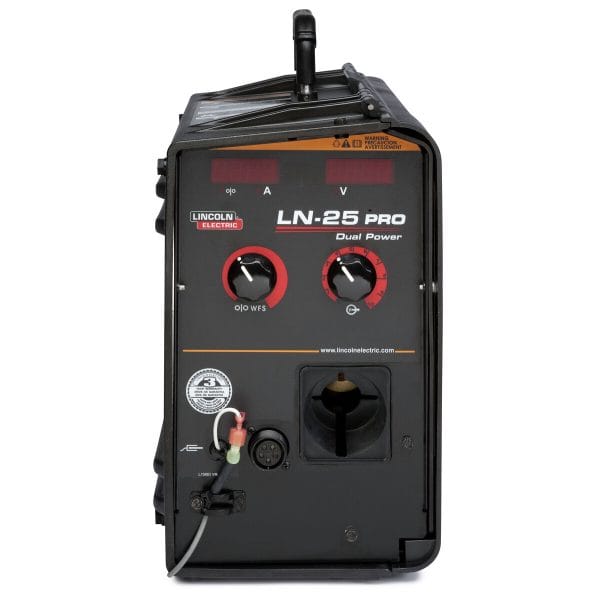

Operator features include digital wire-feed-speed/amperage and voltage displays, a trigger interlock switch, gas purge control, flow-meter valve and remote voltage control when used through the appropriate control connection. Potted PC boards help protect electronics from moisture and corrosion, and the flame-resistant case is replaceable.

The K2614-6 base model includes an internal contactor, gas solenoid, flow meter, 15 ft. arc-sensing lead and clip, and two gun bushings. Welding gun, drive-roll kit, control cable and weld power cables are selected separately for the application.

Key Features

• Portable industrial MIG and flux-cored wire feeder
• Dual-power operation
• 15–110 VDC across-the-arc input
• 24–42 VAC control-cable input
• 450A welding-circuit rating at 60% duty cycle
• 50–700 IPM wire-feed-speed range
• .023–1/16 in. solid-wire capacity
• .030–5/64 in. cored-wire capacity
• .035–1/16 in. aluminum-wire capacity
• MAXTRAC cast-aluminum wire-drive system
• Tachometer wire-speed feedback
• Digital wire-feed-speed/amperage display
• Digital voltage display
• Trigger interlock
• Gas purge and flow-meter controls
• 14-pin control-cable input
• Potted PC boards
• Replaceable flame-resistant case
• Approximately 38 lb. net weight

Stock Number K2614-6 Includes

• Internal contactor
• Gas solenoid
• Flow meter
• 15 ft. arc-sensing lead and clip
• K1500-2 gun bushing installed
• K1500-1 gun bushing supplied loose
