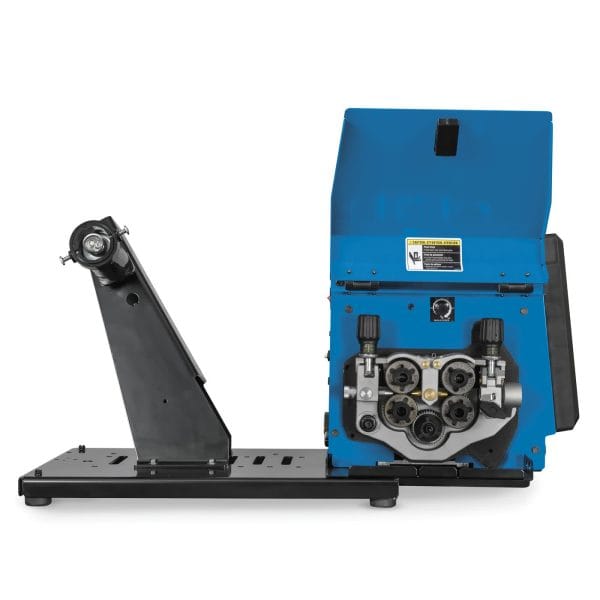

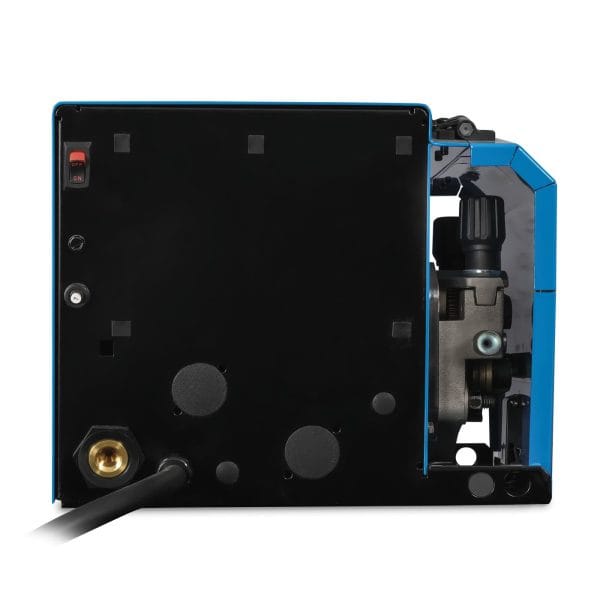

Miller 20 Series Basic Wire Feeder

Miller 20 Series Basic Wire Feeder

301499

The Miller 20 Series Basic is a constant-speed industrial wire feeder designed for high-duty-cycle MIG and flux-cored welding applications. Stock number 301499 is the feeder-only basic model.

The feeder operates from 24 VAC, 3.5 amp, 50/60 Hz control power and provides a wire-feed-speed range of 75–750 IPM. It accepts wire diameters from .023 in. through 5/64 in. and is rated for a 500 amp, 100 volt welding circuit at 100% duty cycle.

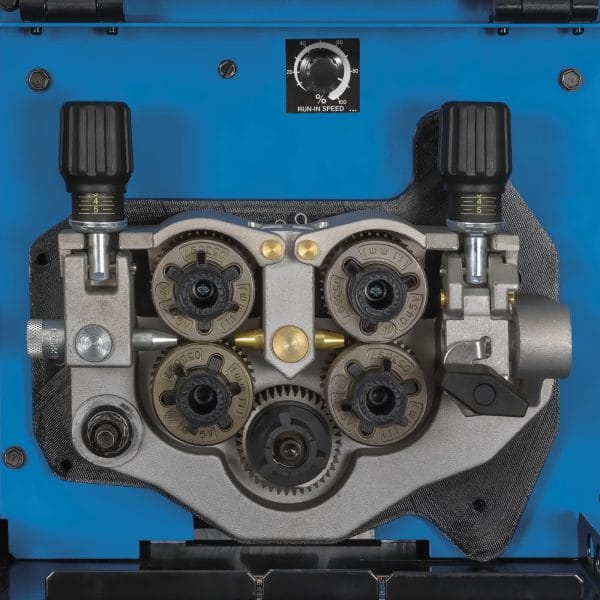

Four gear-driven drive rolls provide smooth, positive wire feeding, while trigger hold reduces operator fatigue during long welds. On-board burnback and motor-ramp control improve arc starting and stopping performance across a range of compatible CV/DC welding power sources.

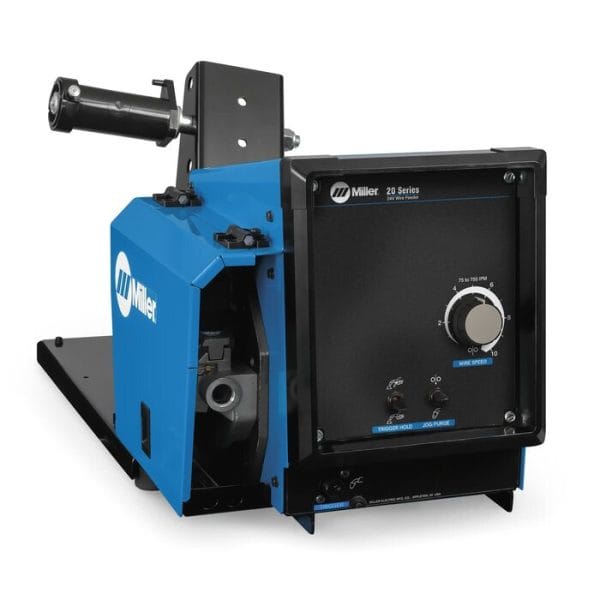

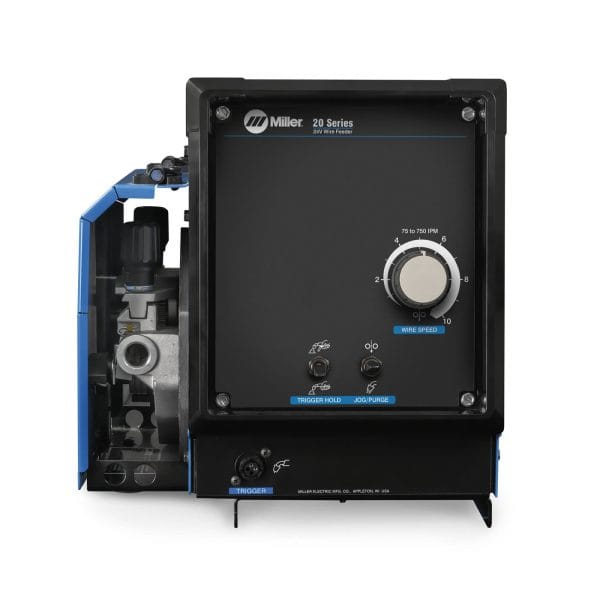

The 16-gauge sheet-metal housing is designed for rough industrial service. The feeder includes wire-speed control, jog/purge and trigger-hold functions. Digital meter, remote voltage control and adjustable run-in are optional field upgrades on this basic model and are standard only on the separate digital model.

Stock number 301499 is the feeder-only configuration. Welding gun, drive-roll kit, flowmeter regulator, gas hose, feeder weld cable and other welding accessories are selected separately for the application.

Key Features

• Constant-speed industrial wire feeder
• MIG and flux-cored welding
• 24 VAC, 3.5A, 50/60 Hz input
• 75–750 IPM wire-feed-speed range
• .023–5/64 in. wire-diameter capacity
• 500A at 100V, 100% input welding-circuit rating
• Four gear-driven drive rolls
• Trigger hold
• Burnback and motor-ramp control
• Jog and purge controls
• Quick-change drive rolls
• 16-gauge sheet-metal housing
• Optional digital meter and remote voltage control
• Optional adjustable run-in control
• Optional feeder cart and turntable
• 46 lb. net weight

Stock Number 301499

• 20 Series Basic feeder only
• Digital meter, remote voltage control and adjustable run-in are not standard on this model
• Welding gun and drive-roll kit are not included with stock number 301499
