Miller Spectrum 375 X-TREME Plasma Cutter – 120/240V

Miller Spectrum 375 X-TREME Plasma Cutter – 120/240V

907529

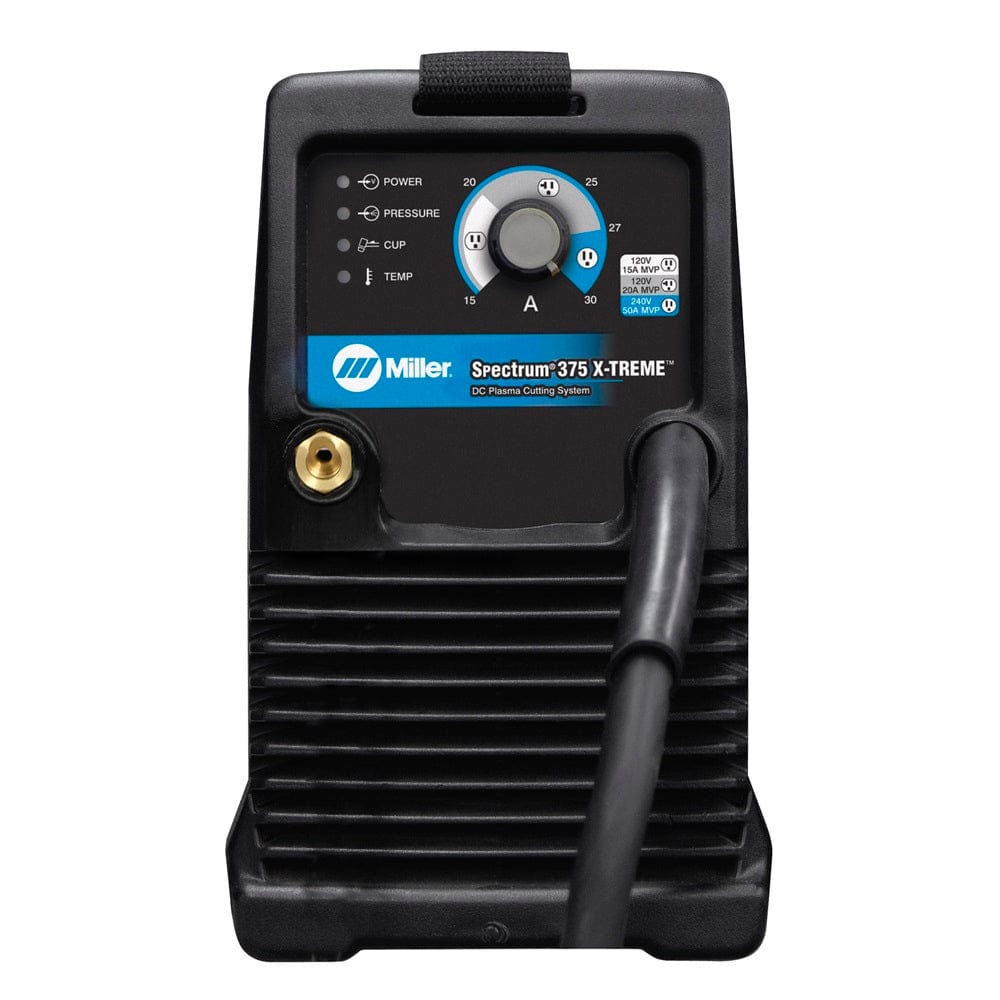

The Miller Spectrum 375 X-TREME is a compact air plasma cutting system designed for maintenance, light construction, prototyping, body shops, fabrication and HVAC ductwork. Auto-Line technology allows the machine to connect to 120V or 240V single-phase input power without relinking the power source.

On 240V input, the Spectrum 375 X-TREME is rated at 30 amps at 92 VDC with a 40% duty cycle and provides a rated mild-steel cutting capacity of 3/8 in. with a maximum sever capacity of 5/8 in. On 120V input, output varies by available branch circuit capacity.

Automatic air regulation compensates for input-pressure variation to maintain recommended torch pressure, while Auto-Refire automatically controls the pilot arc when cutting expanded metal or multiple pieces. Line-voltage compensation helps maintain cutting performance during input-power fluctuations.

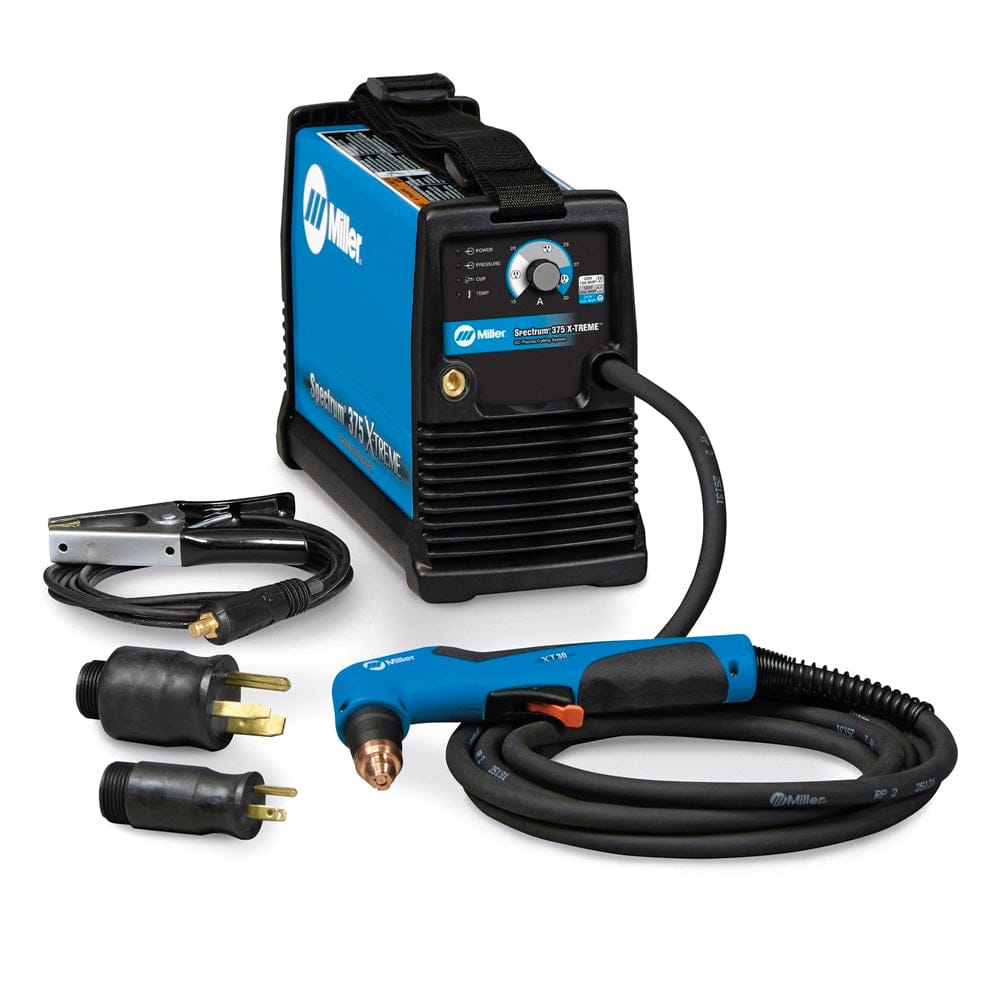

The 907529 package includes the Spectrum 375 X-TREME power source, XT30 hand-held torch with 12 ft. cable, heavy-duty work clamp with 12 ft. cable, 10 ft. MVP power cord, 120V and 240V MVP plugs, X-CASE, shoulder strap and a starter consumables box.

Key Features

• Air plasma cutting
• 120–240V single-phase Auto-Line input
• 30A maximum rated output
• 3/8 in. rated mild-steel cut capacity
• 5/8 in. maximum sever capacity
• Automatic air regulation
• Auto-Refire pilot arc control
• Line-voltage compensation
• LED status and troubleshooting indicators
• Compatible with engine-driven welder/generators with 240V receptacle and 4 kW or more
• 19 lb. weight with torch

Included Equipment

• Spectrum 375 X-TREME power source
• XT30 hand-held torch with 12 ft. cable
• Heavy-duty work clamp with 12 ft. flexible cable and quick connect
• X-CASE
• 10 ft. MVP power cord
• 5-15P 120V/15A MVP plug
• 6-50P 240V/50A MVP plug
• Shoulder strap
• Consumables box with two electrodes, two tips, deflector and air fitting
