Miller Spectrum 625 X-TREME Plasma Cutter – 120/240V

Miller Spectrum 625 X-TREME Plasma Cutter – 120/240V

907579

The Miller Spectrum 625 X-TREME is a portable air plasma cutting and gouging system designed for maintenance, light construction, prototyping, body shops and fabrication work. Auto-Line technology allows the machine to connect to 120V or 240V single-phase input power without internal changes.

On 240V input, the Spectrum 625 X-TREME is rated at 40 amps at 140 VDC with a 60% duty cycle and provides a rated mild-steel cutting capacity of 5/8 in. with a maximum sever cut of 7/8 in. On 120V input, output is automatically reduced based on the available branch circuit.

Automatic air regulation compensates for pressure variation to maintain recommended torch pressure, while Auto-Refire automatically controls the pilot arc when cutting expanded metal or multiple pieces. Automatic gouging consumable detection adjusts gas pressure when gouging consumables are installed.

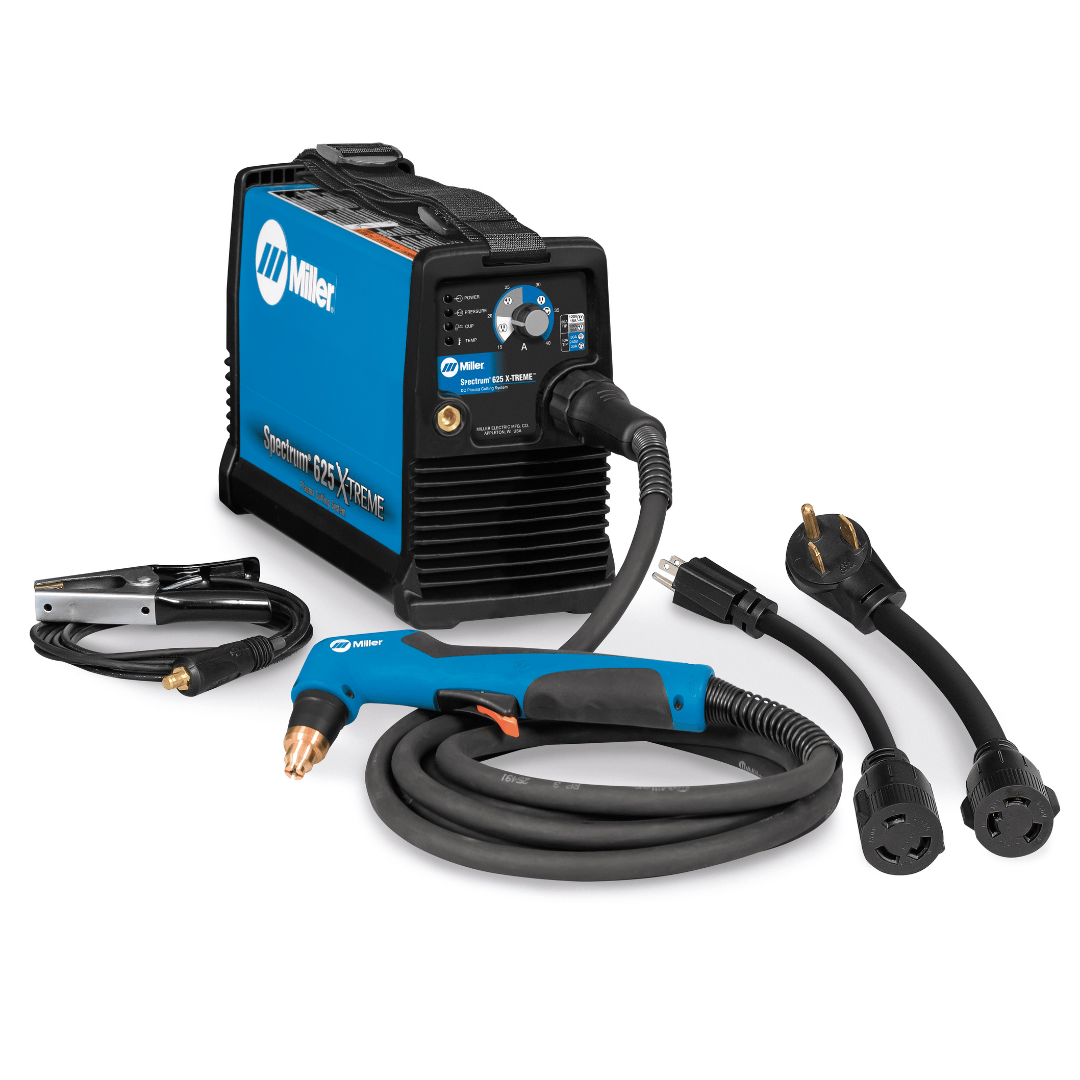

The 907579 package includes the Spectrum 625 X-TREME power source, 12 ft. XT40 hand-held torch, work clamp and cable, 12 ft. power cord, 120V and 240V MVP adapters, X-CASE, shoulder strap and starter consumables.

Key Features

• Air plasma cutting and gouging
• 120–240V single-phase Auto-Line input
• 40A at 140 VDC, 60% duty cycle on 240V input
• 27A at 91 VDC, 35% duty cycle on 120V/20A input
• 20A at 88 VDC, 60% duty cycle on 120V/15A input
• 5/8 in. rated mild-steel cut capacity
• 7/8 in. maximum sever cut
• Automatic air regulation
• Auto-Refire pilot arc control
• Automatic gouging consumable detection
• Auto postflow
• Line-voltage compensation
• XT40 quick-connect torch
• Generator compatible with 240V receptacle and 4 kW or more
• 21 lb. net weight with 12 ft. torch

Included Equipment

• Spectrum 625 X-TREME power source
• XT40 hand-held torch with 12 ft. cable
• Heavy-duty work clamp with flexible cable and quick connect
• 12 ft. power cord with 240V L6-30P twist-lock plug
• 240V 6-50P MVP adapter
• 120V 5-15P MVP adapter
• X-CASE
• Shoulder strap
• Consumables box with electrodes, 40A tips, 30A tip, drag shield, deflector and air fitting
