Miller Syncrowave 212 AC/DC TIG Welder – Air-Cooled Package

Miller Syncrowave 212 AC/DC TIG Welder – Air-Cooled Package

907911

The Miller Syncrowave 212 is an AC/DC TIG, pulsed DC TIG and Stick welding system designed for custom fabrication, job shops, motorsports, maintenance and repair, light manufacturing and welders developing their TIG skills. The 907911 configuration is the air-cooled ready-to-weld package with a wired RFCS-14 HD foot control.

The Syncrowave 212 operates from 120V or 240V single-phase input power and provides up to 210 amps of AC/DC TIG output, up to 160 amps of Stick output and up to 175 amps of MIG output when equipped with the optional Spoolmate 150 spool gun.

Its 4.3-inch LCD interface works with Auto-Set to guide operators through process, material, thickness, joint type and tungsten selections. Pro-Set provides recommended starting points in manual TIG and Stick modes, while adjustable AC balance and AC frequency provide additional control for aluminum TIG welding. Pulsed DC TIG, DIG control and Adaptive Hot Start are also included.

The machine includes a dedicated Spoolmate 150 receptacle, integrated cable storage and an EZ-Access consumables compartment. A dedicated cooler receptacle supports the optional Coolmate 1S if the system is later converted to a water-cooled TIG configuration.

Key Features

• AC/DC TIG, pulsed DC TIG and DC Stick welding
• Optional MIG capability with Spoolmate 150 spool gun
• 120V or 240V single-phase input
• Up to 210A AC/DC TIG output
• Up to 160A DC Stick output
• Up to 175A MIG output with optional spool gun

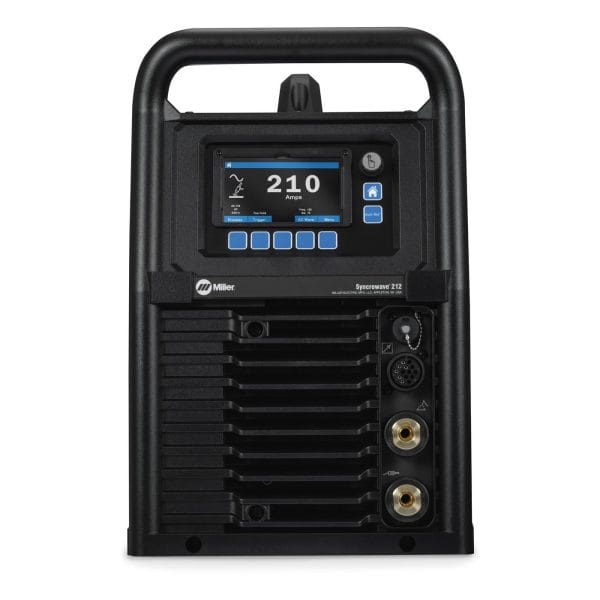

• 4.3-inch LCD interface
• Auto-Set
• Pro-Set for TIG and Stick manual modes
• Adjustable AC balance
• Adjustable AC frequency
• Pulsed DC TIG
• DIG control for Stick welding
• Adaptive Hot Start
• Dedicated Spoolmate 150 receptacle

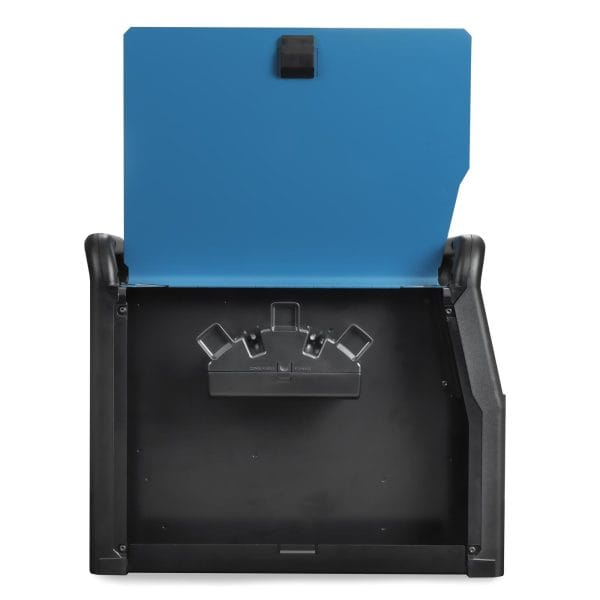

• Integrated cable storage
• EZ-Access consumables compartment
• Dedicated optional cooler power receptacle
• 54 lb. machine-only weight

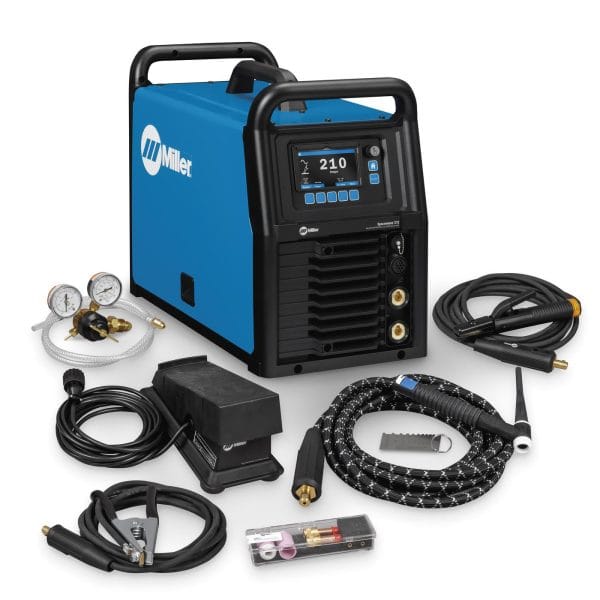

Included Equipment – 907911

• Syncrowave 212 power source
• 12.5 ft. Weldcraft A-150 air-cooled TIG torch with 50 mm flow-through Dinse-style connector
• 15 ft. electrode cable with holder and Dinse-style connector
• 15 ft. work cable with clamp
• RFCS-14 HD wired foot control with 20 ft. cord and 14-pin plug
• Flow gauge regulator for argon/mix
• 5 ft. gas hose
• Weldcraft gas lens accessory kit
• 6.5 ft. 120V power cord
• 6.5 ft. 240V power cord
• Material thickness gauge
