Lincoln Electric | SKU : K5706-1

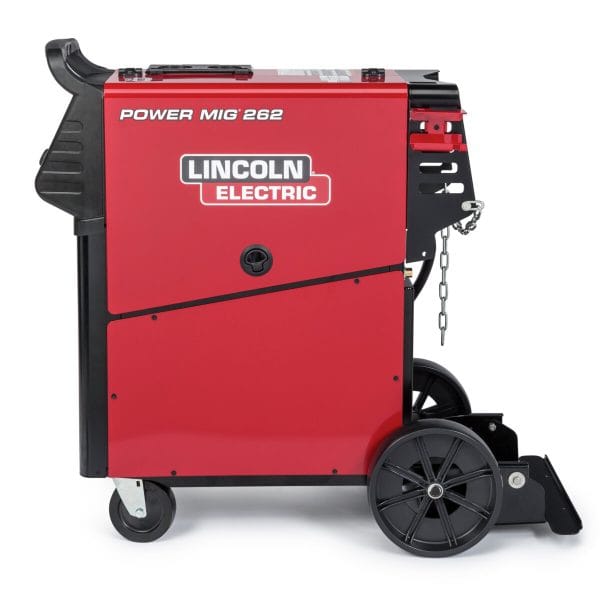

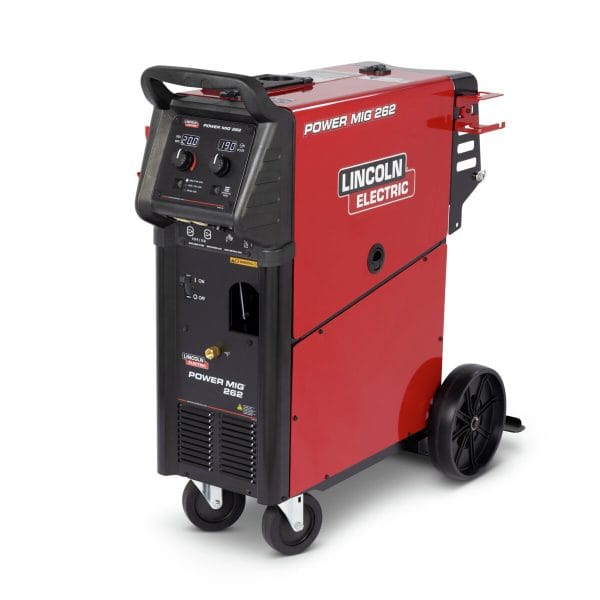

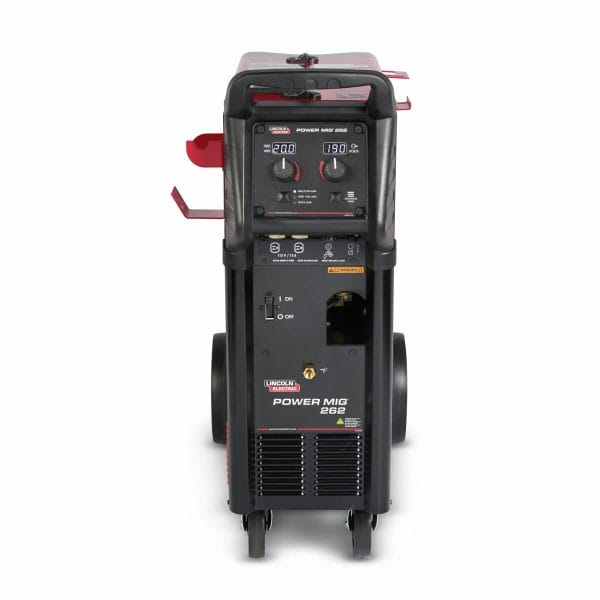

Lincoln Electric POWER MIG 262 MIG Welder – 208/230/460/575V

Name: Lincoln Electric POWER MIG 262 MIG Welder – 208/230/460/575V
Brand: Lincoln Electric
SKU: K5706-1
Price: 6710.0 CAD
Availability: InStock

$6,710.00 CAD

Frais de livraison calculés lors du paiement.

Machine snapshot Full specs ↓

ProcessesMIG · Flux-Cored

Input power208V / 230V / 460V / 575V · Single Phase

AluminumYes – Optional spool gun, push gun or push-pull gun

Warranty3 Years Parts and Labour

Buying for a shop or business? View purchasing support ↓

Canadian SupportHelp before and after purchase Warranty SupportService and warranty information Financing AvailableOptions on eligible purchases Shipping & FreightDelivery guidance for equipment orders

Delivery and Shipping

Standard shipping rates apply, does not qualify for free shipping offers.

Description

Lincoln Electric POWER MIG 262 MIG Welder – 208/230/460/575V

K5706-1

The Lincoln Electric POWER MIG 262 is a professional MIG and flux-cored welding system designed for metal fabrication, maintenance and repair, auto body and light industrial applications. It delivers up to 300 amps of welding output through a streamlined control interface intended to keep setup straightforward while retaining the durability expected from the POWER MIG platform.

The K5706-1 operates from 208V, 230V, 460V or 575V single-phase input power. Rated output is 230 amps at 26.5 volts with a 60% duty cycle, while the overall welding output range is 5–300 amps. Wire feed speed ranges from 50–700 IPM.

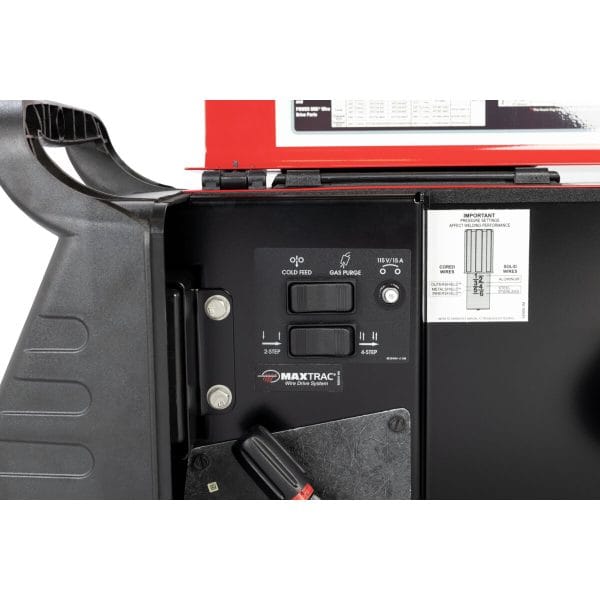

The POWER MIG 262 uses Lincoln Electric’s MAXTRAC industrial wire drive for consistent wire delivery and supports standard MIG, flux-cored, spool-gun and push-pull configurations. Built-in electronics support multiple aluminum feeding methods using compatible push, spool or push-pull guns.

The machine includes a simple seven-segment display with knob controls, advanced settings for run-in, preflow, postflow, spot timer and burnback, two front-mounted 115V auxiliary receptacles, cable management and a side-mounted tool holder.

Key Features

MIG and flux-cored welding
208/230/460/575V single-phase input
5–300A welding output range
230A at 26.5V, 60% duty cycle
50–700 IPM wire feed speed
MAXTRAC industrial wire drive
Seven-segment digital display
Run-in, preflow, postflow, spot timer and burnback controls
Spool-gun capability
Push-pull gun capability
Push-gun aluminum capability
Two 115V front auxiliary receptacles
Integrated cable management and tool holder
250 lb. net weight

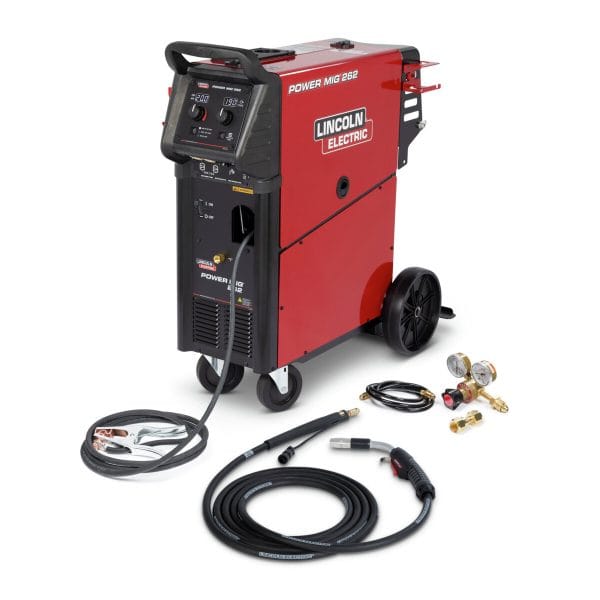

Included Equipment – K5706-1

POWER MIG 262 welding machine
K4530-2 Magnum PRO 250L welding gun
K586-1 adjustable gas regulator and hose
KP1696-1 0.035/0.045 in. drive roll kit
10 ft. work cable with clamp
10 ft. power cable with plug
