Miller Millermatic 252 MIG Welder – 208/240V

Miller Millermatic 252 MIG Welder – 208/240V

907321

The Miller Millermatic 252 is a professional MIG and flux-cored welding system built for fabrication, maintenance, repair, farm, home and light industrial applications.

This 208/240V single-phase model delivers a 30–300 amp output range and is rated at 200 amps at 24 VDC with a 60% duty cycle, or 250 amps at 26.5 VDC with a 40% duty cycle.

The Millermatic 252 combines a heavy-duty aluminum two-drive-roll wire feed system with digital voltage and wire-speed controls, allowing operators to preset parameters before welding. Integrated timers provide adjustable preflow, postflow, burnback, spot and stitch settings.

Auto-Gun Detect automatically recognizes the active MIG, spool or push-pull gun and recalls its voltage, wire feed speed and timer settings. For aluminum work, optional Spoolmate, Spoolmatic and XR push-pull guns connect directly without requiring an additional control module.

The machine also includes Fan-On-Demand cooling, line-voltage compensation, Active Arc Stabilizer and an EZ-Access consumable compartment with parameter chart and storage.

The standard 907321 package includes a 15 ft. MDX-250 MIG gun, work cable and clamp, industrial power cord with plug, regulator and gas hose, factory-installed running gear and cylinder rack, reversible drive rolls and extra contact tips.

Key Features

• MIG and flux-cored welding
• 30–300A output range
• 208/240V single-phase input
• 200A at 24VDC, 60% duty cycle
• 250A at 26.5VDC, 40% duty cycle
• 50–700 IPM wire feed speed

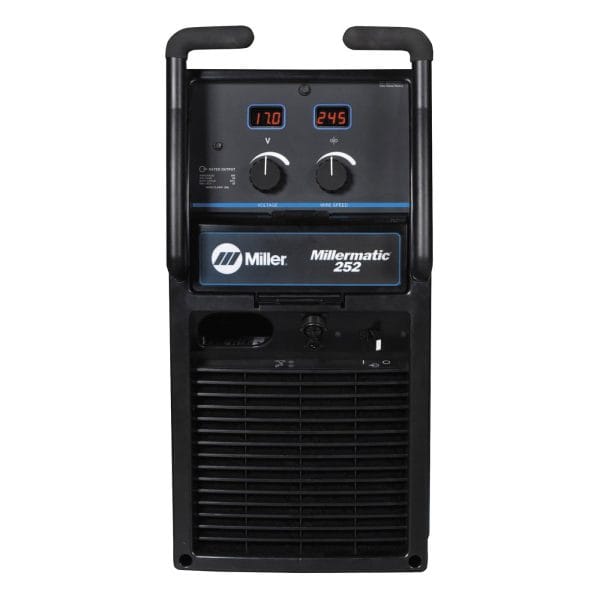

• Digital voltage and wire feed speed displays
• Integrated preflow, postflow, burnback, spot and stitch timers
• Auto-Gun Detect
• Active Arc Stabilizer
• Line-voltage compensation

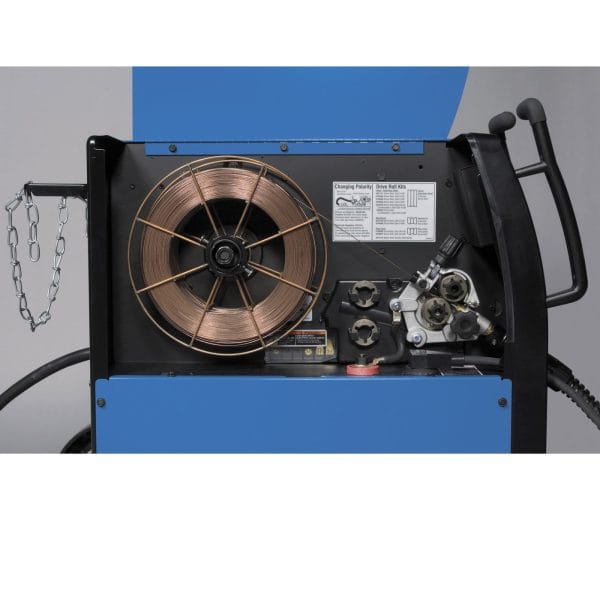

• Heavy-duty aluminum dual-drive-roll system
• Fan-On-Demand cooling
• Direct spool gun compatibility
• Direct push-pull gun compatibility
• EZ-Access consumable compartment
• Factory-installed running gear
• Low cylinder rack

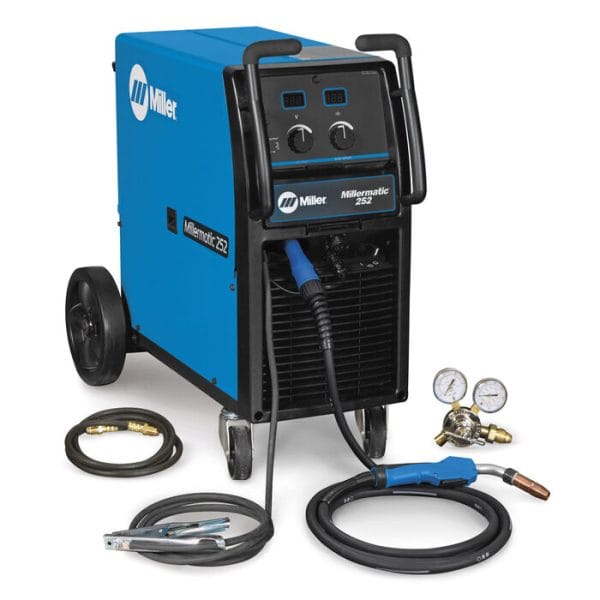

Included Equipment

• Millermatic 252 power source and wire feeder
• 15 ft. MDX-250 MIG gun
• 10 ft. work cable with clamp
• 10 ft. industrial power cord with plug
• Flow gauge regulator
• Gas hose
• Factory-installed lowered running gear
• Cylinder rack
• .030/.035 in. reversible dual-groove drive rolls
• Extra contact tips
